ASRock
ASRock RX7600 SL 8GO graphics card
Refurbished 8 GB GDDR6 graphics card with 2048 stream processors, triple-fan cooling and PCI Express 4.0 x8 interface
- InterfacePCI Express 4.0 x8
- Chipset ManufacturerAMD
- GPU SeriesAMD Radeon RX 7000 Series
- GPURadeon RX 7600
- ArchitectureRDNA 3
- Stream Processors2048
- 8GB GDDR6 memory handles modern textures
- 2048 stream processors drive 1080p gaming performance
- Triple-fan cooler keeps temperatures controlled under load

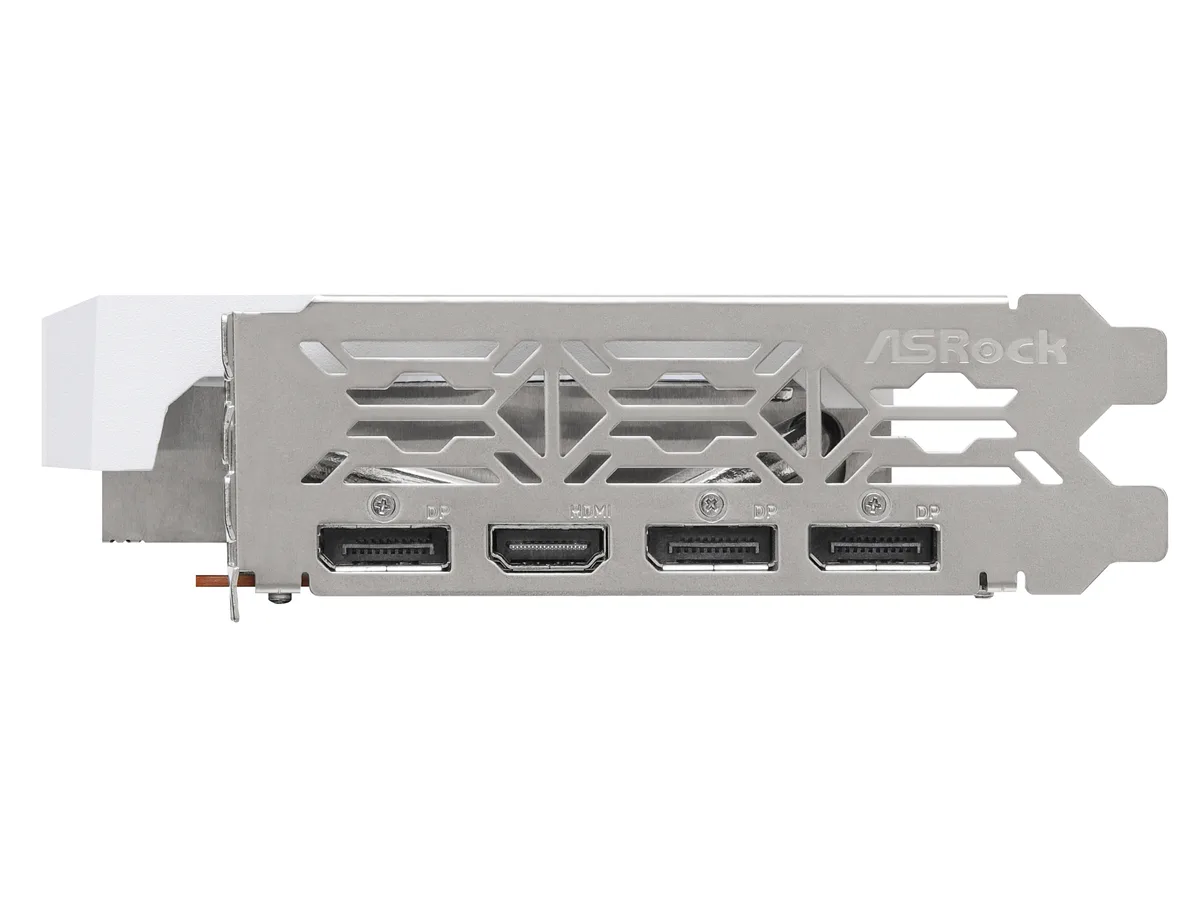

- HDMI 2.1 plus three DisplayPort 1.4 outputs support four displays
- PCI Express 4.0 x8 interface fits compact ATX builds
ASRock Steel Legend RX 7600 8GB
The ASRock Steel Legend Radeon RX 7600 is a mid-range graphics card built on the RDNA 3 architecture with 2048 stream processors. It targets 1080p gaming and multi-monitor productivity setups. The 8GB GDDR6 frame buffer connects across a 128-bit interface. A triple-fan cooler in a silver finish handles the 165W thermal design power.
Upgrade from older 1080p cards
Moving up from a previous-generation 4GB or 6GB model makes sense when current titles exceed the available video memory or when DirectX 12 Ultimate features are required. The PCI Express 4.0 x8 interface delivers full bandwidth on compatible platforms. A 550W power supply with an 8-pin connector is the recommended baseline for stable operation.
Straightforward dual-slot installation
The card occupies 2.25 slots and measures 303 mm in length, fitting most ATX cases without clearance issues. Mount it in the primary x16 slot, attach the single 8-pin power cable and connect up to four displays via one HDMI 2.1 and three DisplayPort 1.4 outputs. The most common issues are forgetting the power connector or using a PSU below the recommended wattage.
Highlights
- 8GB GDDR6 memory handles modern textures
- 2048 stream processors drive 1080p gaming performance
- Triple-fan cooler keeps temperatures controlled under load
- HDMI 2.1 plus three DisplayPort 1.4 outputs support four displays
- PCI Express 4.0 x8 interface fits compact ATX builds
Specifications
| Brand | ASRock |
|---|---|
| Series | Steel Legend |
| Model | RX7600 SL 8GO |
| Interface | PCI Express 4.0 x8 |
| Chipset Manufacturer | AMD |
| GPU Series | AMD Radeon RX 7000 Series |
| GPU | Radeon RX 7600 |
| Architecture | RDNA 3 |
| Stream Processors | 2048 |
| Memory Size | 8GB |
| Memory Interface | 128-Bit |
| Memory Type | GDDR6 |
| DirectX | DirectX 12 Ultimate |
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 4 |
| HDMI | 1 x HDMI 2.1 |
| DisplayPort | 3 x DisplayPort 1.4 |
| Color | Silver |
| Max Resolution | 7680 x 4320 |
| Cooler | Triple Fans |
| Thermal Design Power | 165W |
| Recommended PSU Wattage | 550W |
| Power Connector | 8-Pin |
| HDCP Ready | Yes |
| Form Factor | ATX |
| Max GPU Length | 303 mm |
| Slot Width | 2.25 Slots |
| Shipping weight | 1.40 kg |
| Package size | 394 × 226 × 112 mm |
Questions about this item
Will the 303 mm length and 2.25-slot width fit my ATX case?
The card measures 303 mm long and occupies 2.25 slots, so verify your case clearance and motherboard spacing before ordering.
What power connector does the 165 W board need and where do people slip up?
It requires one 8-pin PCIe connector; the common mistake is forgetting to seat the plug fully until it clicks.
How often should I clean the triple-fan cooler to keep the 165 W TDP in check?
Blow dust from the heatsink and fans every 6–12 months; thermal paste typically lasts several years before reapplication is needed.
