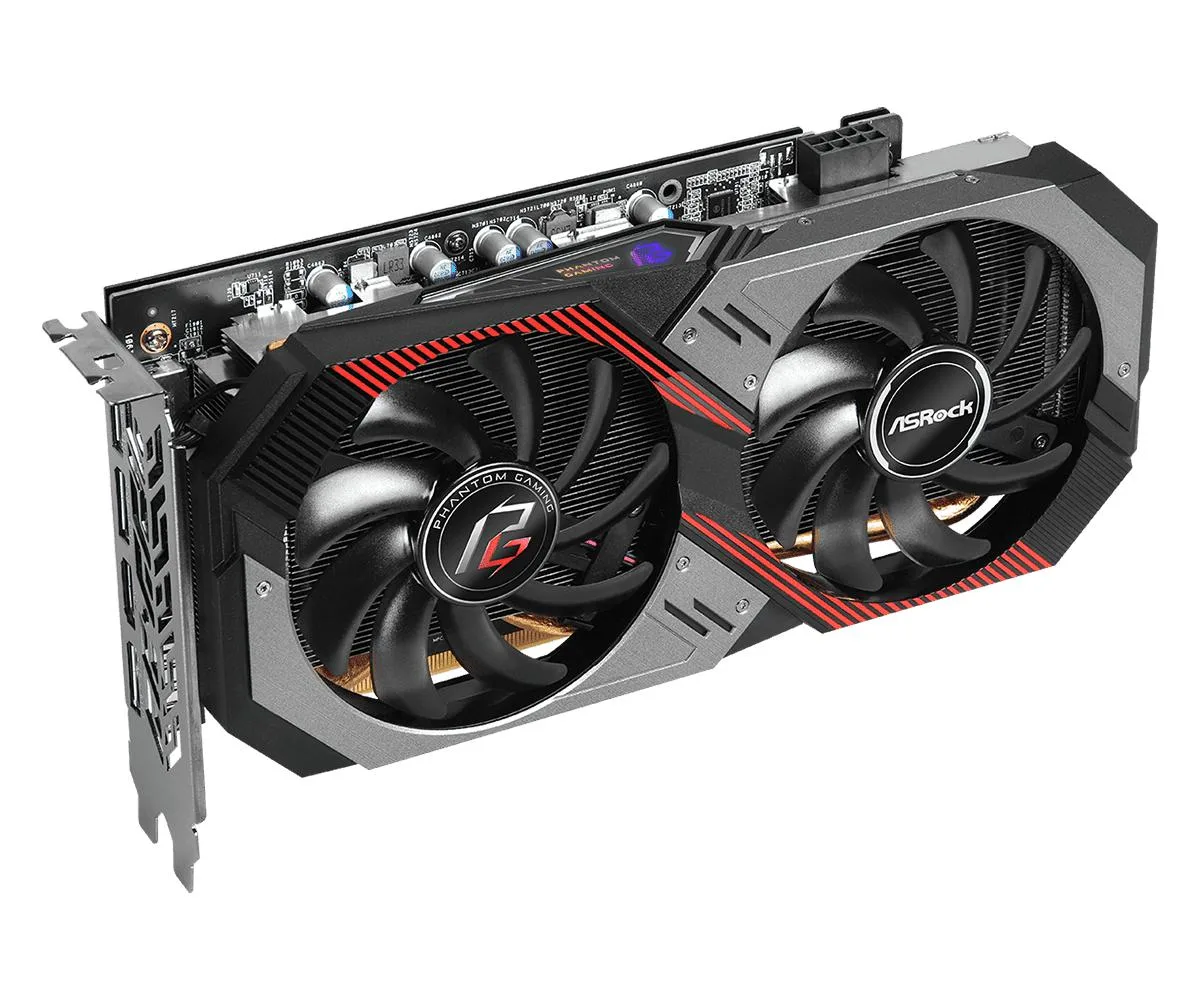

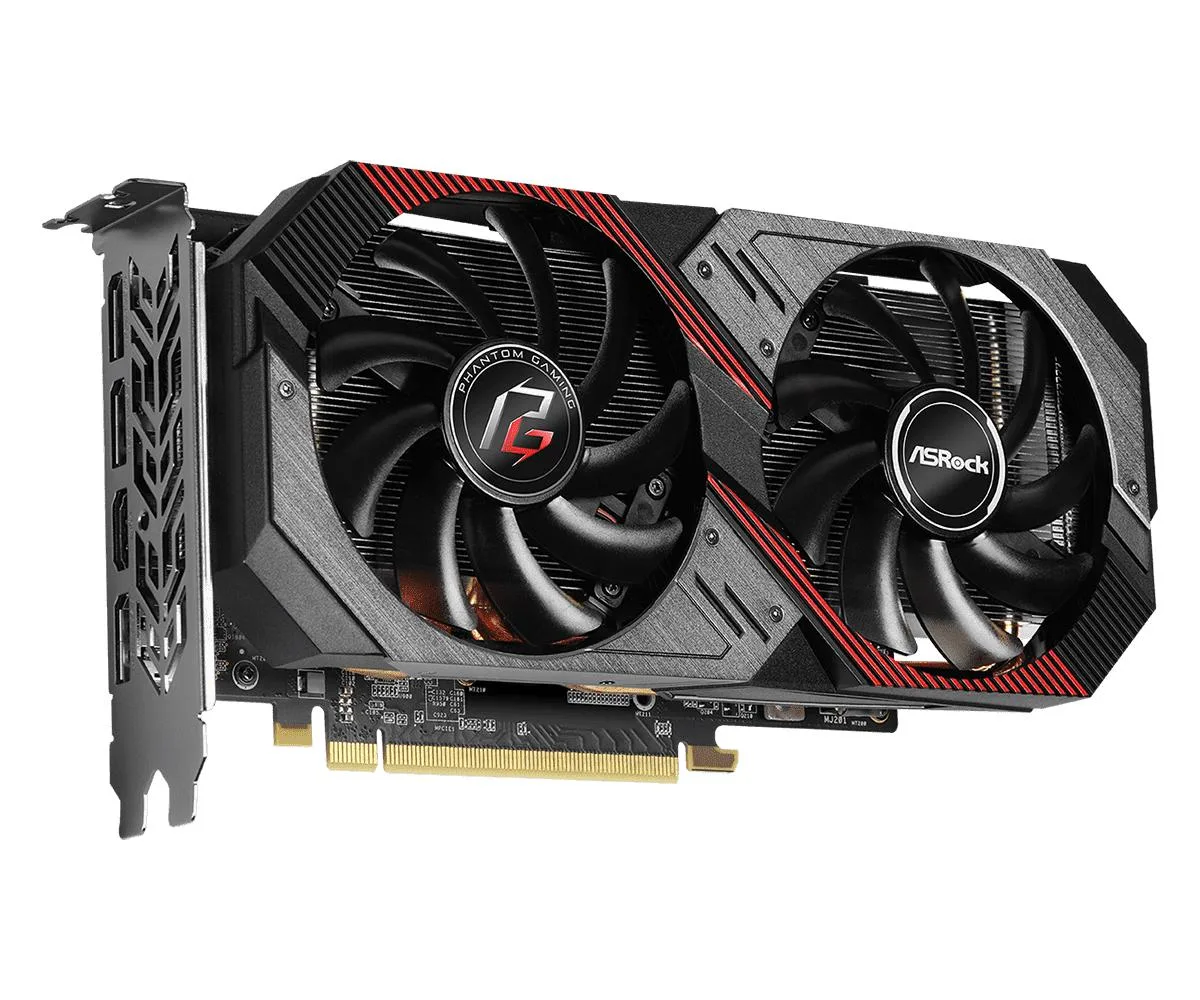

ASRock Radeon RX 5600 XT Phantom Gaming graphics card, dual fan cooler, 2.7-slot metal shroud, silver and black finish

ASRock

ASRock Radeon RX 5600 XT Phantom Gaming D2 6G OC graphics card

SKU CH-CTJP-32CDA

Delivers up to 1750 MHz boost with 6 GB GDDR6 on a 192-bit bus, dual-fan cooling and four-display support

  • Memory Size6GB
  • Memory TypeGDDR6
  • Smooth 1080p and 1440p gaming with 2304 stream processors
  • Boost clocks up to 1750 MHz for higher frame rates
  • 6 GB GDDR6 on a 192-bit bus delivers fast texture throughput
  • Four-display support via three DisplayPort 1.4 and one HDMI 2.0b
  • Dual-fan cooler in a 2.7-slot design keeps temperatures in check

Radeon RX 5600 XT Phantom Gaming D2 6G OC

The ASRock Radeon RX 5600 XT Phantom Gaming D2 6G OC is a graphics card built for 1080p and 1440p gaming. It uses the AMD Radeon RX 5600 XT GPU on a second generation 7nm process with 2304 stream processors. The card carries 6GB of GDDR6 memory on a 192-bit bus running at 14 Gbps. It connects through PCI Express x16 Gen4 and supports DirectX 12 and OpenGL 4.6.

Dual fan thermals with single 8-pin power

A dual fan cooler keeps the GPU within its thermal envelope during typical gaming loads. The board draws power from a single 8-pin connector and the manufacturer recommends a 550W power supply. Clock speeds run at a 1420 MHz base, up to 1615 MHz gaming frequency and a dynamic boost up to 1750 MHz. The 2.7-slot design fits standard ATX cases measuring 240.3 x 126.5 x 53 mm.

Upgrade from older 1080p cards for higher refresh

This card replaces ageing 4GB or 6GB models that struggle at high refresh rates in modern titles. The 6GB GDDR6 buffer and 14 Gbps memory speed remove texture bottlenecks at 1080p ultra and make 1440p playable. Four simultaneous displays are supported over three DisplayPort 1.4 outputs and one HDMI 2.0b port with 8K HDR at 60 Hz capability. The jump is worth it when your current GPU cannot hold 60 fps or higher at your target resolution.

Highlights

  • Smooth 1080p and 1440p gaming with 2304 stream processors
  • Boost clocks up to 1750 MHz for higher frame rates
  • 6 GB GDDR6 on a 192-bit bus delivers fast texture throughput
  • Four-display support via three DisplayPort 1.4 and one HDMI 2.0b
  • Dual-fan cooler in a 2.7-slot design keeps temperatures in check

Specifications

Memory Size6GB
Memory TypeGDDR6

Questions about this item

How do I install the card and what is the common mistake with the 8-pin connector?

Insert the card into a PCI Express x16 Gen4 slot, connect one 8-pin power cable from the PSU, and secure the 2.7-slot bracket; the frequent error is leaving the 8-pin loose or using an adapter instead of a native cable.

What maintenance will the dual-fan cooler need over time?

Dust the two fans and heatsink fins every few months with compressed air; the fans are the only moving parts and no liquid or pad replacement is scheduled.

At what core frequency does the GPU hit its power limit during sustained loads?

The gaming frequency tops out at 1615 MHz; under continuous load the 1 x 8-pin connector and 550 W PSU recommendation cap further boost.
