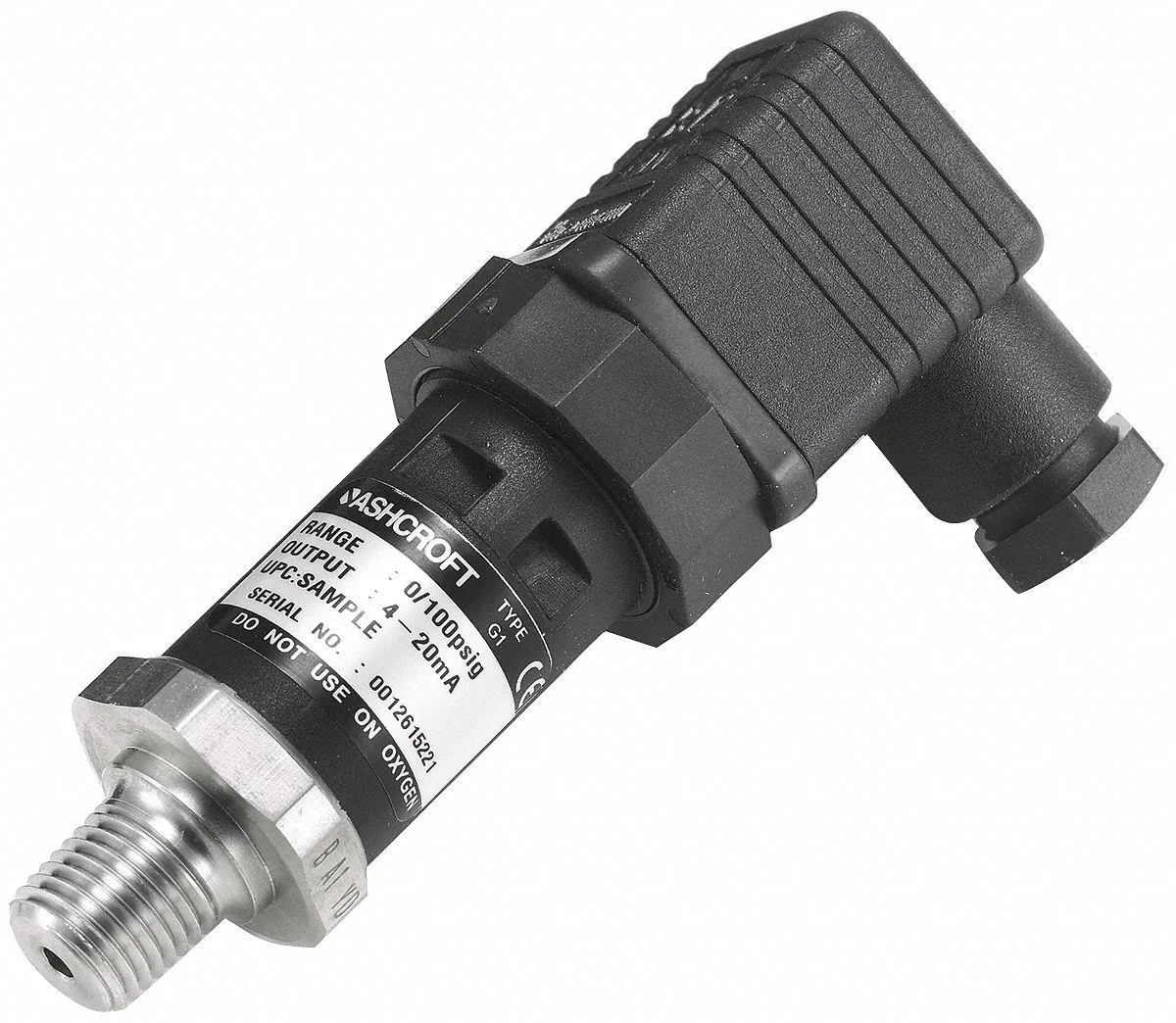

Stainless steel pressure transducer with 4-pin DIN connector and 1/4 MNPT process connection

Ashcroft

Ashcroft G17M0242DO100# pressure transducer 0 to 100 psi

SKU CH-J07X-YRJD3

Measures pressure from 0 to 100 psi with ±0.50 % full-scale accuracy and a 4–20 mA output on a 9–36 V DC supply

  • TypeElectronic
  • ±0.50 % full-scale accuracy ensures reliable readings
  • 4–20 mA output integrates directly with control systems
  • 9–36 V DC supply works from standard industrial power
  • Stainless-steel wetted parts resist corrosion in harsh media
  • 1/4 in MNPT process connection fits common piping

Ashcroft G17M0242DO100# 0–100 psi transducer

This Ashcroft pressure transducer measures 0 to 100 psi with ±0.50 % full-scale accuracy. It outputs a 4 to 20 mA DC signal powered by a 9 to 36 V DC supply. The wetted parts are stainless steel and the process connection is 1/4 in MNPT.

Hirschmann DIN 43650-A connector installation

The unit uses a 4-pin Hirschmann Style A DIN 43650-A connector for electrical termination. Wiring must follow the transmitter’s pin assignment to avoid signal errors or damage. Ensure the connector seating is secure to maintain the environmental seal.

Pre-order compatibility checks

Verify that your system accepts a 4 to 20 mA DC input and can provide 9 to 36 V DC excitation. Confirm the process port accommodates a 1/4 in MNPT thread and that the media is compatible with stainless steel wetted materials. Check the required measurement range matches 0 to 100 psi.

Highlights

  • ±0.50 % full-scale accuracy ensures reliable readings
  • 4–20 mA output integrates directly with control systems
  • 9–36 V DC supply works from standard industrial power
  • Stainless-steel wetted parts resist corrosion in harsh media
  • 1/4 in MNPT process connection fits common piping

Specifications

BrandASHCROFT
TypeElectronic

Questions about this item

How do I verify the transducer is operating correctly after installation?

Apply a known pressure and confirm the 4 to 20 mA output matches the 0 to 100 psi range within the +/- 0.50 percent full scale accuracy.

What comes with the G17M0242DO100# and what must I source separately?

The transducer includes the 4-pin Hirschmann DIN 43650-A connector; you must provide a 9 to 36 V DC power supply and the 1/4 in MNPT process fitting.

Which range version should I select for my application?

Choose this 0 to 100 psi model when your measured pressure falls within that span; other range values are different part numbers.
