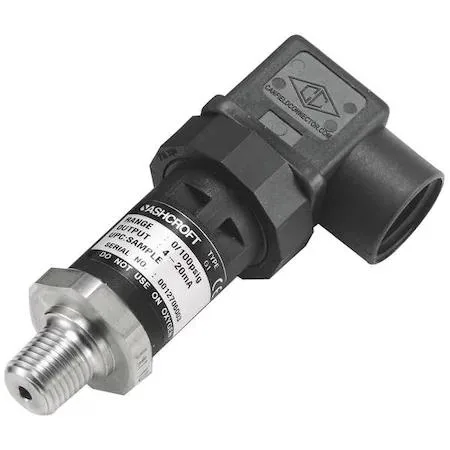

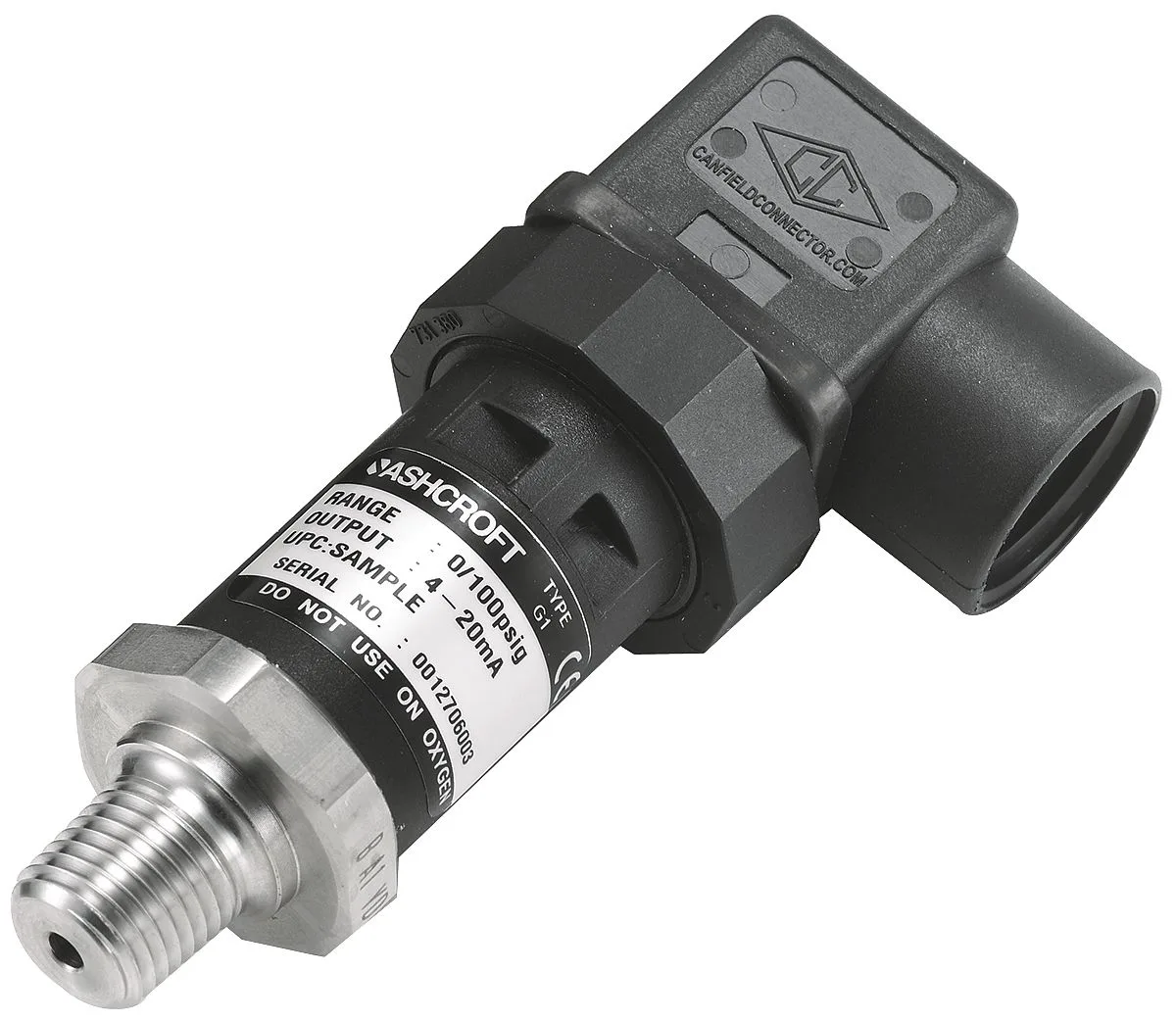

Stainless steel pressure transducer with DIN connector and half-inch conduit entry

Ashcroft

Ashcroft G17M0242CD200# Pressure Transducer 0-200 psi

SKU CH-V524-ABD8W

Measures 0-200 psi with 4-20 mA output and ±0.50 % accuracy in a NEMA 4X, IP67 housing

  • TypeElectronic
  • ±0.5 % full-scale accuracy for precise readings
  • 4-20 mA two-wire loop simplifies installation
  • NEMA 4X and IP67 rating withstands harsh environments
  • 9-36 V DC supply suits industrial power systems
  • 1/4 in male NPT fits standard process connections

Pressure range and output

The Ashcroft G2 series transducer measures gauge pressure from 0 to 200 psi and transmits a 4 to 20mA DC signal. It suits process monitoring, hydraulic systems and test rigs that require a two-wire current loop. Accuracy is rated at +/- 0.50 percent of full scale across the operating range.

Electrical and mechanical interfaces

The unit requires a 9 to 36V DC supply and connects through a DIN 43650 Form A connector. A male 1/4 in NPT process fitting threads directly into standard ports, while a 1/2 in FNPT conduit entry protects the wiring. NEMA 4X and IP67 ratings guard against dust, water jets and temporary immersion.

Temperature ceiling and pressure headroom

Continuous operation is specified up to 257 degrees F, covering most industrial fluid and ambient conditions. The 200 psi upper limit fits common hydraulic and pneumatic circuits but leaves no margin for pressure spikes beyond that value. Buyers needing higher over-pressure protection or wider temperature margins should evaluate alternative models.

Highlights

  • ±0.5 % full-scale accuracy for precise readings
  • 4-20 mA two-wire loop simplifies installation
  • NEMA 4X and IP67 rating withstands harsh environments
  • 9-36 V DC supply suits industrial power systems
  • 1/4 in male NPT fits standard process connections

Specifications

BrandASHCROFT
TypeElectronic

Questions about this item

What happens when the transducer runs continuously at its 200 psi maximum?

The unit is rated for a maximum operating temperature of 257 degrees F, so sustained full-range pressure will not exceed that thermal limit.

How much heat or electrical noise does the 4 to 20 mA loop generate during all-day operation?

Power draw stays within the 9 to 36 V DC supply range, and the two-wire current loop produces minimal self-heating or EMI.

Which mating connector and cable gland do I need to install this transducer?

The electrical interface uses a DIN 43650 Form A connector, and the wiring entry requires a 1/2 in FNPT conduit fitting.
