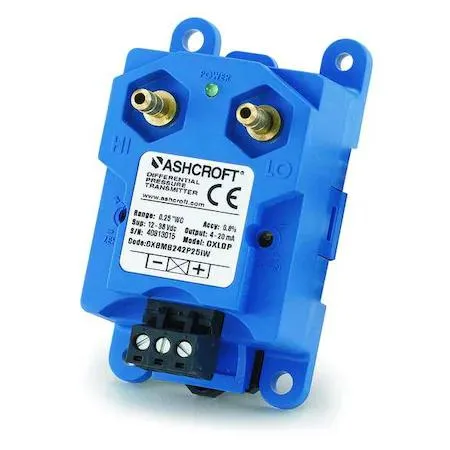

Ashcroft CX8MB2425IWL pressure transducer, plastic housing with brass hose barb fitting, screw terminals

Ashcroft

Ashcroft CX8MB2425IWL Pressure Transducer -5 to 5 In WC

SKU CH-EYK3-GQDMJ

Measures differential pressure from -5 to 5 in WC with 4-20mA output and ±0.80% accuracy

  • TypeElectronic
  • ±0.80 % full-scale accuracy for reliable low-pressure readings
  • 4–20 mA two-wire loop output simplifies control wiring
  • 12–36 V DC supply range fits standard industrial power
  • NEMA 1 enclosure with UL94-5VA rating meets basic safety needs
  • Brass hose-barb fitting and plastic housing suit clean-air applications

Ashcroft CX8MB2425IWL differential transmitter

This Ashcroft CX8MB2425IWL differential transmitter measures pressure from -5 to 5 inches of water column with an accuracy of ±0.80% of full scale. It outputs a 4 to 20 mA DC signal over a two-wire loop powered by 12 to 36 V DC. The CXLdp series unit is built for test and measurement tasks that require a reliable low-pressure sensor.

Sustained-load behaviour and overpressure margin

The transmitter withstands a continuous overpressure of 15 psid and a burst pressure of 25 psid, giving headroom above the 5 in wc upper range. Its ±0.80% full-scale accuracy holds across the operating span while the 12 to 36 V DC supply range tolerates voltage droop on long cable runs. The two-wire current loop rejects electrical noise better than voltage outputs in industrial environments.

Brass hose barb and NEMA 1 enclosure

A 1/4-inch male hose barb in brass connects directly to flexible tubing without extra adapters. The plastic housing carries a NEMA 1 rating for indoor use and meets UL94-5VA flammability requirements. Screw terminals accept stripped wires for secure field wiring, and the compact form factor fits tight panels where larger transmitters cannot be mounted.

Highlights

  • ±0.80 % full-scale accuracy for reliable low-pressure readings
  • 4–20 mA two-wire loop output simplifies control wiring
  • 12–36 V DC supply range fits standard industrial power
  • NEMA 1 enclosure with UL94-5VA rating meets basic safety needs
  • Brass hose-barb fitting and plastic housing suit clean-air applications

Specifications

BrandASHCROFT
TypeElectronic

Questions about this item

How much heat or noise does the CX8MB2425IWL generate when powered continuously at 36V DC?

The transducer draws a 4 to 20mA loop current, so power dissipation stays very low and the plastic housing produces no audible noise during all-day operation.

What power supply and wiring must I already have to install this 2-wire transmitter?

You need a 12 to 36V DC source and a current-loop input that accepts 4 to 20mA; the unit connects via screw terminals with no additional conduit or barrier required.

Will the 1/4 in hose-barb fitting and NEMA 1 rating work with my existing brass manifold and indoor panel?

Yes, the male 1/4 in hose barb threads into standard brass ports, and the NEMA 1 enclosure is designed for clean, dry indoor cabinets alongside legacy instruments.
