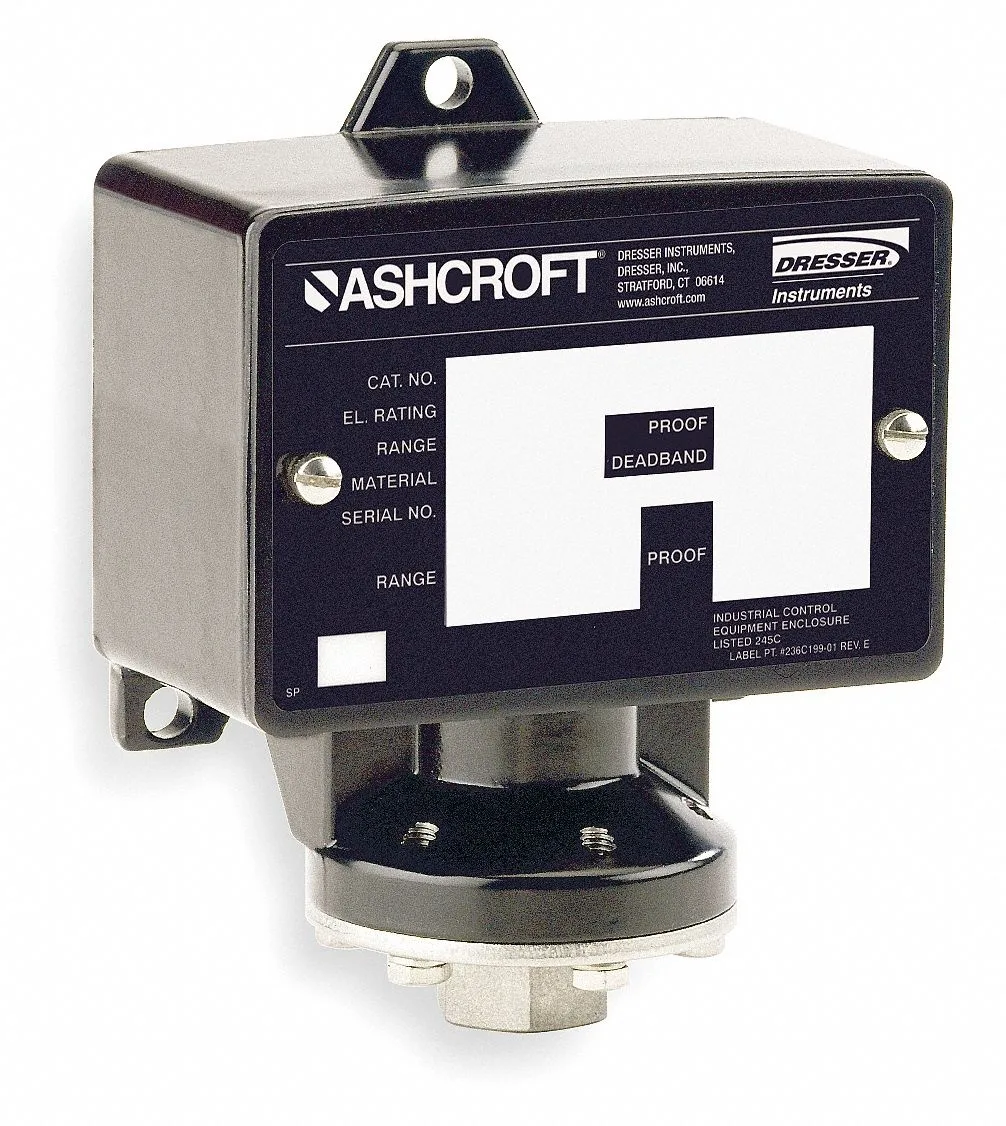

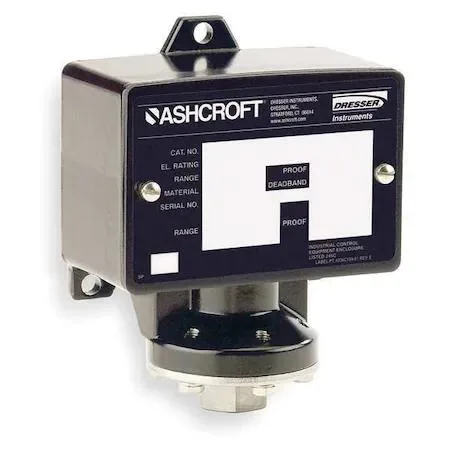

Ashcroft B424VXCYLM200 Pressure Switch, SPDT, 1/4" FNPT, 20-200 psi
Monitors 20 to 200 psi with SPDT contacts rated 15 A at 125 V and NEMA 13, 3, 4, 4X protection
- Adjustable 20-200 psi range suits varied systems
- SPDT contact form enables two-circuit control
- NEMA 13, 3, 4, 4X rating withstands harsh environments
- Diaphragm actuation provides reliable pressure sensing
- 15 A AC rating handles demanding electrical loads
Pressure Switch for Industrial Control
The Ashcroft B424VXCYLM200 is a diaphragm-actuated pressure switch designed for machinery and machine-shop applications. It provides a Standard action with a SPDT contact form to open or close circuits at the set point. The unit carries NEMA 13, 3, 4 and 4X ratings for use in demanding environments.
Sustained Operation and Switching Behaviour
The switch operates across a 20 to 200 psi range with a differential of 5 to 13 psi. Factory on/off setting is fixed at 90 percent of range. AC contact ratings are 15 A at 125 V, 15 A at 250 V and 15 A at 480 V. DC ratings are .25 A at 125 V, .5 A at 120 V and 6 A at 30 V.
Connection and Mounting Constraint
A single 1/4 in FNPT port connects the process media to the diaphragm. The housing conforms to NEMA 13, 3, 4 and 4X without additional enclosures. Buyers who need multiple ports or a different thread type cannot use this model.
Highlights
- Adjustable 20-200 psi range suits varied systems
- SPDT contact form enables two-circuit control
- NEMA 13, 3, 4, 4X rating withstands harsh environments
- Diaphragm actuation provides reliable pressure sensing
- 15 A AC rating handles demanding electrical loads
Specifications
| Brand | ASHCROFT |
|---|
Questions about this item
How much power does the Ashcroft B424VXCYLM200 draw when the contacts stay closed all day?
The switch itself draws no power; it only carries the load. AC contacts are rated 15 A at 125 V, 250 V or 480 V, and DC contacts 0.25 A at 125 V, 0.5 A at 120 V or 6 A at 30 V.
What wiring or fittings must I already have to install this pressure switch?
You need a 1/4 inch FNPT port on your system and wire sized for up to 15 A AC or the applicable DC rating. The switch has one 1/4 inch FNPT connection.
Will the SPDT contacts work with a 24 V DC relay coil from older equipment?
Yes. The DC rating allows 6 A at 30 V, so a typical 24 V coil well within that limit can be driven directly by the SPDT contacts.
