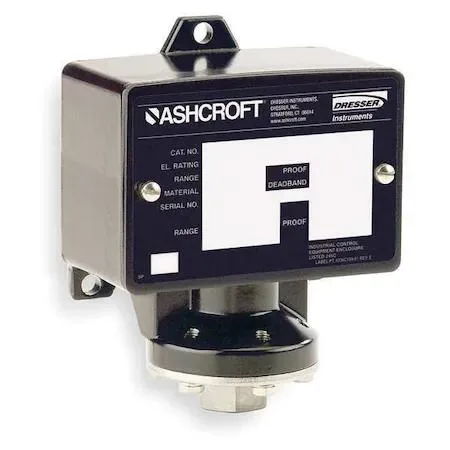

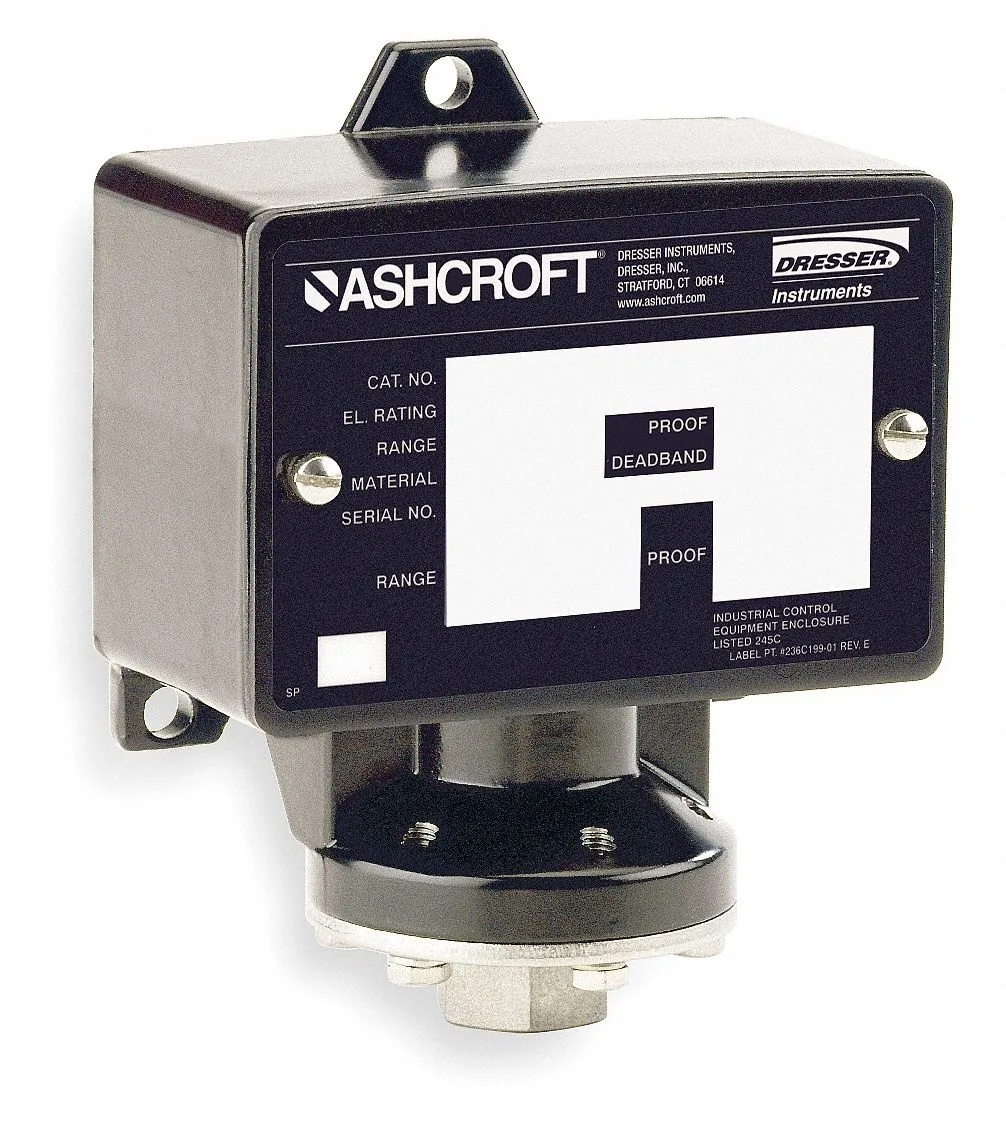

Ashcroft B424BXCYLM3000 Pressure Switch SPDT 300-3000 psi
Pressure switch with a 300 to 3000 psi range and SPDT contacts rated 15 A at 125, 250 and 480 V AC
- Pressure range covers 300 to 3000 psi for high-pressure systems
- SPDT contact form enables both normally open and normally closed wiring
- NEMA 13, 3, 4 and 4X ratings protect against dust, water and corrosion
- AC rating 15 A at 125, 250 and 480 V suits industrial control circuits
- Diaphragm actuation with 80 to 235 psi differential provides repeatable switching
Industrial Pressure Switch for Hydraulic Systems
The Ashcroft B424BXCYLM3000 is a diaphragm-actuated pressure switch built for hydraulic and pneumatic circuits operating between 300 and 3000 psi. Its SPDT contact form provides a single changeover circuit for direct control of starters, contactors or alarm panels in machine-shop environments.
Sustained Operation Within NEMA-Rated Enclosure
The switch carries a NEMA 13, 3, 4 and 4X rating, meaning the enclosure resists oil, dust, rain and hose-directed water during continuous duty. AC contacts are rated at 15 A across 125 V, 250 V and 480 V, while DC ratings reach 6 A at 30 V and 0.5 A at 120 V, so load switching remains stable over long cycles without derating.
Verify Port Thread and Differential Before
The unit offers one 1/4 inch FNPT pressure port and a fixed differential span of 80 to 235 psi with factory on/off points set at 90 percent of range. Confirm that your system thread matches 1/4 FNPT and that the required deadband falls inside the 80–235 psi window, otherwise the switch will not trip at the desired pressures.
Highlights
- Pressure range covers 300 to 3000 psi for high-pressure systems
- SPDT contact form enables both normally open and normally closed wiring
- NEMA 13, 3, 4 and 4X ratings protect against dust, water and corrosion
- AC rating 15 A at 125, 250 and 480 V suits industrial control circuits
- Diaphragm actuation with 80 to 235 psi differential provides repeatable switching
Specifications
| Brand | ASHCROFT |
|---|
Questions about this item
How much heat does the SPDT contact generate when switching 15 A at 480 VAC continuously?
The contacts are rated 15 A at 480 VAC, 15 A at 250 VAC and 15 A at 125 VAC; at rated load the switch dissipates minimal heat because the diaphragm actuation has no internal heater.
What pipe fitting do I need to connect the 1/4 in FPT port to my hydraulic line?
The switch has a single 1/4 inch female NPT port, so you must supply a matching 1/4 inch male NPT adapter or hose fitting.
Will the NEMA 13 enclosure protect the switch if mounted next to an older NEMA 4 panel?
This unit carries NEMA 13, 3, 4 and 4X ratings, so it meets or exceeds the dust, water and oil-tight requirements of a NEMA 4 enclosure.
