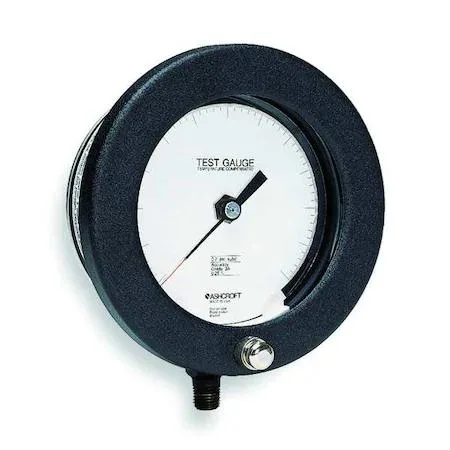

Ashcroft 60-1082AS test pressure gauge, 6 inch white dial with mirror band, black aluminum case, bottom 1/4 NPT connection

Ashcroft

Ashcroft 60-1082AS 02L 30 PSI Test Pressure Gauge

SKU CH-44BS-MXEVH

A 6 in dial test pressure gauge measuring 0 to 30 psi with ±0.25 % accuracy and a 1/4 in NPT male connection

  • TypeElectronic
  • +/- 0.25% accuracy ensures precise pressure readings
  • 0 to 30 psi range covers low-pressure test applications
  • 6 inch dial with mirror-band reduces parallax error
  • 1/4 inch NPT male connection fits standard fittings
  • Aluminium case with glass lens withstands harsh environments

Test Gauge for 0-30 psi Range

This Ashcroft test pressure gauge covers a primary range of 0 to 30 psi with an accuracy of +/- 0.25 percent. The 6 in white dial features a mirror-band for precise reading alignment. It is built for technicians who require reliable pressure verification in hydraulic or pneumatic systems.

Sustained Accuracy with Aluminium Case

The aluminium case and glass lens maintain calibration stability during extended monitoring sessions. A bottom-mounted 1/4 in male NPT connection provides a secure, leak-tight seal under continuous system pressure. The non-fillable design eliminates fluid maintenance while the mirror-band dial reduces parallax error over long observation periods.

Verify Panel Cut-Out and Connection Before Ordering

Installation requires a 6.5 in panel cut-out and a 7 in bolt circle diameter for the mounting pattern. Confirm your panel thickness accommodates the rear flange and that the process media is compatible with the wetted materials. The gauge carries no IP or NEMA rating, so it must be shielded from wash-down or outdoor exposure.

Highlights

  • +/- 0.25% accuracy ensures precise pressure readings
  • 0 to 30 psi range covers low-pressure test applications
  • 6 inch dial with mirror-band reduces parallax error
  • 1/4 inch NPT male connection fits standard fittings
  • Aluminium case with glass lens withstands harsh environments

Specifications

BrandASHCROFT
TypeElectronic

Questions about this item

Does the 6 in dial and +/-0.25% accuracy stay readable after the gauge runs continuously at 30 PSI?

The 6 in white dial with mirror band and +/-0.25% accuracy are designed for steady reading at the full 0 to 30 PSI range; the aluminum case and glass lens handle normal operating heat without fogging or drift.

What existing fitting do I need so the 1/4 in male NPT bottom connection seals properly?

You need a female 1/4 in NPT port or adapter on your panel or pipe; the gauge’s male NPT threads seal directly into that connection without extra parts.

Will the 6.5 in panel cut-out and 7 in bolt circle match the holes already drilled in my older test panel?

The gauge requires a 6.5 in cut-out and mounts on a 7 in bolt circle; if your existing panel matches those dimensions the gauge will bolt straight in.
