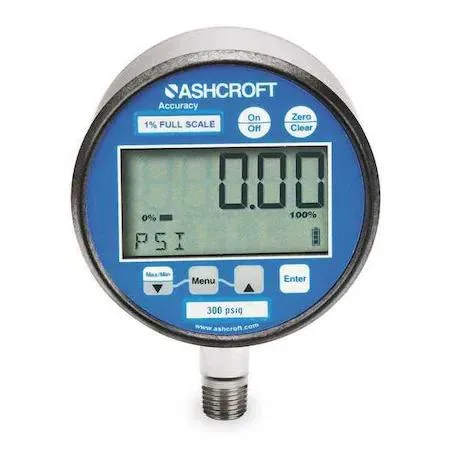

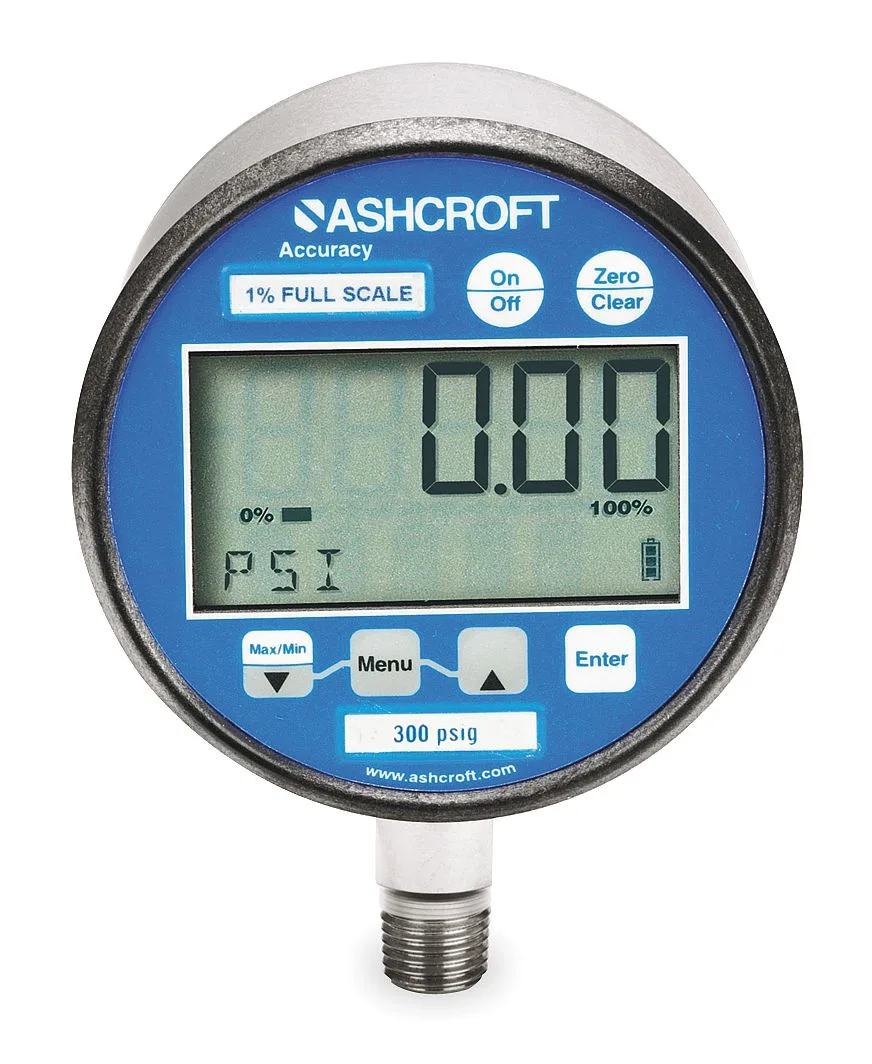

Stainless steel digital pressure gauge with 3 inch dial and bottom connection

Ashcroft

Ashcroft 302074SD02L600BL digital pressure gauge

SKU CH-Q1VW-6XYE4

Digital pressure gauge accurate to ±0.25% with a 316 stainless steel diaphragm sensor and IP65-rated case, displaying eight selectable units and powered by two AA batteries

  • TypeElectronic
  • +/- 0.25 % accuracy for precise readings
  • IP65 rating protects against dust and water jets
  • 316 stainless steel sensor and socket resist corrosion
  • Eight selectable pressure units cover diverse applications
  • Powered by two AA batteries for field use

Digital pressure gauge for industrial testing

The Ashcroft 302074SD02L600BL is a digital test pressure gauge built for technicians who need portable, accurate readings in the field. Its stainless-steel case and IP65 rating suit harsh environments where moisture or dust are present. The gauge displays measurements in bar, psi, kPa, and seven other units for versatile use. It is not for buyers who require hazardous-location certification or wireless data logging.

Battery-powered installation with NPT connection

Installation consists of threading the male 316 stainless-steel NPT process connection into the test port and inserting two AA batteries to power the unit. The bottom-mounted connection allows straight attachment to panels or piping without extra fittings. The polyester lens resists impact but can scratch if wiped with abrasive cloths. Users sometimes overtighten the NPT thread, risking damage to the 316 stainless-steel socket or the diaphragm sensor.

Accuracy of ±0.25 percent full scale

The defining specification is the ±0.25 percent full-scale accuracy, which determines whether the gauge meets your calibration or test protocol requirements. The diaphragm sensor and 3-inch nominal dial size support this precision across the selectable pressure units. If your application demands tighter tolerance or a safety-rated enclosure, this model will not satisfy those needs.

Highlights

  • +/- 0.25 % accuracy for precise readings
  • IP65 rating protects against dust and water jets
  • 316 stainless steel sensor and socket resist corrosion
  • Eight selectable pressure units cover diverse applications
  • Powered by two AA batteries for field use

Specifications

BrandASHCROFT
TypeElectronic

Questions about this item

How do I confirm the gauge is reading within its ±0.25 % accuracy after installation?

Apply a known reference pressure and verify the display stays within ±0.25 % of that value across the 600 psi range.

What comes in the box and what must I supply separately?

The gauge includes the stainless-steel case, polyester lens, 316 stainless diaphragm sensor and ½ NPT male bottom connection; you must provide two AA batteries.

Which pressure-unit version should I select for my application?

This model displays bar, ft wc, in Hg, kg/sq cm, kPa, mBar, MPa and psi, so choose it when you need any of those eight units.
