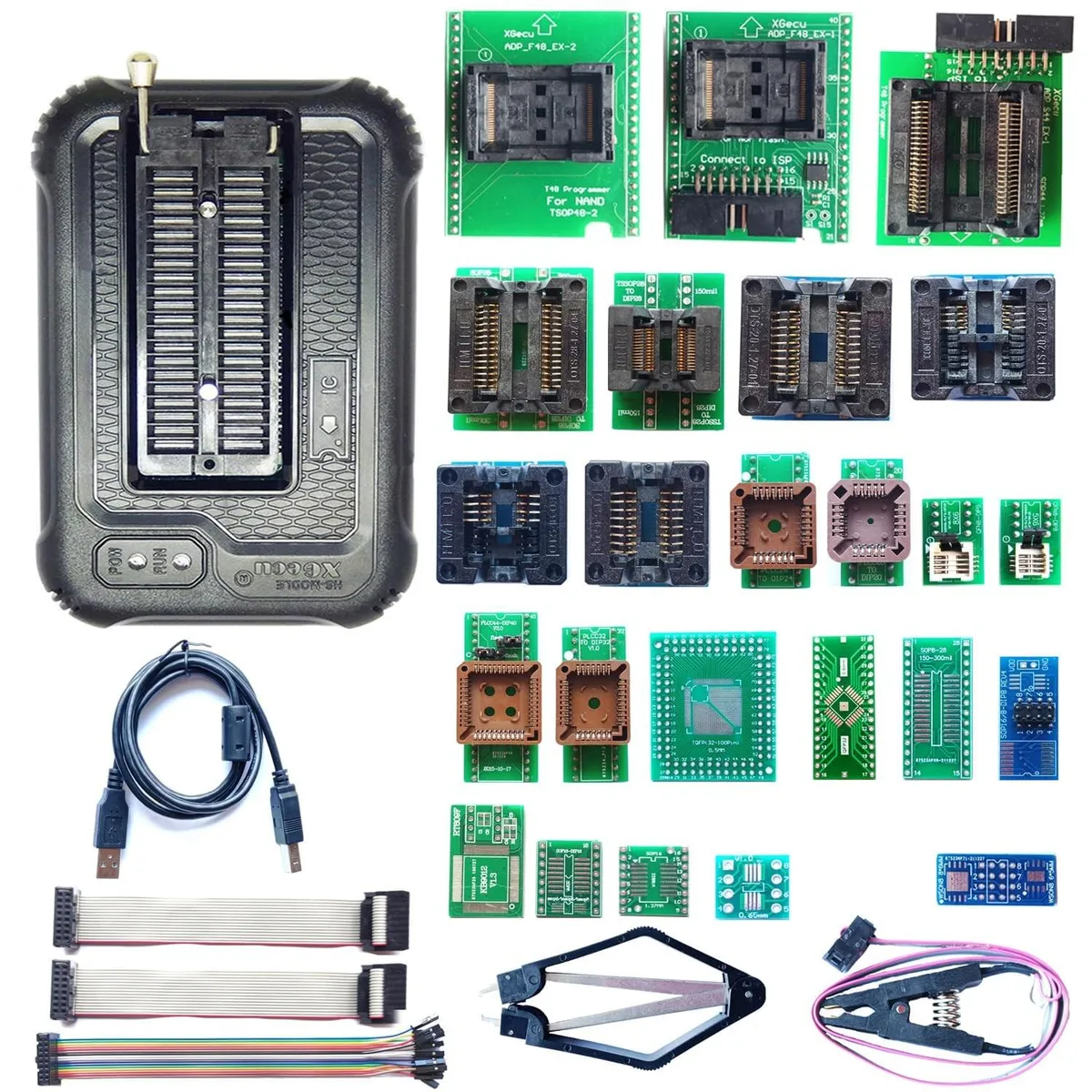

ARENTI T48 programmer unit with 40-pin ZIF socket, multiple adapter boards, SOP8 clip and USB cable

ARENTI

ARENTI T48 Programmer 24 Adapter 2 in 1 Accessory

SKU CH-4M7T-DWD8X

A 2-in-1 accessory kit for the T48 programmer that adds a 24-pin adapter and multiple SOP, PLCC and DIP socket converters for EPROM, BIOS, AVR, MCU, SPI, NAND and eMMC chips

  • Programs high-capacity NAND and eMMC up to 256 GB
  • Handles high-voltage chips with VPP up to 25 V
  • 56-channel I/O with 64-level adjustable VCC and VPP
  • Self-test checks every VPP, VCC, GND and IO pin
  • Runs on Windows XP through Windows 11

T48 Programmer 24 Adapter Kit

The ARENTI T48 Programmer 24 Adapter is a 2-in-1 accessory set designed for use with the Xgecu T48 EPROM programmer. It provides a collection of clip sockets and DIP adapters that allow developers and maintenance personnel to program a wide range of IC, BIOS, AVR, MCU, SPI, NOR, NAND Flash, and eMMC chips. The kit supports high-capacity NAND and eMMC devices up to 256GB.

Check Programmer Compatibility First

Before ordering, verify that you own the Xgecu T48 or TL866-3G programmer unit, as these adapters are engineered specifically for that 40-pin ZIF socket interface. The host programmer runs on a 32-bit 120MHz MCU with a 4-layer PCB and supports Windows XP through Windows 11. Contact the supplier to confirm support for your specific chip models, as software updates continue to expand the device list.

Precision Adapters for Daily Bench Work

The package includes ten adapters covering SOP8, SOP16, SOP20, SOP28, TSSOP28, PLCC32, and PLCC44 footprints with 150mil, 208mil, and 300mil pitch options. Each adapter plugs into the programmer's 56-channel high-voltage insulated IO, handling VCC from 1.8V to 6.5V and VPP up to 25V across 64 adjustable levels. The self-test function checks every VPP, VCC, GND, and IO pin before each session, ensuring reliable small-batch production runs.

Highlights

  • Programs high-capacity NAND and eMMC up to 256 GB
  • Handles high-voltage chips with VPP up to 25 V
  • 56-channel I/O with 64-level adjustable VCC and VPP
  • Self-test checks every VPP, VCC, GND and IO pin
  • Runs on Windows XP through Windows 11

Specifications

No published specifications for this item yet.

Questions about this item

What accessories are included with the T48 programmer and which common items are not in the package?

The package includes the T48 MiniPRO programmer, a USB cable, one SOP8 clip, and nine adapters covering SOP8, SOP16, SOP20, SOP28, TSSOP28, PLCC32 and PLCC44 footprints. No external power supply is included because the unit draws power from the USB port.

The title mentions a 24 adapter — does that mean 24 separate adapters or a 24-pin adapter, and which one should I choose?

The product ships with nine adapters, not 24. The number 24 in the title refers to the 24-pin SOP28-DIP28 300mil and TSSOP28-DIP28 adapters that are part of the included set. Choose based on the package type of the chip you are programming.

The highlights state VPP up to 25 V — what does that mean when I am programming a 27Cxxx EPROM in the ZIF socket?

The programmer can supply a programming voltage of up to 25 V on the VPP pin, which is required by high-voltage EPROMs such as the 27Cxxx series. The 40-pin ZIF socket and 56-channel driver deliver that voltage directly to the device under test without an external supply.
