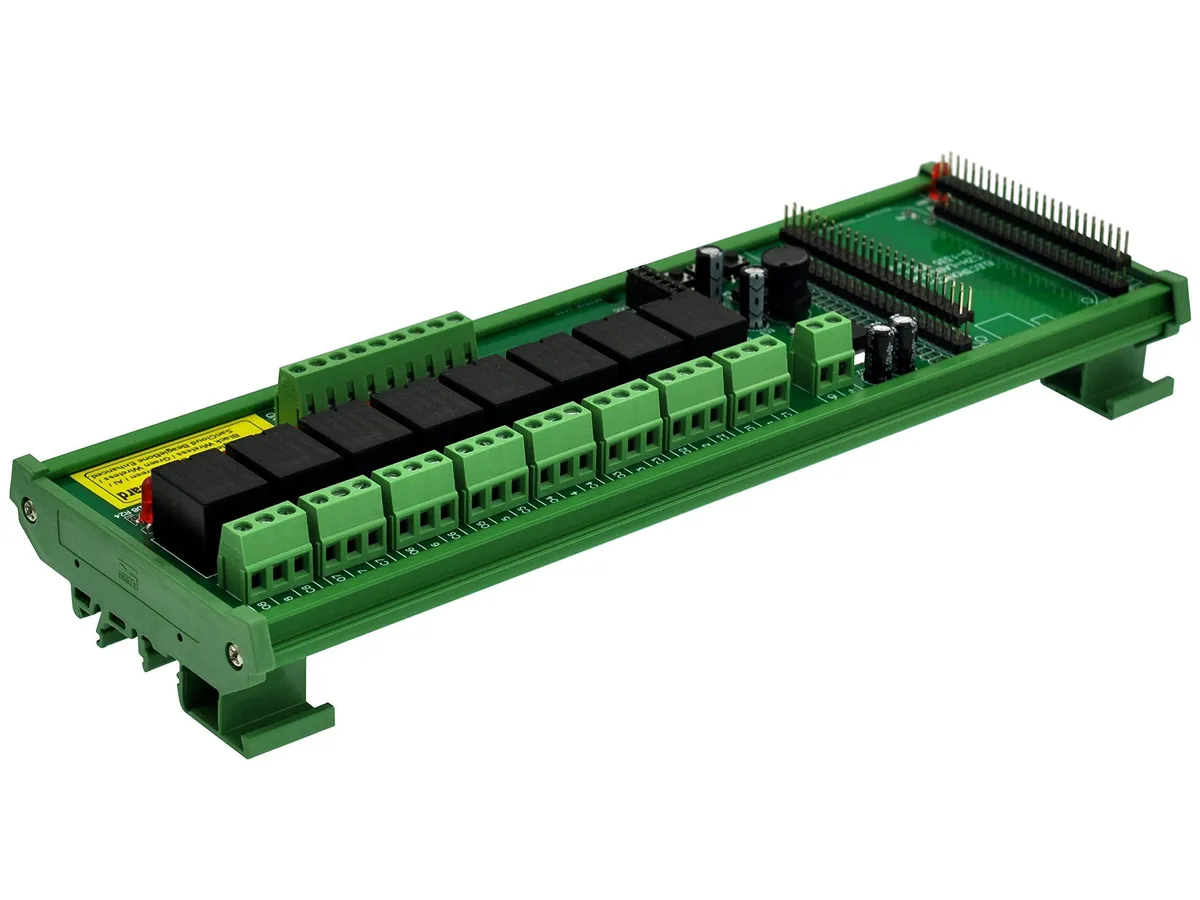

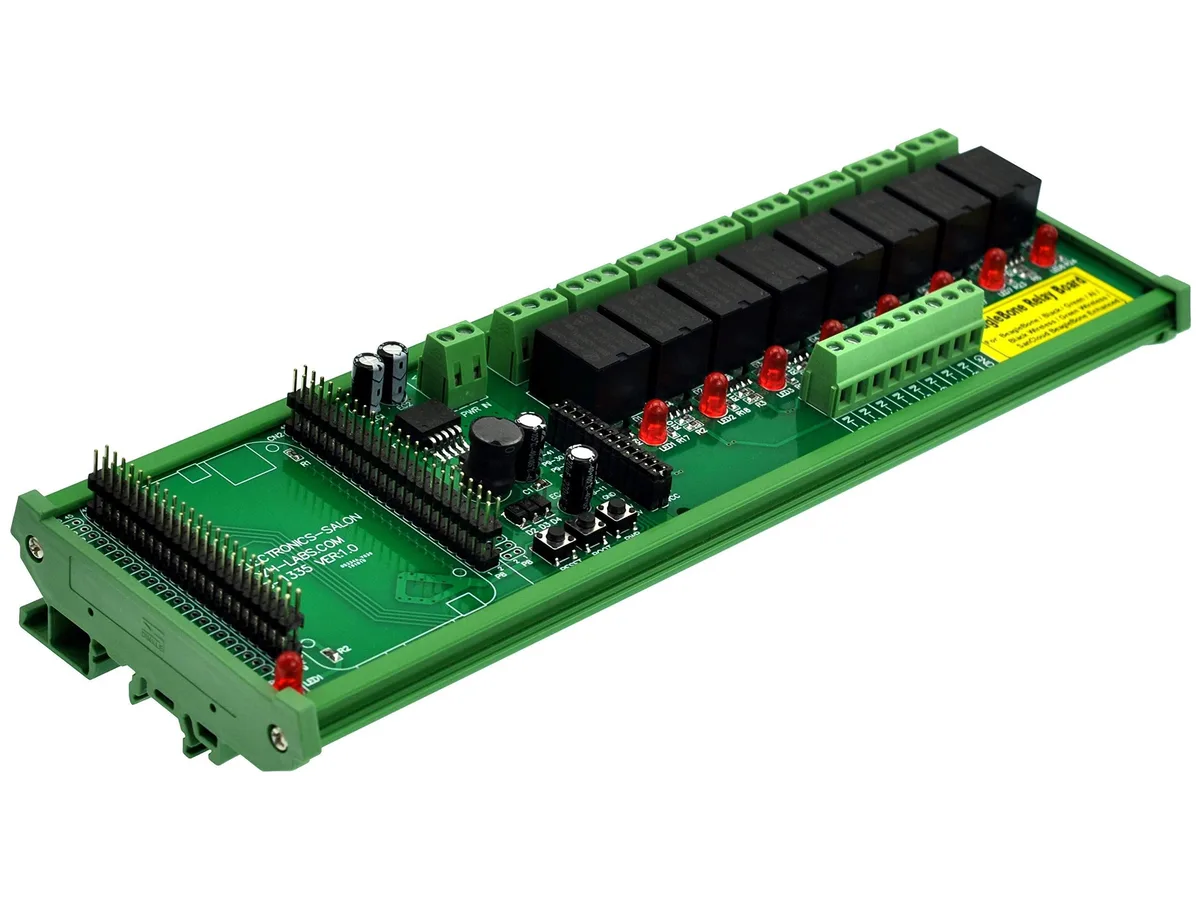

Green DIN-rail relay board with eight SPDT relays, LED indicators, reset and power buttons

ARENTI

ARENTI DIN Rail 8 SPDT IoT Power Relay Module for BeagleBone Black 2 in 1 accessory

SKU CH-20F8-BGTNT

DIN-rail module adds eight SPDT power relays to BeagleBone boards for industrial IoT control

  • Extend BeagleBone projects to IoT and industrial control with DIN rail mounting
  • Power from DC 5 V or DC 7 V to 32 V with on-board RESET, BOOT and PWR buttons
  • Eight SPDT relays rated 125 VAC 12 A, 277 VAC 10 A or 30 VDC 10 A per channel
  • LED indication per relay channel and pin-jumper selection of BeagleBone or external control signals
  • FR-4 glass-fibre PCB on fireproof nylon carrier fitting 35 mm, 32 mm and 15 mm DIN rails

DIN Rail Relay Module for BeagleBone

This DIN rail mount module adds eight SPDT power relays to BeagleBone Black and compatible boards. It accepts DC 5 V or DC 7–32 V supply and provides a RESET, BOOT and PWR button for the attached board. Relay action LEDs show the state of each channel and a pin jumper selects whether the control signal comes from the BeagleBone or an external source.

Industrial and IoT builders needing relay control

The module suits engineers extending BeagleBone projects into industrial or IoT control tasks where multiple switched circuits are required. It is not for users who need a standalone controller without a BeagleBone board, nor for applications that require more than eight relay channels or contact ratings beyond those specified.

Eight SPDT relays rated 125 VAC 12 A 277 VAC 10

Each of the eight channels switches up to 125 VAC at 12 A, 277 VAC at 10 A or 30 VDC at 10 A. The FR-4 glass fibre PCB mounts on a fireproof nylon carrier that fits 35 mm, 32 mm or 15 mm DIN rails, making the contact rating the key figure for deciding if this module matches the load.

Highlights

  • Extend BeagleBone projects to IoT and industrial control with DIN rail mounting
  • Power from DC 5 V or DC 7 V to 32 V with on-board RESET, BOOT and PWR buttons
  • Eight SPDT relays rated 125 VAC 12 A, 277 VAC 10 A or 30 VDC 10 A per channel
  • LED indication per relay channel and pin-jumper selection of BeagleBone or external control signals
  • FR-4 glass-fibre PCB on fireproof nylon carrier fitting 35 mm, 32 mm and 15 mm DIN rails

Specifications

No published specifications for this item yet.

Questions about this item

After wiring the relays, how can I verify each of the eight channels is switching correctly?

Each channel has a dedicated LED that lights when the relay actuates, so you can confirm operation by observing the LED for the corresponding relay.

Does the module ship with a BeagleBone board or a DIN rail, and what must I supply myself?

The package includes the relay module with its DIN-rail carrier; the BeagleBone board and the 35 mm, 32 mm or 15 mm rail are not included and must be purchased separately.

Which power-supply voltage range should I select for a 12 V DC source?

The module accepts DC 5 V or DC 7 V to 32 V, so a 12 V supply falls within the supported range.
