Square grey thermal pad, 100 by 100 millimetres, 1.5 millimetres thick

ARCTIC

ARCTIC TP-3 Thermal Pad 100 x 100 x 1.5 mm accessory

SKU CH-JGV3-S6R6T

Premium silicone thermal pad measuring 100 x 100 x 1.5 mm for bridging gaps on GPUs, CPUs and memory modules

  • Minimises thermal resistance with 1.5 mm thickness and high compressibility
  • High thermal conductivity from silicone-based compound with special filler
  • Electrically insulating and non-capacitive for safe contact with components
  • Vibration-damping and mouldable pad cuts easily to 100 x 100 mm size
  • Suitable for RAM, chipset, ICs on PC, laptop, console and graphics cards

Premium Performance Thermal Pad

The ARCTIC TP-3 is a high-performance thermal interface pad designed for PC builders and technicians who need to bridge gaps between heat sources and coolers. Its electrically insulating, non-capacitive composition makes it safe for direct contact with sensitive components such as RAM modules, chipsets and graphics card ICs.

100 x 100 mm sheet with 1.5 mm thickness

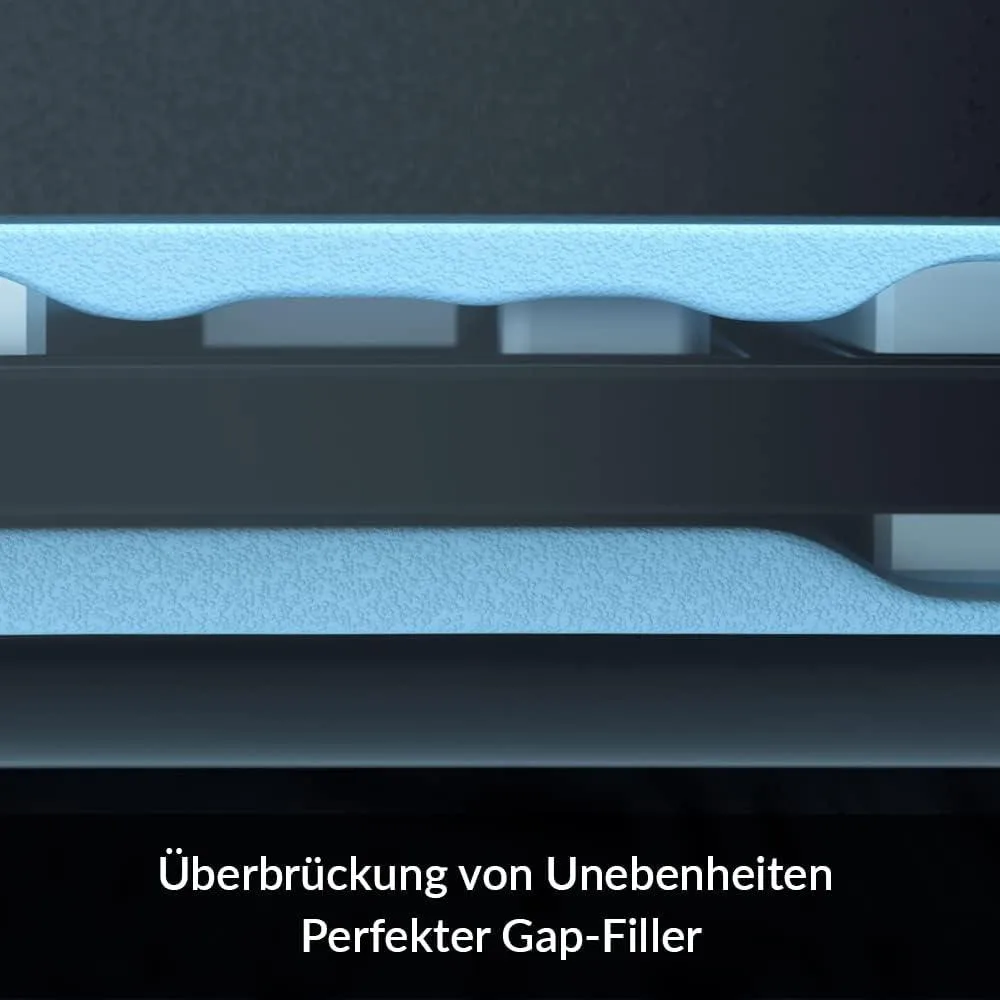

The pad arrives as a single 100 by 100 millimetre sheet that can be cut to the exact shape required for each application. At 1.5 millimetres thick it comfortably fills larger uneven gaps between closely spaced chips, though extremely thin interfaces will need a slimmer alternative.

Soft silicone construction for low thermal

The very soft silicone and special filler compress easily to minimise thermal resistance while also damping vibration. Because the material contains no metal particles it remains electrically safe during handling, and the extreme softness demands careful installation following the supplied user manual.

Highlights

  • Minimises thermal resistance with 1.5 mm thickness and high compressibility
  • High thermal conductivity from silicone-based compound with special filler
  • Electrically insulating and non-capacitive for safe contact with components
  • Vibration-damping and mouldable pad cuts easily to 100 x 100 mm size
  • Suitable for RAM, chipset, ICs on PC, laptop, console and graphics cards

Specifications

No published specifications for this item yet.

Questions about this item

Will the 1.5 mm pad fit between my GPU die and the original cooler without bending the mounting screws?

The pad compresses well thanks to its very soft silicone base, so it conforms to uneven gaps and reduces thermal resistance when the cooler is tightened to spec.

How can I verify the TP-3 is conducting heat properly once installed?

Monitor GPU or CPU temperatures under load; a drop of several degrees compared with the previous interface material indicates the pad is bridging the gap effectively.

Does the 100 x 100 mm sheet come pre-cut for a specific graphics card or must I cut it myself?

The sheet is supplied as a single 100 x 100 mm piece; you trim it to the exact shape needed for RAM, VRM, chipset or GPU die using scissors or a craft knife.
