Replacement top LCD screen for Nintendo DS Lite with speakers attached

ARCTIC

ARCTIC Nintendo DS Lite Top Screen with Speakers

SKU CH-N5ZE-BPW2P

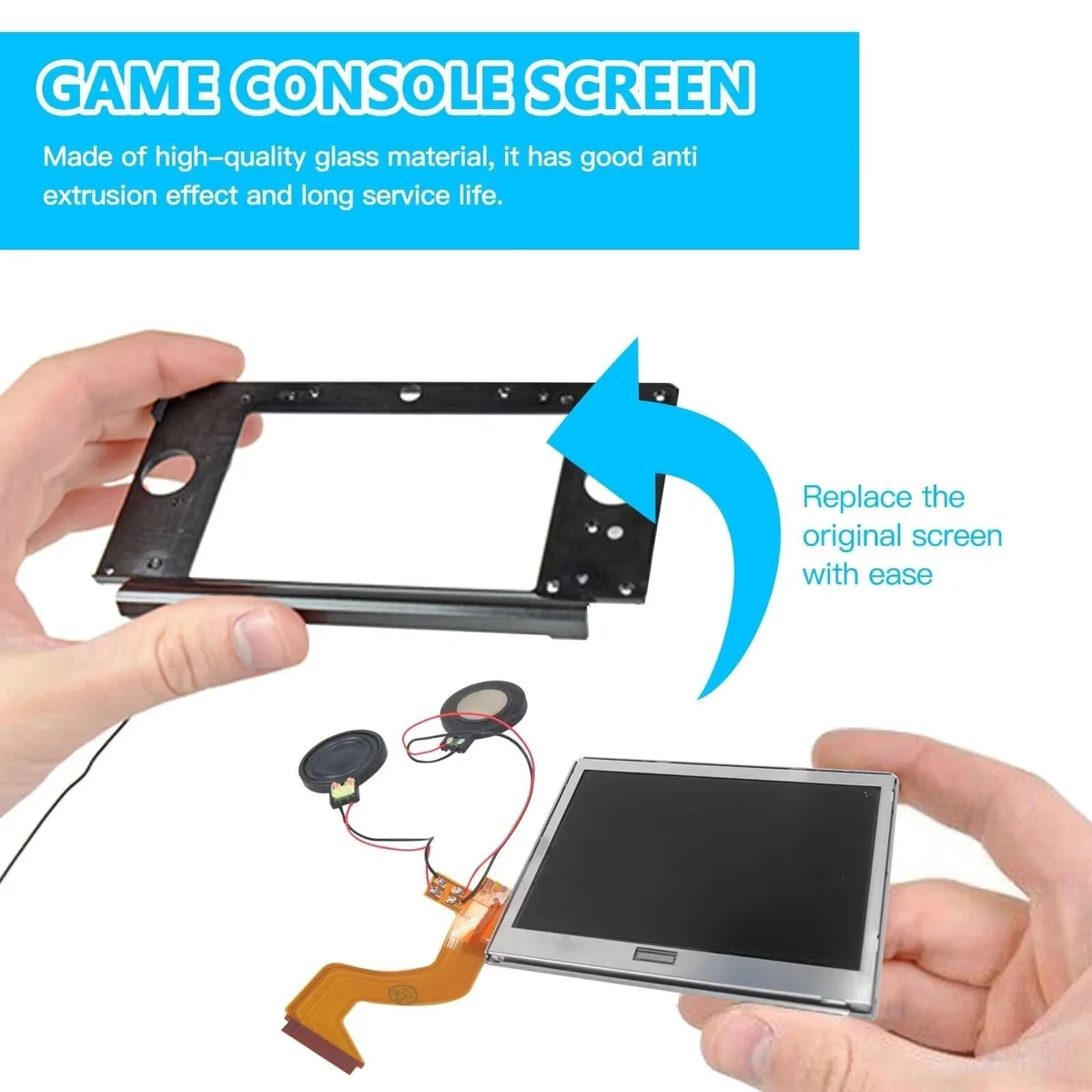

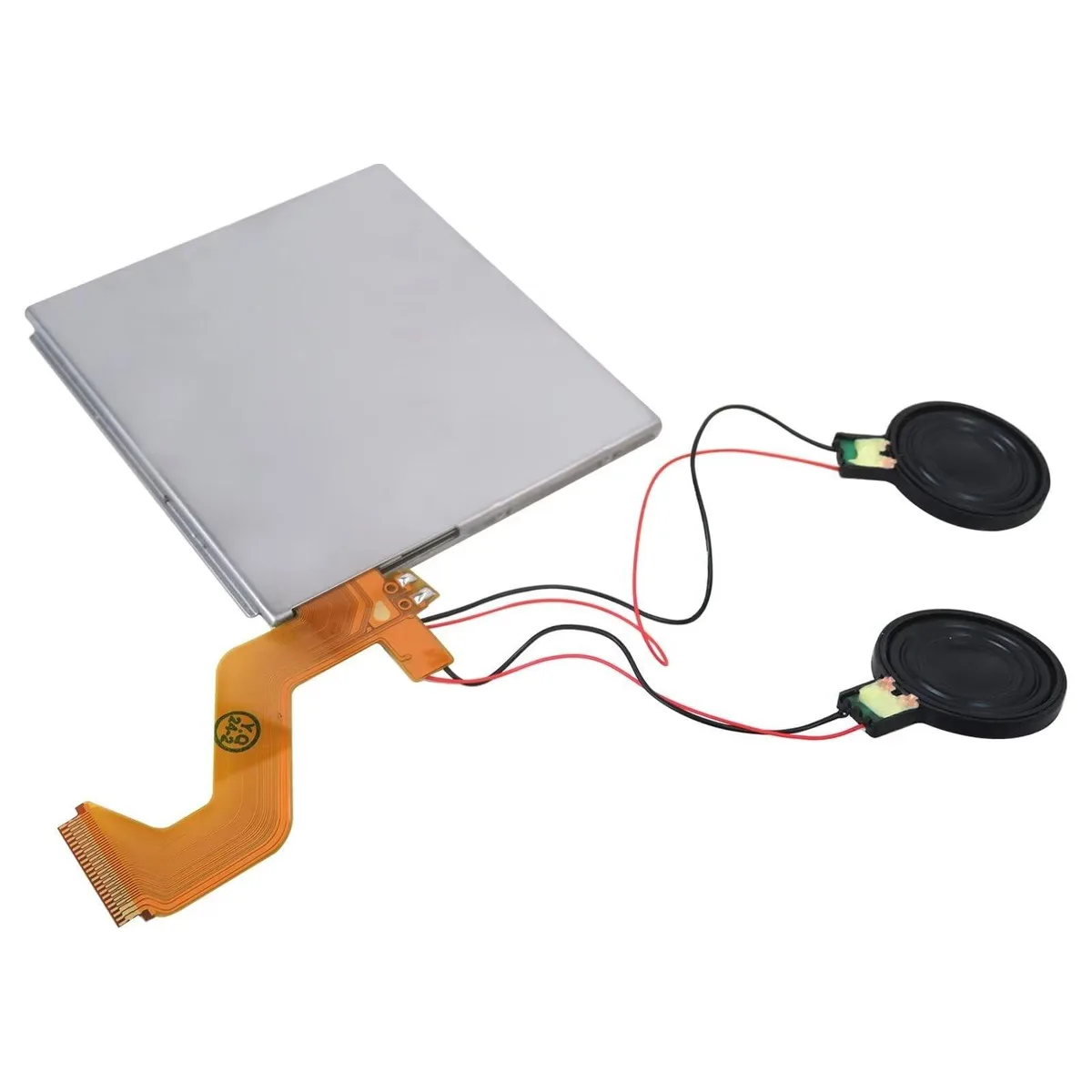

Replacement top LCD screen with pre-soldered speakers for Nintendo DS Lite, tested before shipping

  • Pre-installed speakers save soldering time
  • Tested before shipping ensures working unit
  • Bezel transfer uses existing adhesive
  • Drop-in repair fits original housing
  • Compatible with Nintendo DS Lite only

Nintendo DS Lite Upper LCD Replacement

This replacement top screen is built for the Nintendo DS Lite and arrives with the speakers already soldered to the ribbon cable. It is aimed at owners whose original upper display has failed or whose audio output is distorted. Each unit is tested by the supplier before it ships.

Swaps Out a Faulty Factory Screen

The part replaces the original upper LCD assembly when the display shows dead pixels, lines or no image at all, or when the integrated speakers are blown. The upgrade is worthwhile when the lower screen and mainboard are still functional and the console powers on but the top screen flashes then shuts off. Installation requires moving the coloured bezel from the old screen using the adhesive tab on the bottom right corner.

Handles Display and Audio in One Module

The assembly restores both video and stereo sound for the upper half of the handheld. It comfortably handles normal gameplay brightness and volume levels. Headroom runs out if the speaker wires are pulled during fitting — the connections are fragile and can tear — or if the digitizer on the lower screen is misaligned, which causes the system to power down after the top screen flashes. Test the screen before final assembly by connecting the top screen, bottom screen and Wi-Fi card while holding the battery to the terminals.

Highlights

  • Pre-installed speakers save soldering time
  • Tested before shipping ensures working unit
  • Bezel transfer uses existing adhesive
  • Drop-in repair fits original housing
  • Compatible with Nintendo DS Lite only

Specifications

No published specifications for this item yet.

Questions about this item

Does this top screen include the coloured bezel, or must I move the bezel from my old screen?

The bezel is not included; you must transfer the original bezel by pinching the adhesive at the bottom right corner and lifting it in one piece.

What is the correct way to test the screen before final installation?

Connect the top screen, bottom screen and Wi-Fi card, then hold the battery to the terminals with the logo facing outward to power the console.

What later issue would require replacing this screen again?

If the ribbon cable tears or the soldered speakers fail from fragile wire connections, the entire top screen assembly must be replaced.
