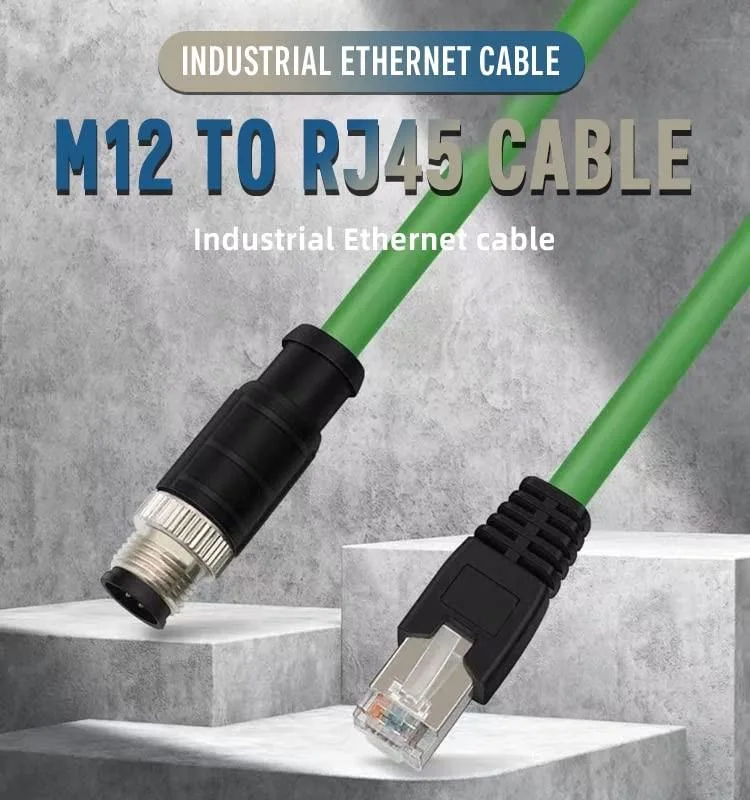

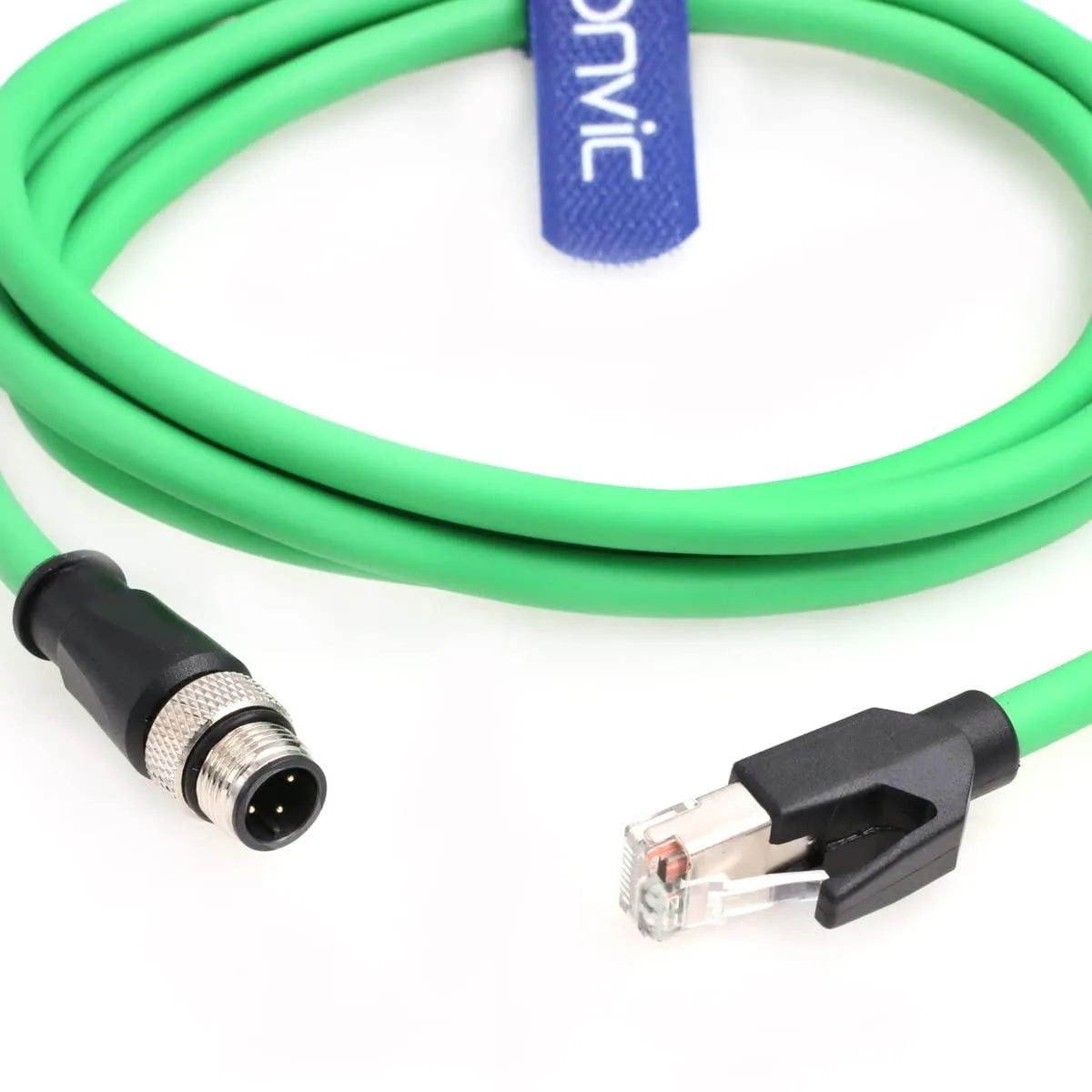

Green M12 D-code to RJ45 industrial Ethernet cable, 1M length

ARCTIC

ARCTIC 2 in 1 accessory M12 D-code RJ45 CAT5 1M green

SKU CH-G94B-0W4ER

An M12 D-code to RJ45 industrial Ethernet cable, shielded CAT5 with gold-plated contacts and IP68 rating for machinery and outdoor displays

  • Reliable industrial connectivity with gold-plated M12 D-code contacts
  • Durable high-flex PUR jacket resists oil heat and abrasion
  • IP68-rated waterproof design suits outdoor LED and urban lighting
  • Fully tested pin-to-pin continuity prevents signal breakdown
  • Connector rated for 5000 mating cycles ensures long service life

Industrial Ethernet cable for machine vision

This M12 D-code to RJ45 cable carries Gigabit Ethernet over a single foil twisted-pair CAT5e run with a blue PUR jacket. Gold-plated four-pin contacts and full pin-pin continuity testing give reliable links for Cognex cameras and similar industrial devices. The one-metre green assembly is rated IP68 for waterproof outdoor use. Over-moulded plugs with strain relief withstand vibration and shock in machinery environments.

Shielded construction handles oil.

High-flex vinyl material resists oil and heat while maintaining signal integrity in moving equipment. Complete EMC shielding protects data from electromagnetic interference on the factory floor. Each assembly passes high-voltage testing to confirm no breakdown risk under load. The connector design is rated for more than 5000 mating cycles without corrosion or contact degradation.

Ready-made length simplifies installation but

The fixed one-metre green cable eliminates field termination yet cannot be shortened or extended without replacing the assembly. Builders needing different runs must order custom lengths such as 3, 10 or 20 metres from the supplier. No software or configuration utilities are bundled; the cable is a passive link that works with any standard Gigabit Ethernet port.

Highlights

  • Reliable industrial connectivity with gold-plated M12 D-code contacts
  • Durable high-flex PUR jacket resists oil heat and abrasion
  • IP68-rated waterproof design suits outdoor LED and urban lighting
  • Fully tested pin-to-pin continuity prevents signal breakdown
  • Connector rated for 5000 mating cycles ensures long service life

Specifications

No published specifications for this item yet.

Questions about this item

How do I install the M12 D-code connector and which step do people get wrong?

Align the D-code keyway with the port, push straight in until the bayonet clicks, then tighten the coupling nut by hand; the common error is forcing the plug before the keyway seats, which bends the 4 gold-plated pins.

What maintenance or replacement will this 1 M CAT5 cable need later?

The M12 interface is rated for over 5000 mating cycles, so the connector should outlast many re-pins; inspect the PUR jacket and strain relief periodically for cuts or oil damage and replace the whole assembly if the shield or conductors are exposed.

What limit appears first under sustained industrial use?

The IP68 seal and 24 AWG conductors handle continuous vibration and temperature cycling, so the practical limit is physical damage to the over-moulded strain relief or jacket abrasion rather than signal degradation.
