Two 3 metre OM3 fibre patch cords with 12 core MPO female connectors, aqua LSZH jackets

ARCTIC

ARCTIC 2 in 1 Accessories OM3-150 12 Core 3m 2 Pack

SKU CH-YEGN-36CQV

A pair of 3-metre OM3-150 12-core MPO patch cords with PC end faces, Type B wiring, 0.6 dB insertion loss and LSZH jackets for 40G-100G links

  • Low insertion loss of .6 dB ensures efficient signal transmission
  • 12-core 6-channel design supports 40G-100G high-speed data rates
  • High return loss of 20 dB maintains stable signal quality

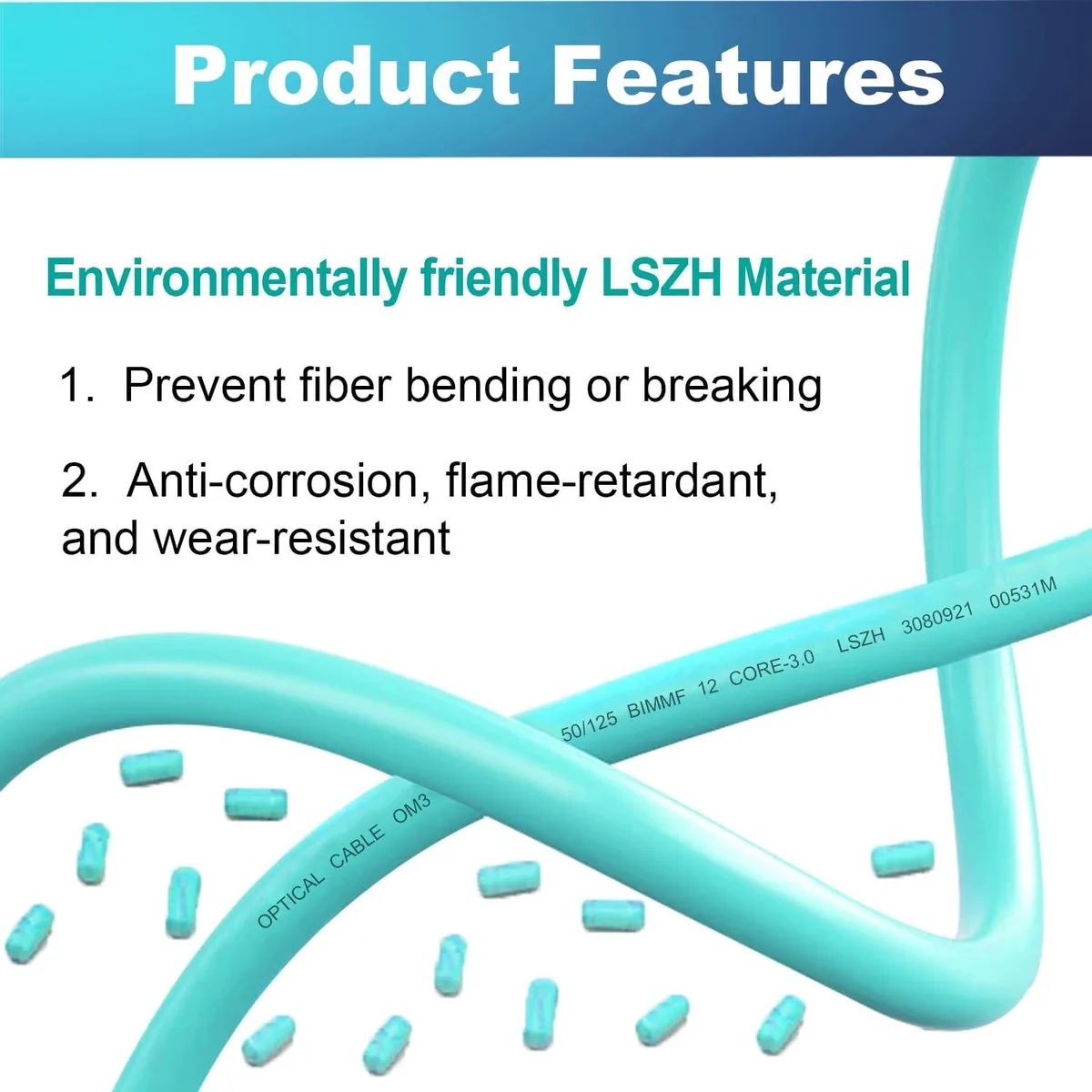

  • LSZH jacket provides flame-retardant and wear-resistant fibre protection
  • Rated for over 1000 mating cycles and -20 to 60 °C operation

Dual 3-metre MPO patch cords

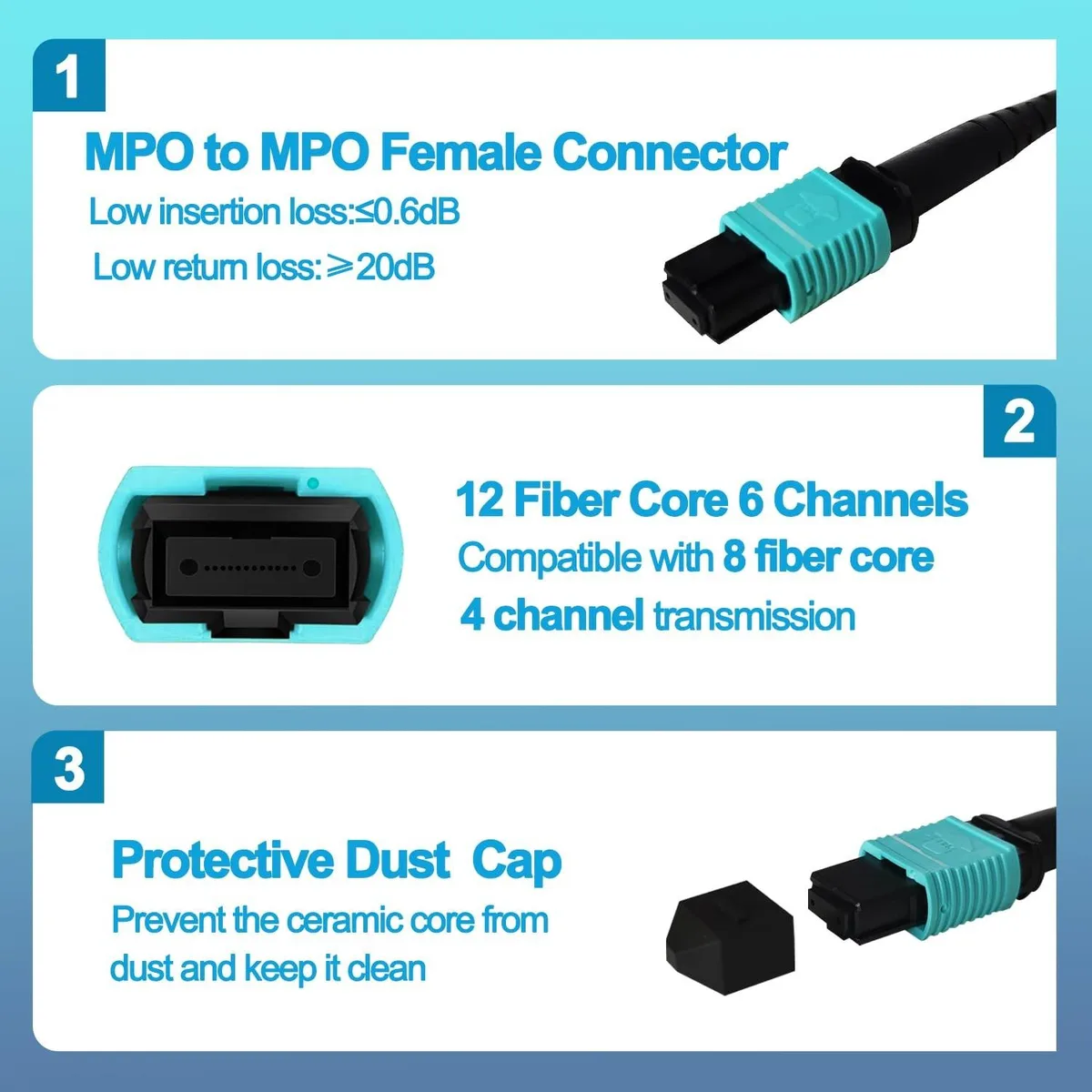

This pack contains two OM3-150 multi-mode cables, each 3 metres long with 12-core, 6-channel fibre and female-to-female MPO connectors. They use type B wiring and PC-polished end faces for 40 G to 100 G data-centre links.

Suited for high-density 40/100 G transceiver

Engineers building QSFP+ or QSFP28 patch panels in FTTX or data-centre racks will match the 12-core, 6-channel specification. Buyers who require single-mode fibre, angled-polish end faces or a different channel count should select another cable.

12-core 6-channel OM3-150 fibre

The cable carries twelve fibres arranged as six duplex channels on OM3-150 multi-mode glass, delivering the bandwidth needed for 40 G to 100 G Ethernet or InfiniBand runs up to 100 metres.

Highlights

  • Low insertion loss of .6 dB ensures efficient signal transmission
  • 12-core 6-channel design supports 40G-100G high-speed data rates
  • High return loss of 20 dB maintains stable signal quality
  • LSZH jacket provides flame-retardant and wear-resistant fibre protection
  • Rated for over 1000 mating cycles and -20 to 60 °C operation

Specifications

No published specifications for this item yet.

Questions about this item

How much heat does the OM3-150 cable generate during continuous 40G-100G data centre operation?

The passive fibre assembly produces no measurable heat; insertion loss is .6 dB and return loss 20 dB, so signal energy stays in the light path rather than converting to warmth.

What transceiver modules must I already own to use these 12-core MPO jumpers?

You need QSFP+ or QSFP28 modules with MPO female ports that accept 12-core 6-channel or 8-core 4-channel OM3-150 fibre.

Will the 3.0 mm LSZH jacket and type B wiring work with my existing 8-core 4-channel OM3 patch panels?

Yes, the 12-core 6-channel cable is explicitly compatible with 8-core 4-channel links and the LSZH sheath fits standard high-density panels.
