Sixty orange lever wire connectors in a kit, each with three ports and flip-up levers

Arborix

Arborix 3-Port Lever Wire Cap Connector Kit 60 pcs

SKU CH-PCQN-SR6PH

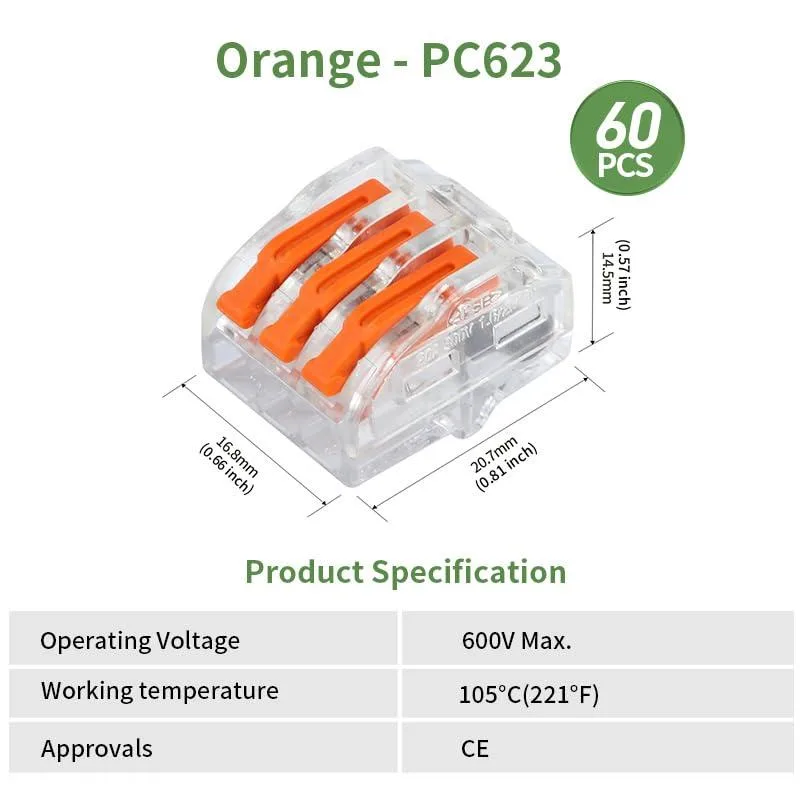

Kit of 60 lever wire connectors for tool-free splicing of solid, stranded and flexible wires from 0.2 mm² to 4 mm², rated 600 V and 105 °C

  • Color Mappingpc623_60
  • Tool-free 90-degree lever action speeds wiring
  • 60 connectors cover 0.2–4.0 mm² solid and stranded wire
  • Tin-plated copper and stainless springs deliver high conductivity
  • PC/PA housing rated 105 °C and flame retardant
  • Certified to IEC/EN 60998, GB/T 13140 and UL 486C standards

Arborix 3-Port Lever Wire Cap Kit

This kit provides 60 lever-operated wire connectors for quick, tool-free splicing. The cam-type mechanism accepts solid, stranded and flexible copper wires from 0.2 to 4.0 mm². Rated at 600 V and 105 °C, the connectors suit building wiring, appliance repair and lighting circuits. The orange levers give clear visual confirmation of a secure connection.

Tin-plated copper plates and stainless-steel springs

Each connector uses tin-plated high-conductivity copper plates with stainless-steel springs inside a flame-retardant PC/PA housing. The 90-degree lever action locks wires in two steps without screwdrivers or crimp tools. Connections can be released and reused, reducing waste on maintenance jobs. The design meets IEC/EN 60998, GB/T 13140 and UL 486C standards.

Handles 28 to 12 AWG solid and 28 to 14 AWG stranded

The three-port bodies accommodate a wide gauge range for residential and light-commercial circuits. They are not suited for conductors larger than 4 mm² or for aluminium wire. Installers needing higher voltage ratings or more than three conductors per block will require different connectors. The 60-piece pack covers multiple junction boxes but may fall short on large rewiring projects.

Highlights

  • Tool-free 90-degree lever action speeds wiring
  • 60 connectors cover 0.2–4.0 mm² solid and stranded wire
  • Tin-plated copper and stainless springs deliver high conductivity
  • PC/PA housing rated 105 °C and flame retardant
  • Certified to IEC/EN 60998, GB/T 13140 and UL 486C standards

Specifications

BrandArborix
Color Mappingpc623_60

Questions about this item

Can the orange levers on these 60 connectors be opened and closed repeatedly for circuit changes?

Yes, the lever mechanism is designed for tool-free reuse — lift the lever 90 degrees, insert the stripped wire, and press back to secure; it can be disassembled and reused multiple times.

Which wire gauge hits the 600 V / 105 °C rating limit first when loaded continuously?

The 4.0 mm² (12 AWG solid / 14 AWG stranded) upper end of the rated range reaches the thermal and voltage ceiling before smaller gauges.

How warm does the PC/PA housing get when all three ports carry full-rated current all day?

The housing is rated to 105 °C (221 °F); under maximum continuous load the connector body will approach but not exceed this temperature.
