Straight silver cable connector, 3/4 inch MNPT box connection, copper-free aluminium body

Appleton Century Crofts

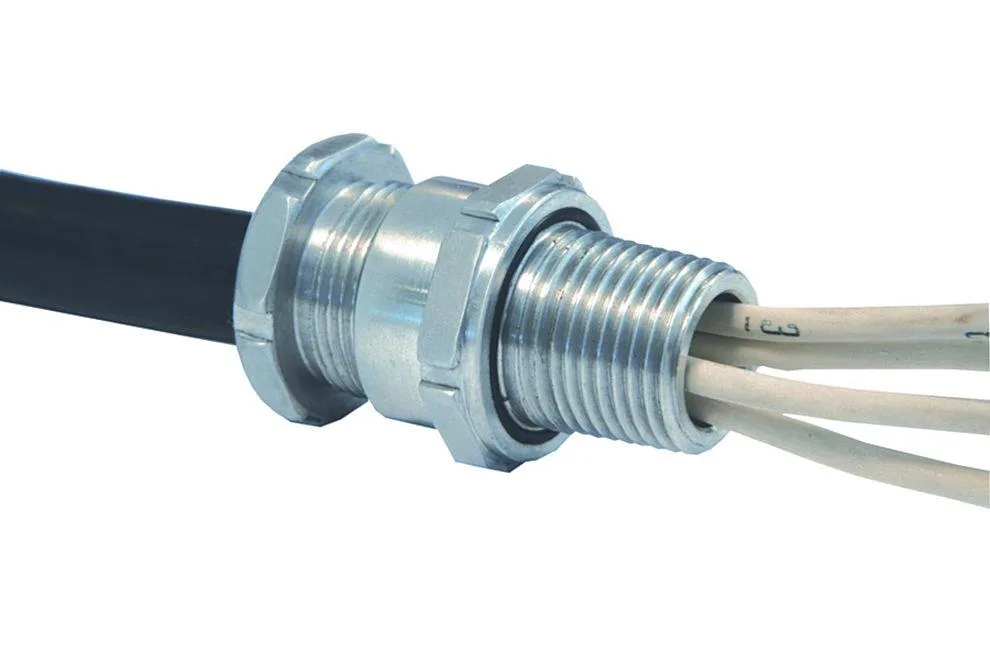

Appleton Century Crofts TC075055 Straight Cable Connector 3/4 in Silver

SKU CH-9X0E-D3THY

Connects cable 0.26 to 0.55 in diameter to a 3/4 in MNPT box, straight copper-free aluminium body, UL 2225 and UL 514B listed

  • TypeHazardous Location, Tray Cable
  • Length2.000
  • ColorSilver
  • Weight0.15
  • Straight connector fits 3/4 in MNPT box entries
  • Copper-free aluminium body resists corrosion in harsh environments
  • Silver finish identifies the connector at a glance
  • UL 2225 and UL 514B listings confirm hazardous-location suitability
  • Cord diameter range 0.26 in to 0.55 in covers common tray cables

Enhanced Rating Cord Connector

This Appleton Century Crofts TC075055 straight cable connector accepts cord diameters from 0.26 in to 0.55 in. It features a 3/4 in MNPT box connection and a copper-free aluminum body. The silver finish identifies the gland without a colour code. It is built for hazardous location tray cable use.

Installers needing a single straight connector

Suits electrical contractors terminating one tray cable run into a 3/4 in threaded entry. The lack of external strain relief means it fits tight enclosures where a relief gland would foul adjacent equipment. Not for installers who require an external strain relief fitting or an insulated throat connector.

Cord diameter range 0.26 in to 0.55 in

This range decides whether your cable seats and seals correctly in the gland. Measure the outer jacket before ordering; a cable outside these limits will not achieve the rated hazardous location seal. The connector meets UL 2225, UL 514B and C 22.2 No. 30 standards.

Highlights

  • Straight connector fits 3/4 in MNPT box entries
  • Copper-free aluminium body resists corrosion in harsh environments
  • Silver finish identifies the connector at a glance
  • UL 2225 and UL 514B listings confirm hazardous-location suitability
  • Cord diameter range 0.26 in to 0.55 in covers common tray cables

Specifications

BrandAppleton Electric
ModelTC075055
TypeHazardous Location, Tray Cable
Length2.000
ColorSilver
Weight0.15

Questions about this item

Which cord diameter should I match to the 0.26 in to 0.55 in range of this connector?

Measure the outside diameter of your cable; if it falls between 0.26 in and 0.55 in the connector will grip it securely without additional strain relief.

What does the 3/4 in MNPT box connection mean when I install this in an enclosure?

It threads into a standard 3/4 in NPT female entry, giving a 13/16 in projection from the box face to the end of the straight body.

Which standards cap the use of this copper-free aluminium connector in hazardous locations?

It is listed to UL 514B, UL 2225 and CSA C22.2 No. 30, so it meets the requirements for tray-cable fittings in classified areas.
