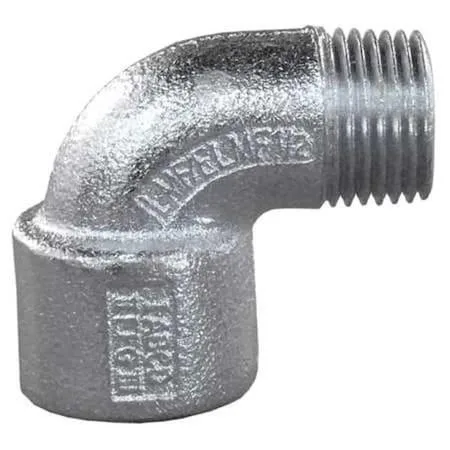

Aluminium 90-degree conduit elbow with threaded ends

Appleton Century Crofts

Appleton Century Crofts ELMF90-75-A 90 Deg Elbow 3/4 in Threaded Aluminum Conduit

SKU CH-84T6-W75WA

A 90-degree threaded aluminium elbow joins 3/4-inch IMC conduit in hazardous locations

  • TypeCable Management & Conduit
  • 90-degree turn for tight conduit routing
  • 3/4 inch female-to-male threads connect IMC conduit
  • Aluminium construction resists corrosion in harsh environments
  • Rated for Class I Division 1 and 2 hazardous locations
  • Compact 1 11/16 inch length fits confined spaces

Application fit

The Appleton Century Crofts ELMF90-75-A is a 90-degree threaded elbow designed for IMC and threaded rigid conduit runs. It suits electricians and maintenance crews routing 3/4 in conduit through hazardous-location installations. Buyers needing a straight coupling or a different trade size cannot use this fitting.

Hazardous-location rating

The aluminium body carries Class I Division 1 and 2 Groups A through D, Class II Division 1 and 2 Groups E through G, and Class III approvals. This rating allows the elbow to remain in service where flammable gases, combustible dusts or ignitable fibres are present. Installations outside those classifications do not require this level of certification.

Installation checks

Verify that the existing conduit is 3/4 in IMC or threaded rigid metal conduit with matching FNPT and MNPT ends. Confirm the 1 11/16 in overall length fits the available space and that the plain aluminium finish meets any local corrosion-resistance requirements. The fitting is not compatible with EMT, PVC or other conduit types.

Highlights

  • 90-degree turn for tight conduit routing
  • 3/4 inch female-to-male threads connect IMC conduit
  • Aluminium construction resists corrosion in harsh environments
  • Rated for Class I Division 1 and 2 hazardous locations
  • Compact 1 11/16 inch length fits confined spaces

Specifications

BrandAPPLETON ELECTRIC
TypeCable Management & Conduit

Questions about this item

Will the aluminum threads on the ELMF90-75-A elbow need anti-seize compound replaced over time?

Aluminum conduit elbows do not require thread compound replacement; the plain finish and threaded NPT connection are designed for permanent installation without scheduled maintenance.

What is the first limitation when pulling cable through this 90-degree elbow continuously?

The 1 11/16 inch overall length and sharp 90-degree bend radius create the primary pulling tension limit for 3/4 inch IMC conduit runs.

Does the aluminum elbow dissipate heat differently when conduit runs carry full load all day?

Aluminum construction naturally conducts heat away from conductors inside the 3/4 inch trade size conduit, and the plain finish adds no insulating layer.
