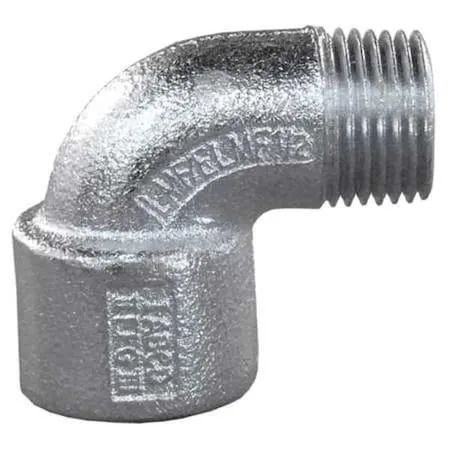

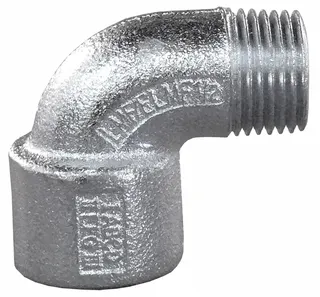

Appleton ELMF90-50 90-degree threaded iron conduit elbow with electroplated finish

Appleton Century Crofts

Appleton Century Crofts ELMF90-50 IMC 90 Deg Elbow 1/2 in Threaded Iron Powder Conduit

SKU CH-W1X6-GHFNV

A 90-degree threaded iron elbow connects 1/2 in IMC conduit with hazardous-location rating

  • TypeCable Management & Conduit
  • 90-degree turn routes conduit in tight spaces
  • 1/2-inch threaded ends join IMC and RMC securely
  • Iron body with electroplated finish resists corrosion
  • Rated for Class I Div 1/2 Groups A–D hazardous locations
  • 1-3/4-inch overall length fits standard box depths

Purpose-built conduit elbow

The Appleton Century Crofts ELMF90-50 is a 90-degree threaded elbow designed for IMC conduit systems. It connects 1/2 inch trade-size conduit runs in hazardous-location installations. Electrical contractors and maintenance crews use it to change direction while maintaining code-compliant raceway integrity. The iron body with electroplated finish resists corrosion in demanding industrial environments.

Hazardous-location rating limits

This fitting carries Class I Division 1 and 2 ratings for Groups A through D, Class II Division 1 and 2 for Groups E, F, G, and Class III classification. It is approved only for use with IMC and threaded rigid metal conduit of matching trade size. The female-to-male NPT thread orientation fixes the connection geometry at 90 degrees. Installers must verify that the overall length of 1 3/4 inches fits within the available enclosure space.

Replaces worn or mismatched elbows

The ELMF90-50 replaces damaged, corroded or incorrectly rated elbows in existing hazardous-area conduit runs. Upgrading to this fitting is worth it when the current elbow lacks the required Class I, II and III ratings or when thread condition compromises the seal. It is not suited for EMT, PVC or flexible conduit systems, nor for applications requiring a sweep radius larger than the standard 90-degree body.

Highlights

  • 90-degree turn routes conduit in tight spaces
  • 1/2-inch threaded ends join IMC and RMC securely
  • Iron body with electroplated finish resists corrosion
  • Rated for Class I Div 1/2 Groups A–D hazardous locations
  • 1-3/4-inch overall length fits standard box depths

Specifications

TypeCable Management & Conduit
BrandAPPLETON ELECTRIC

Questions about this item

Should I choose the 1/2 in trade size or a different version?

This fitting is made in a single 1/2 in trade size for IMC and threaded rigid conduit; select it when your conduit run uses that diameter.

What does the 90 degree elbow do once installed?

It changes the conduit direction by 90 degrees with female-to-male NPT threads, measuring 1 3/4 in overall length.

Which thread standard is used and what does it limit?

The ends are 1/2 in FNPT by 1/2 in MNPT, so connections are limited to NPT-threaded conduit and fittings of the same trade size.
