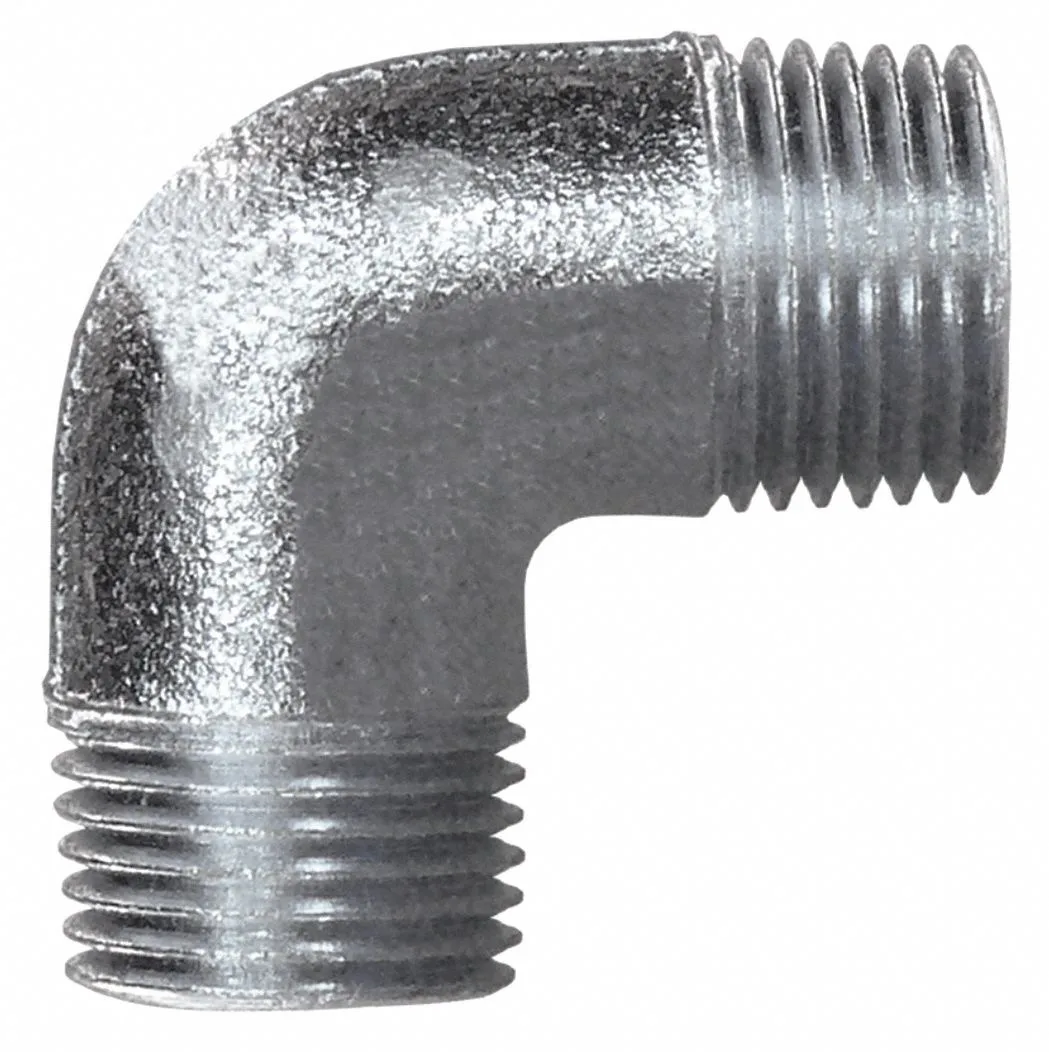

Iron electroplated 90-degree threaded elbow fitting, half-inch trade size

Appleton Century Crofts

Appleton Century Crofts ELM90-50 IMC 90 Deg Elbow 1/2 in Threaded Iron Electro conduit

SKU CH-Y58Y-5Y065

A 90-degree threaded iron elbow connects two half-inch IMC conduit runs in hazardous locations

  • TypeCable Management & Conduit
  • 90-degree turn routes conduit in tight spaces
  • 1/2-inch male threads connect IMC and threaded RMC
  • Iron construction with electroplated finish resists corrosion
  • Rated for Class I, II, III hazardous locations
  • 1-1/2-inch overall length fits standard installations

Application Fit

The Appleton ELM90-50 is a 90-degree threaded elbow designed for IMC conduit runs in hazardous locations. It connects two 1/2-inch male NPT ends and carries Class I, Division 1 and 2 ratings for Groups A through D, plus Class II and Class III coverage. Electricians specifying fittings for explosion-proof or dust-ignition-proof systems use this iron, electroplated fitting to change direction while maintaining the conduit’s protective integrity.

Installation Notes

The fitting threads directly onto 1/2-inch IMC or threaded RMC using standard pipe threads; no special tools are required beyond a conduit wrench. Because both ends are male, a coupling or female-threaded accessory is needed to join each side to the conduit system. The electroplated finish resists corrosion but can be damaged if overtightened, so apply firm hand pressure followed by a short wrench turn rather than full torque.

Compatibility Check

Verify that your existing conduit is 1/2-inch trade size IMC or threaded RMC with matching male NPT threads. Confirm the hazardous-area classification of the installation matches Class I Division 1 or 2, Groups A–D, Class II Division 1 or 2, Groups E–G, or Class III. Ensure the overall length of 1 1/2 inches fits within the available space between boxes or enclosures.

Highlights

  • 90-degree turn routes conduit in tight spaces
  • 1/2-inch male threads connect IMC and threaded RMC
  • Iron construction with electroplated finish resists corrosion
  • Rated for Class I, II, III hazardous locations
  • 1-1/2-inch overall length fits standard installations

Specifications

BrandAPPLETON ELECTRIC
TypeCable Management & Conduit

Questions about this item

How can I verify the ELM90-50 elbow is correctly installed?

The fitting should show a 90 degree turn with both 1/2 in male NPT ends fully engaged into IMC or threaded RMC conduit, and the electroplated iron surface should sit flush with no visible gaps.

What comes with the ELM90-50 and what must I supply?

The elbow itself is supplied; you must provide 1/2 in IMC or threaded RMC conduit, thread sealant suitable for hazardous locations, and any locknuts or bushings required by your installation code.

Which version of the ELM90-50 suits a 1/2 in IMC run in a Class I Division 1 area?

This single model carries Class I Division 1 and 2, Groups A, B, C, D and Class II Division 1 and 2, Groups E, F, G ratings, so it covers that application directly.
