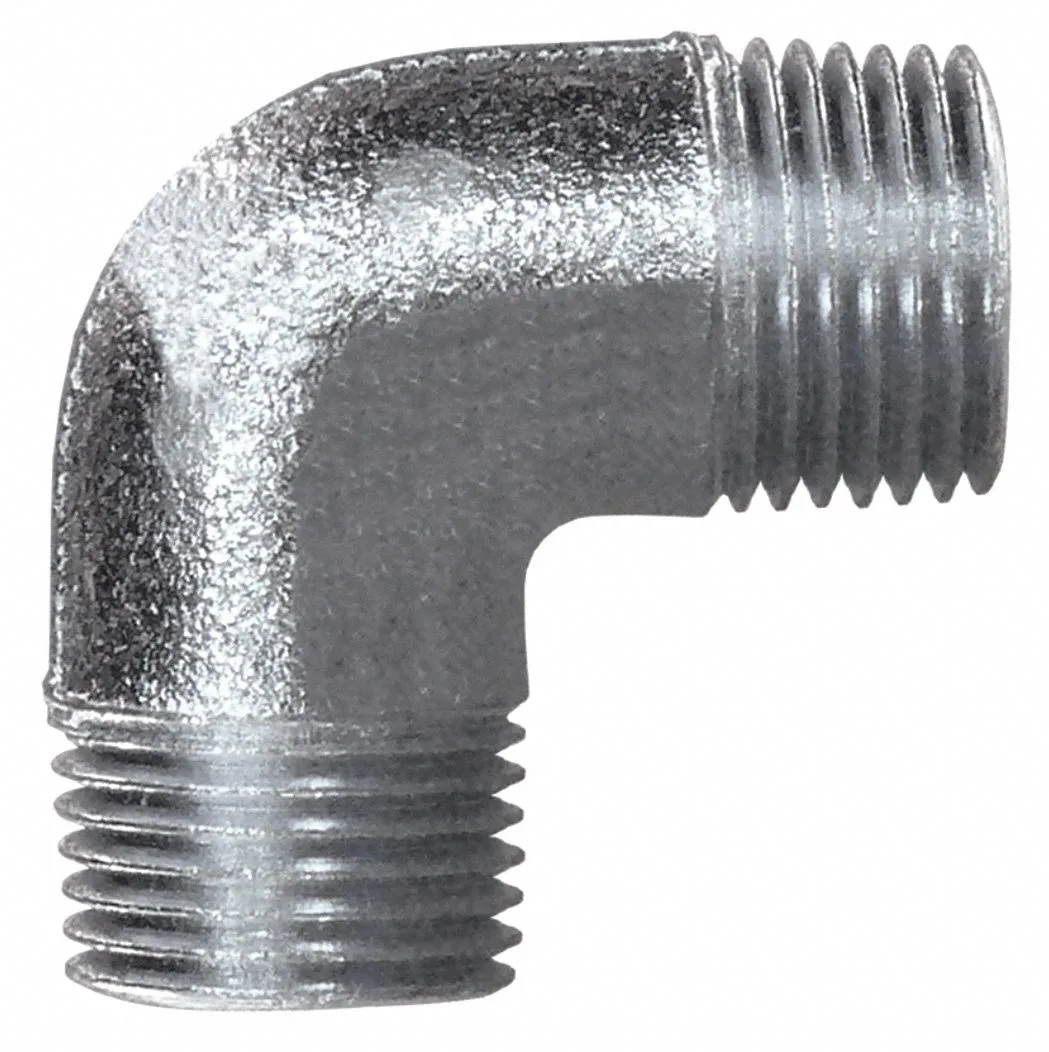

Appleton Century Crofts ELM90-50-A IMC 90 Deg Elbow 1/2 in Threaded Aluminum Conduit
Aluminum 90-degree elbow joins 1/2-inch IMC conduit with male threads and hazardous-location rating
- TypeCable Management & Conduit
- 90° turn routes conduit around tight corners
- Male-to-male threads join two IMC sections directly
- Aluminium body resists corrosion in harsh environments
- Hazardous-location rated for Class I, II and III areas
- Plain finish keeps surface ready for paint or coating
90-Degree IMC Elbow for Hazardous Locations
This Appleton Electric ELM90-50-A fitting joins two lengths of 1/2-inch IMC or threaded rigid conduit at a right angle. Its male-to-male NPT threads accept conduit on both ends without couplings. Aluminium construction resists corrosion in damp or chemical atmospheres. The fitting carries Class I Division 1 and 2 ratings for Groups A through D, plus Class II and III ratings for Groups E through G.
Threaded Trade Size 1/2 Inch
The single specification that decides fit is the 1/2-inch trade size with male NPT threads on both ports. It matches only conduit and fittings stamped for the same trade size and thread standard. Using a different trade size or a non-threaded coupling system will prevent assembly and void the hazardous-location rating.
Simple Threaded Assembly
Installation requires hand-threading each end into the conduit until tight, then securing with a wrench for the final turns. The short 1 1/2-inch overall length leaves little leverage space in tight boxes, so a stubby wrench helps. The most common error is cross-threading the aluminium threads when starting by hand; always turn slowly for the first few rotations.
Highlights
- 90° turn routes conduit around tight corners
- Male-to-male threads join two IMC sections directly
- Aluminium body resists corrosion in harsh environments
- Hazardous-location rated for Class I, II and III areas
- Plain finish keeps surface ready for paint or coating
Specifications
| Brand | APPLETON ELECTRIC |
|---|---|
| Type | Cable Management & Conduit |
Questions about this item
What does the 90-degree bend do for cable routing inside an enclosure?
The 90-degree elbow changes conduit direction by a right angle, letting IMC or threaded RMC run along walls or into boxes without sharp kinks that could damage conductors.
How do the 1/2-inch male NPT threads connect to the rest of the system?
Each end has a 1/2-inch MNPT thread that screws directly into threaded IMC, rigid conduit or a compatible fitting, forming a mechanically secure and electrically continuous joint.
What clearance is needed to mount this aluminum elbow?
The fitting measures 1 1/2 inches overall length, so allow at least that much straight run plus wrench space on each threaded end for installation.
