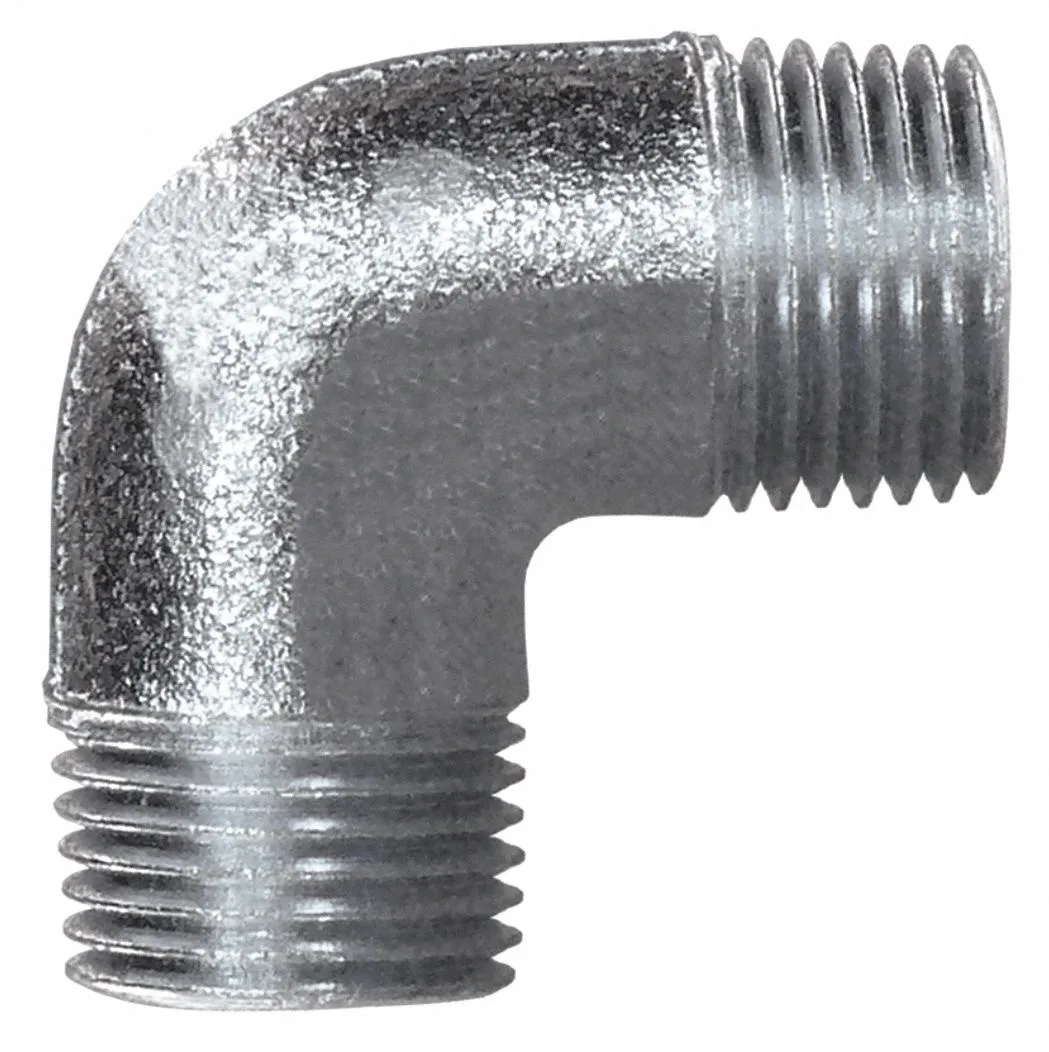

Silver iron 90-degree elbow conduit fitting, 3/4 inch trade size, threaded male-to-male ends

Appleton Century Crofts

Appleton Century Crofts 90° Elbow Conduit 3/4in Iron Silver

SKU CH-71TW-PMJJN

A 90-degree iron elbow connects 3/4-inch threaded conduit in hazardous locations

  • TypeConduit Fittings
  • Color/FinishSilver
  • MaterialHAWA
  • Length2.500
  • 90-degree turn routes conduit around tight corners
  • Iron construction with electroplated finish resists corrosion
  • Male-to-male 3/4 in NPT threads join threaded RMC or IMC
  • Rated for Class I, II, III hazardous locations
  • Compact 1 11/16 in overall length fits confined spaces

3/4in Iron Conduit Elbow

This 90° elbow connects two lengths of 3/4in IMC or threaded rigid conduit in a single plane change. The male-to-male NPT ends thread directly into couplings or boxes without extra adapters. It is built for hazardous-location runs rated Class I Division 1 and 2, Groups A through D, Class II Division 1 and 2, Groups E through G, and Class III. The electroplated iron body resists corrosion in damp or chemical environments.

Electroplated Iron Construction

The silver electroplated finish protects the iron substrate from moisture and mild chemical exposure during and after installation. Male threads on both ends eliminate the need for a separate nipple when joining two female-threaded fittings. The hazardous-location ratings mean the fitting maintains conduit-system integrity where flammable gases, vapours, dusts or fibres may be present. No gaskets or sealing compounds are included in the package.

1-11/16in Overall Length

The compact 1-11/16in centre-to-centre dimension fits tight bends in control panels, motor junctions and instrument enclosures. It handles standard 3/4in trade-size conduit pulls without restricting wire fill. The fitting is not suited for runs that require a larger trade size or a radius sweep instead of a sharp 90° turn. Buyers needing PVC-coated or stainless-steel bodies must select a different series.

Highlights

  • 90-degree turn routes conduit around tight corners
  • Iron construction with electroplated finish resists corrosion
  • Male-to-male 3/4 in NPT threads join threaded RMC or IMC
  • Rated for Class I, II, III hazardous locations
  • Compact 1 11/16 in overall length fits confined spaces

Specifications

TypeConduit Fittings
BrandAPPLETON ELECTRIC
Color/FinishSilver
MaterialHAWA
Length2.500

Questions about this item

Will the electroplated finish on this iron elbow need recoating after years in a damp industrial plant?

The electroplated silver finish on the iron body resists corrosion in the Class I, Division 1 and 2 hazardous locations it is rated for; recoating is not a scheduled maintenance item.

What is the first limitation when this 90-degree elbow carries maximum fill in a continuous 75 °C ambient?

The 1 11/16 in overall length and 3/4 in trade size fix the bending radius, so conduit fill limits and voltage drop become the governing constraints before the fitting itself.

Does the iron elbow become a noticeable heat source when energised conductors run through it all day?

The fitting is passive iron with no electrical consumption; it does not generate heat, and its temperature simply follows the conductors inside, staying within the 75 °C rating of the connected IMC or threaded RMC.
