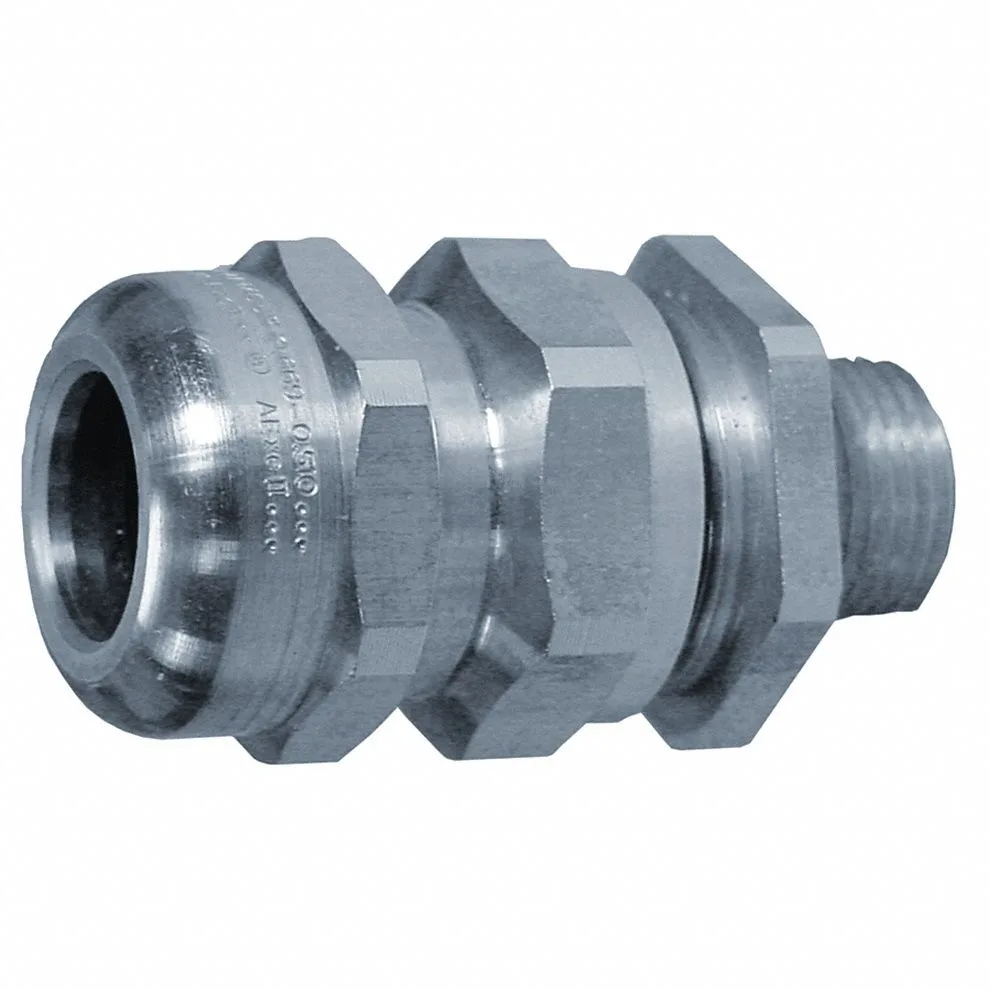

Nickel-plated brass straight conduit connector, trade size 1 1/2 in, grey finish

Appleton Century Crofts

Appleton Century Crofts 150162NB conduit fitting

SKU CH-DEA0-ECJW8

A straight nickel-plated brass connector for 1 1/2 inch jacketed metal-clad cable, rated for hazardous locations

  • TypeCable Management & Conduit
  • Suitable for hazardous areas with Class I Division 2 rating
  • Nickel-plated brass resists corrosion in demanding environments
  • Straight connector fits 1 1/2 in trade-size knockouts
  • Designed for jacketed metal-clad cable installations
  • Insulated-no design for direct conduit termination

Trade-size 1 1/2 conduit connector

This Appleton Century Crofts fitting joins jacketed metal-clad cable to a 1 1/2 in MNPT box entry. The straight nickel-plated brass body carries hazardous-location ratings for Class I Division 2 Groups A–D and Class II and III Divisions 1–2. It is supplied new for industrial and commercial wiring projects.

Installers needing hazardous-area approval

Electricians working in classified areas will find the required Division 2 and Division 1 ratings already certified. The fitting lacks insulated throat and strain-relief mesh, so buyers who need cable insulation protection or integrated pull relief must select a different model.

Simple threaded installation

The connector threads directly into a 1 1/2 in knockout and clamps the cable jacket with a standard gland nut. Common issues include cross-threading the brass body on steel enclosures and over-tightening the gland, which can crush the cable sheath.

Highlights

  • Suitable for hazardous areas with Class I Division 2 rating
  • Nickel-plated brass resists corrosion in demanding environments
  • Straight connector fits 1 1/2 in trade-size knockouts
  • Designed for jacketed metal-clad cable installations
  • Insulated-no design for direct conduit termination

Specifications

TypeCable Management & Conduit
BrandAPPLETON ELECTRIC

Questions about this item

What conduit size and type must I already have to connect this 1 1/2 in straight connector?

You need jacketed metal-clad cable sized for a 1 1/2 in trade-size knockout, because the fitting is made for that conduit type and trade size.

Will this nickel-plated brass fitting thread into my existing 1 1/2 in MNPT box hub?

Yes, the box connection is 1 1/2 in MNPT, so it threads straight into a matching female hub on the enclosure.

How can I confirm the fitting is properly seated after installation?

The connector should sit flush against the box face with the cable jacket fully inserted and the locknut tightened to the enclosure wall.
