Three-inch brass inline ball valve with lever handle

Apollo

Apollo 94ALF-100-01A 3 inch NPT brass ball valve bathware

SKU CH-K69F-1P4RZ

Full-port brass ball valve with 316 stainless-steel ball, PTFE seats and blow-out-proof stem rated to 400 psi CWP from -20 to 366 °F

  • TypeTraffic & Parking Lot
  • Full-port design maintains unrestricted flow through 3-inch pipe
  • Lead-free brass body meets potable-water safety requirements
  • 316 stainless steel ball resists corrosion in aggressive media
  • Blowout-proof stem prevents stem ejection under 400 psi pressure
  • PTFE seats and seals handle temperatures from -20 to 366 °F

Lead-free brass inline ball valve

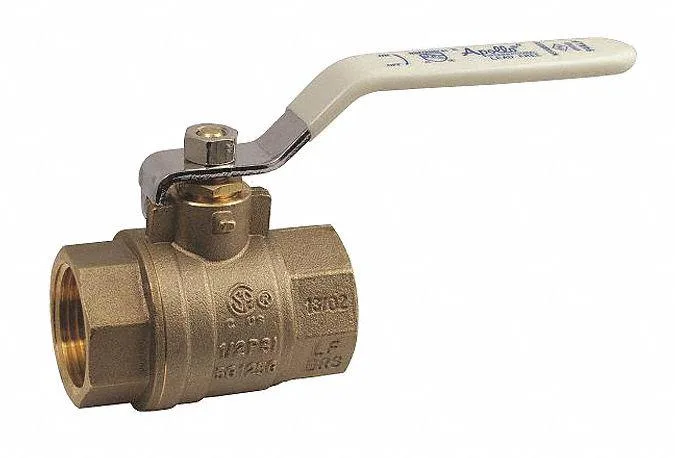

The Apollo 94ALF-100-01A is a 3-inch NPT full-port ball valve built from lead-free brass for potable water and general fluid control. Its inline two-piece body uses FNPT x FNPT connections and a blowout-proof stem for secure installation in plumbing and industrial piping systems.

Upgrade from standard brass valves

This valve replaces older brass fittings that contain lead, making it suitable for projects that must meet low-lead regulations. The jump is worth it when local codes require lead-free materials or when the media handled must avoid lead contamination entirely.

Pressure and temperature envelope

Rated at 400 psi CWP with an operating range of -20 to 366 degrees F, the valve handles high-pressure water and steam lines within those limits. The PTFE seats and seals plus a 316 stainless steel ball resist corrosion, but the lever handle and plated steel components set the practical ceiling for mechanical abuse.

Highlights

  • Full-port design maintains unrestricted flow through 3-inch pipe
  • Lead-free brass body meets potable-water safety requirements
  • 316 stainless steel ball resists corrosion in aggressive media
  • Blowout-proof stem prevents stem ejection under 400 psi pressure
  • PTFE seats and seals handle temperatures from -20 to 366 °F

Specifications

BrandAPOLLO
TypeTraffic & Parking Lot

Questions about this item

What thread size does the 3 inch NPT brass ball valve need for piping?

The valve uses FNPT x FNPT connections for a 3 inch pipe size, so both ends require matching 3 inch NPT male threads.

Which way should the lever handle point when installing the Apollo 94ALF-100-01A ball valve?

Install the valve so the lever handle aligns with the flow direction; the handle parallel to the pipe means open, perpendicular means closed.

When should the PTFE seats and body seal be inspected or replaced on this valve?

Inspect the PTFE seats and body seal during routine maintenance if leakage appears or after exposure to temperatures near the 366 degree F limit.
