Apollo

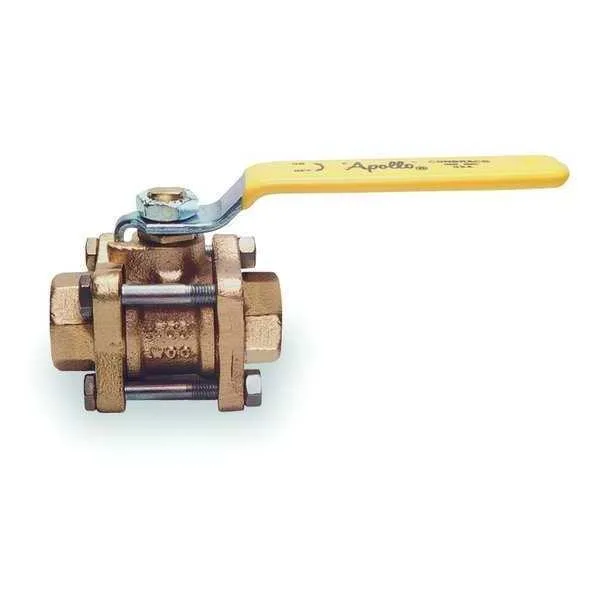

Apollo 8210601 1-1/4" FNPT Bronze Ball Valve
Full-port inline bronze ball valve rated 600 psi CWP with blowout-proof stem and lever handle
- TypeOther
- Full-port design maintains unrestricted flow
- Bronze B584 body resists corrosion in plumbing systems
- Blowout-proof stem prevents accidental ejection under pressure
- Rated 600 psi CWP and 150 psi WSP for demanding service
- Operates from -20 °F to 450 °F across wide temperature range
Apollo 8210601 Bronze Ball Valve — Purpose
The Apollo 8210601 is a 1-1/4 inch FNPT bronze ball valve built for inline plumbing service. Its full-port design and 600 psi CWP rating suit residential and light-commercial water, oil or gas lines that need reliable shut-off.
Verify Threads, Pressure and Temperature Limits
Confirm the existing piping uses 1-1/4 inch FNPT threads so the valve connects without adapters. Check that system pressure stays at or below 600 psi CWP and steam pressure does not exceed 150 psi WSP. Ensure operating temperatures remain within the -20 to 450 degrees F range.
Replaces Standard-Port or Lower-Rated Valves
This unit upgrades from standard-port valves that restrict flow or from valves rated below 600 psi CWP. The jump is worth it when full-bore passage, blowout-proof stem safety and RPTFE seats are required for longer service life in demanding installations.
Highlights
- Full-port design maintains unrestricted flow
- Bronze B584 body resists corrosion in plumbing systems
- Blowout-proof stem prevents accidental ejection under pressure
- Rated 600 psi CWP and 150 psi WSP for demanding service
- Operates from -20 °F to 450 °F across wide temperature range
Specifications
| Brand | APOLLO |
|---|---|
| Type | Other |
Questions about this item
What comes in the box with the Apollo 8210601 valve and what extra parts do I need to buy?
The package contains the 1-1/4" FNPT bronze ball valve itself. You will need to supply pipe thread sealant or tape and any nipples, unions or fittings required to connect it to your piping.
How do I choose between the available versions of this 1-1/4" bronze ball valve?
Only one version is listed: a full-port, three-piece inline valve with FNPT x FNPT ends, rated 600 psi CWP and 150 psi WSP. Select it when you need that exact pressure class and end connection.
What does the 600 psi CWP rating mean once the valve is installed in a real system?
It means the valve can handle up to 600 psi non-shock cold working pressure from -20 °F up to 450 °F, with steam service limited to 150 psi.
