Apollo
Apollo 75-107-01 1-1/2" FNPT Bronze Ball Valve
A 1-1/2 inch FNPT bronze ball valve rated for 600 psi CWP and 150 psi steam with a blowout-proof stem and pad-locking lever handle
- TypeOther
- Bronze body resists corrosion in water lines
- 600 psi CWP rating handles high-pressure systems
- Blowout-proof stem prevents dangerous stem ejection
- Pad-locking lever handle secures valve position
- RPTFE seats and PTFE seals ensure tight shutoff

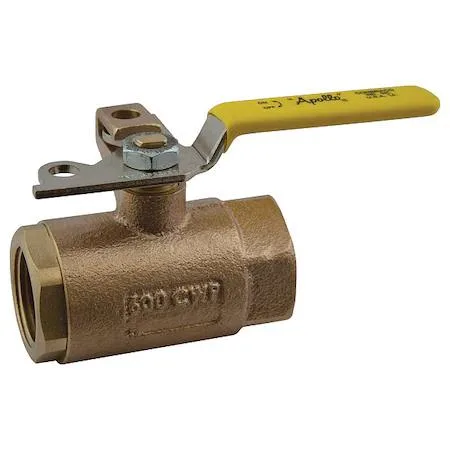

Bronze Ball Valve 1-1/2" FNPT
The Apollo 75-107-01 is a 1-1/2 inch inline bronze ball valve designed for plumbing systems requiring a standard port shut-off. It suits installers and maintenance crews needing a reliable quarter-turn valve for water, oil, or gas lines within the rated pressure and temperature range.
Build and Connections
The two-piece bronze body uses FNPT x FNPT threads for direct inline installation into female pipe fittings without additional adapters. A blowout-proof brass stem, PTFE body seal, and RPTFE seats provide durable sealing, while the chrome-plated brass ball resists corrosion. The pad-locking zinc-plated steel lever with vinyl grip allows secure manual operation and lockout capability.
Pressure and Temperature Limits
The valve handles a maximum cold working pressure of 600 psi and a maximum steam pressure of 150 psi. Operating temperature range spans 50 to 200 degrees Fahrenheit, so it is not suited for sub-zero ambient conditions or high-temperature steam above the 150 psi limit. California Proposition 65 warnings apply regarding chemical content.
Highlights
- Bronze body resists corrosion in water lines
- 600 psi CWP rating handles high-pressure systems
- Blowout-proof stem prevents dangerous stem ejection
- Pad-locking lever handle secures valve position
- RPTFE seats and PTFE seals ensure tight shutoff
Specifications
| Brand | APOLLO |
|---|---|
| Type | Other |
Questions about this item
What pressure does the 1-1/2" FNPT connection handle in practice?
The valve is rated for 600 psi cold working pressure and 150 psi steam working pressure on the FNPT ends.
What pipe size and thread type are required for this valve to fit?
It fits 1-1/2 inch pipe with female NPT threads on both inlet and outlet.
How is the valve installed, and what step is often missed?
Apply PTFE tape to the male threads, thread the valve on, then tighten with a wrench on the body flats; the step often missed is not using the body flats and stressing the joints instead.
