Apollo
Apollo 70LF14801 Manual 2-Way Ball Valve Bronze
Bronze two-way ball valve rated for 600 psi water and 150 psi steam with chrome-plated brass ball and lever handle
- TypeOther
- Bronze body resists corrosion for long service life
- 600 psi operating pressure handles demanding water lines
- 150 psi steam rating supports heating applications
- 29 in Hg vacuum rating allows suction-line use
- Chrome-plated brass ball reduces wear and leakage
Manual 2-Way Ball Valve Bronze

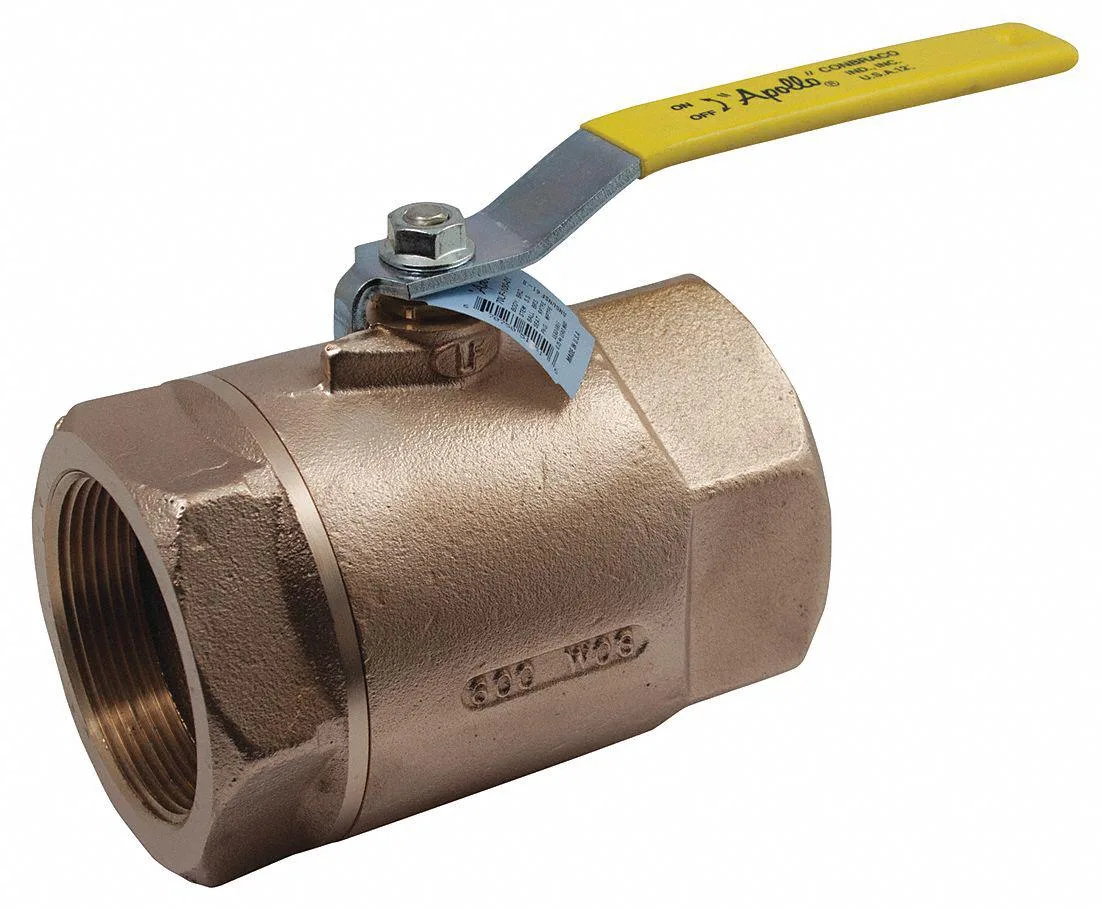

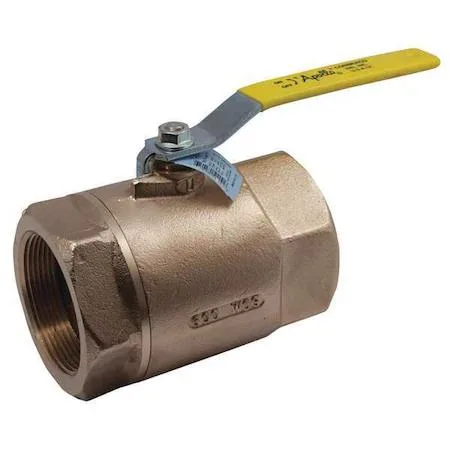

The Apollo 70LF14801 is a manual two-way ball valve constructed from bronze with a chrome-plated brass ball. It is designed for controlling the flow of steam and water in plumbing and industrial piping systems. The valve features a straight body style and a non-locking lever handle for straightforward operation.
Capacity and headroom: 600 psi water, 150 psi steam
Rated for a maximum operating pressure of 600 psi and a maximum steam pressure of 150 psi, this valve handles typical hydronic and low-pressure steam applications. It is not rated for combustible gas service, limiting its use to compatible water and steam lines. Vacuum service is supported up to 29 in Hg for applicable installations.
Two-piece NPT connection fits standard piping
The two-piece body uses NPT threads for direct integration into threaded pipe networks without special tools or adapters. A standard port design maintains flow while the bronze construction resists corrosion in water and steam environments. California Proposition 65 warnings apply due to chemical content.
Highlights
- Bronze body resists corrosion for long service life
- 600 psi operating pressure handles demanding water lines
- 150 psi steam rating supports heating applications
- 29 in Hg vacuum rating allows suction-line use
- Chrome-plated brass ball reduces wear and leakage
Specifications
| Brand | APOLLO |
|---|---|
| Type | Other |
Questions about this item
Will the 2 in nominal valve size match my existing NPT pipework?
The valve uses NPT threads and a 2 in nominal size, so it connects directly to standard NPT piping of the same diameter.
How can I verify the 600 psi operating pressure rating after installation?
Pressurise the line to its normal working pressure and check for leaks at the body joints and stem seal; the valve is rated for 600 psi non-shock cold working pressure.
Does the package include flange gaskets or pipe sealant for the NPT connections?
The valve ships as the bronze two-piece body with chrome-plated brass ball and lever handle only; gaskets and thread sealant are not included.
