Apollo
Apollo 36LF20301 Water Pressure Reducing Valve 1/2 In
Reduces incoming water pressure to an adjustable 25-75 psi range with a factory setting of 50 psi, using lead-free bronze construction certified to ASSE 1003 and CA AB1953 standards
- TypeOther
- Adjustable pressure range 25 to 75 psi for flexible installation
- Factory set at 50 psi for immediate balanced flow
- Lead-free bronze body meets CA AB1953 and VT ACT 193 standards
- Certified to ASSE 1003 and CSA B356 for code compliance
- Rated to 300 psi working pressure and 180°F max temperature

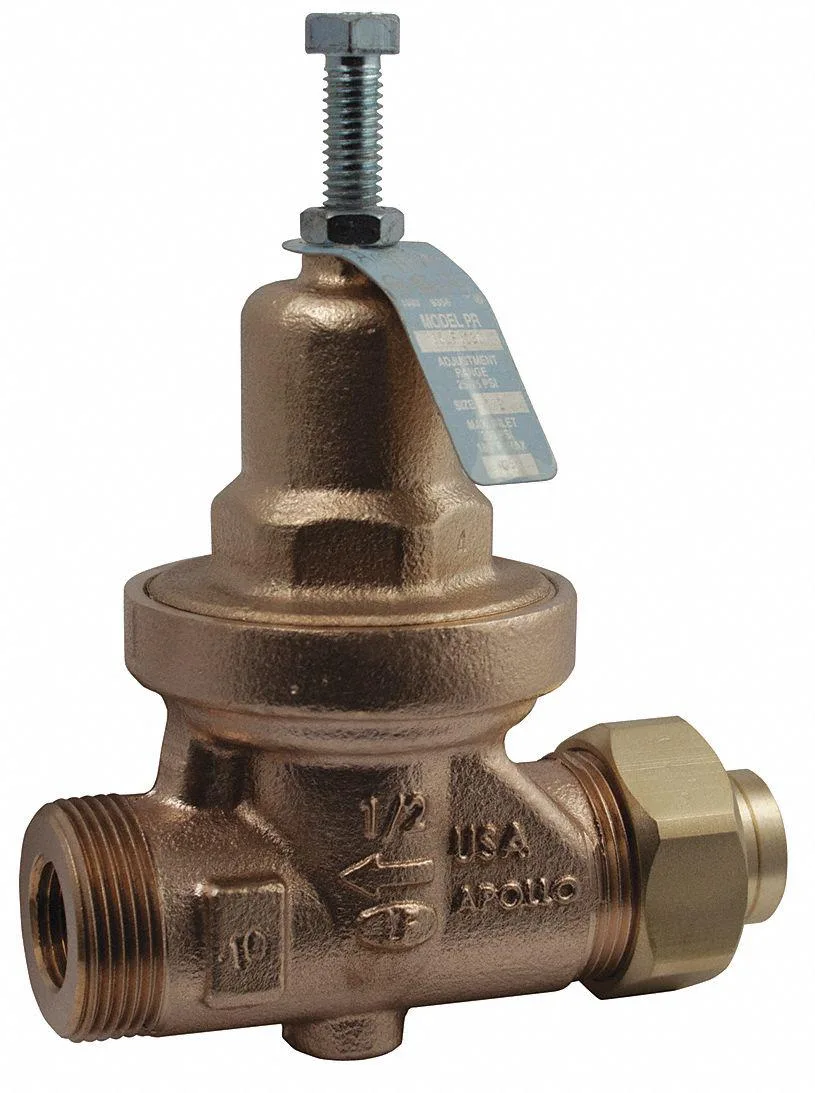

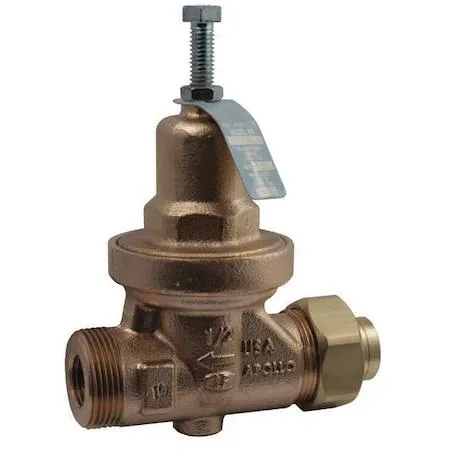

Pressure Reducing Valve 1/2 In
The Apollo 36LF20301 is a water pressure reducing valve built from lead free bronze with 1/2 inch NPT connections. It suits residential or light commercial plumbing where incoming supply pressure must be lowered to a safe, consistent level for fixtures and appliances.
Adjustable Range 25 to 75 PSI
The valve adjusts from 25 to 75 psi and is factory set at 50 psi, with a maximum working pressure of 300 psi. It handles water temperatures up to 180 degrees Fahrenheit and meets ASSE 1003 and CSA B356 standards for performance and safety compliance.
Replaces Worn or Missing Regulators
This unit replaces a failed or absent pressure regulator to protect piping, water heaters and fixtures from excess supply pressure. The jump is worth it when pressure tests show spikes above 75 psi or when local code requires a listed, lead free valve certified to CA AB1953 and VT ACT 193.
Highlights
- Adjustable pressure range 25 to 75 psi for flexible installation
- Factory set at 50 psi for immediate balanced flow
- Lead-free bronze body meets CA AB1953 and VT ACT 193 standards
- Certified to ASSE 1003 and CSA B356 for code compliance
- Rated to 300 psi working pressure and 180°F max temperature
Specifications
| Brand | APOLLO |
|---|---|
| Type | Other |
Questions about this item
Which adjustable pressure range should I select for a typical home supply?
The valve adjusts from 25 to 75 psi and ships preset at 50 psi, so most residential installs can use it straight from the box.
What does the 300 psi maximum working pressure mean once the valve is installed?
It means the bronze body and internals are rated to withstand supply spikes up to 300 psi without damage, while the valve continues to regulate downstream pressure.
How does the 1/2 inch NPT connection limit the flow I can expect?
The half-inch NPT threads set the pipe size, so peak flow will be governed by that bore and the 25-75 psi adjustment range rather than by a larger port.
