APC AP5717 17" Rack LCD KVM Switch 1 Port
A 17-inch rack-mount LCD console with integrated keyboard and touchpad controls a single server via PS/2 or USB KVM cables and powers down automatically when closed
- TypeD-Sub, PS/2
- Console ConnectorsPS/2 terminations Standard VGA connector
- Computer Connections1 Port
- Power FeaturesPower tilt sensor - Save power by automatically powering dow
- FeaturesStatus Indicator LED's - Provides a quick visual indication
- DimensionsMaximum Size: 24.17" x 18.97" x 1.73"
- 17-inch rack LCD console for direct server access
- Single-port KVM switch controls one computer
- Power tilt sensor saves energy when console is closed
- Status indicator LEDs show unit state at a glance
- Rear 1U mounting frees rack space for other gear
17-Inch Rack LCD Console

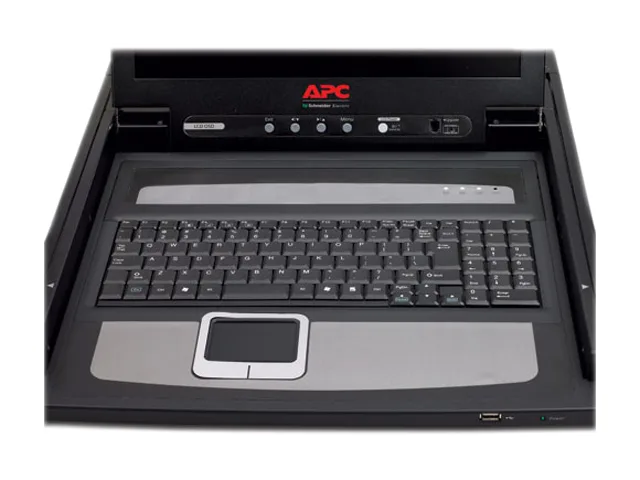

The APC AP5717 integrates a 17-inch display, keyboard and touchpad into a single 1U rack-mountable drawer. It provides direct PS/2 and VGA console access to one connected server or KVM switch. The unit is designed for data-centre administrators who need local hardware control without a separate monitor or crash cart.
Suited for Single-Server Management
This console suits operators managing a single rack-mounted server or a KVM switch with PS/2 and VGA ports. It is not intended for environments that require multi-port switching, digital video inputs such as HDMI or DisplayPort, or USB-only server connections. Buyers needing simultaneous access to multiple systems should consider a multi-port KVM solution.
Straightforward Rack Installation
The package includes a single-user rack-mount kit, PS/2 and USB KVM cables, plus both C13-C14 and NEMA 5-15 power cords for immediate setup. A power-tilt sensor automatically powers down the display when the drawer is closed, reducing energy use. Ensure the rack depth accommodates the 24.17-inch maximum size and verify PS/2 and VGA compatibility on the target server before mounting.
Highlights
- 17-inch rack LCD console for direct server access
- Single-port KVM switch controls one computer
- Power tilt sensor saves energy when console is closed
- Status indicator LEDs show unit state at a glance
- Rear 1U mounting frees rack space for other gear
Specifications
| Brand | APC |
|---|---|
| Model | AP5717 |
| Type | D-Sub, PS/2 |
| Console Connectors | PS/2 terminations Standard VGA connector |
| Computer Connections | 1 Port |
| Power Features | Power tilt sensor - Save power by automatically powering down the device when it is closed. |
| Features | Status Indicator LED's - Provides a quick visual indication of your unit's status. Allows for rear mounting of 1U device - Easily mount a KVM switch in the same rack space. |
| Dimensions | Maximum Size: 24.17" x 18.97" x 1.73" |
| Weight | 34.98 lbs |
| Package Contents | C13-C14 power cord, Documentation CD, Firmware upgrade cable, Installation guide, NEMA 5-15 power cord, PS2 KVM cable, Single user rack mount kit, USB cable, USB KVM cable |
| Shipping weight | 18.14 kg |
| Package size | 838 × 686 × 152 mm |
Questions about this item
Do I need a server with a VGA port and PS/2 keyboard and mouse connectors to use the 17" LCD console?
Yes, the console connects to one computer using the included PS/2 KVM cable for keyboard and mouse and a standard VGA connector for video.
Can I mount this 1U console above a legacy 1U KVM switch in the same rack space?
The unit allows rear mounting of a 1U device so you can keep an existing KVM switch directly behind it in the same rack area.
How do I confirm the console is operating normally after installation?
The status indicator LEDs on the front panel give a quick visual indication of the unit's status once it is powered on.
