Black repeater box with two coiled cables ending in 2.5 mm and 3.5 mm plugs

Aomoproing

Aomoproing RC-108 K-Port Two-Way Radio Repeater Box

SKU CH-BCA7-DH7QX

Connects two handheld radios via K-port cables to extend communication range beyond 10 km

  • TypeAccessory
  • Extends communication range beyond 10 km using two handheld radios
  • Simple setup connects via 2.5 mm and 3.5 mm audio jacks
  • Works with Kenwood K-port and compatible 2-pin radios
  • Passive operation requires no external power supply
  • Includes two cables totalling 190 cm for flexible placement

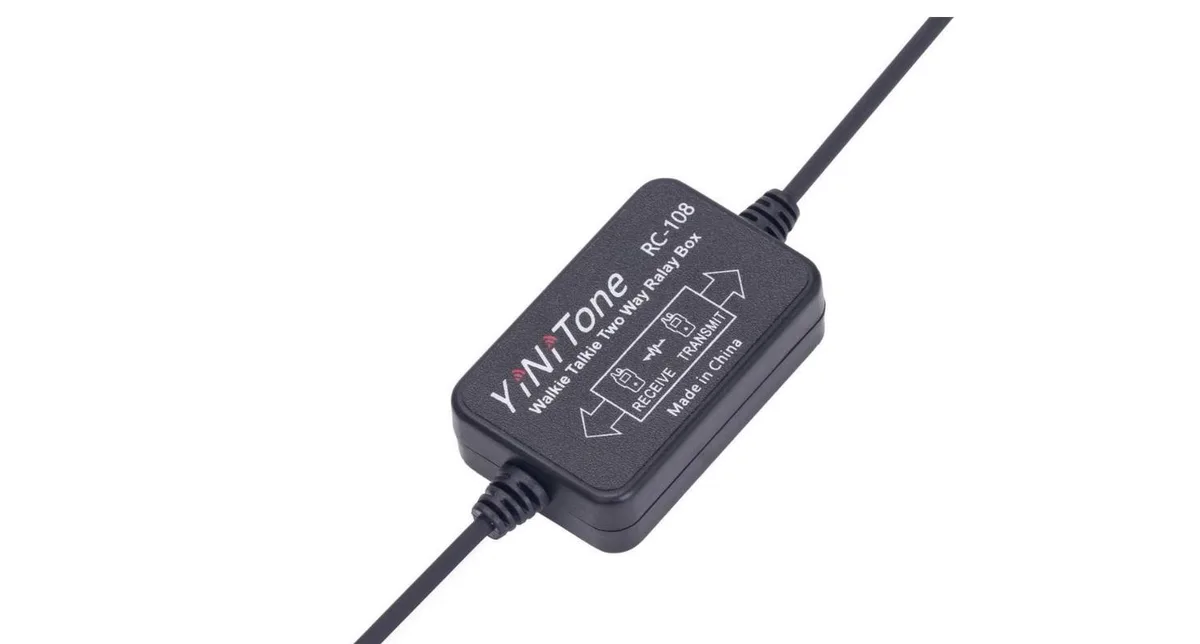

RC-108 K-Port Repeater Box

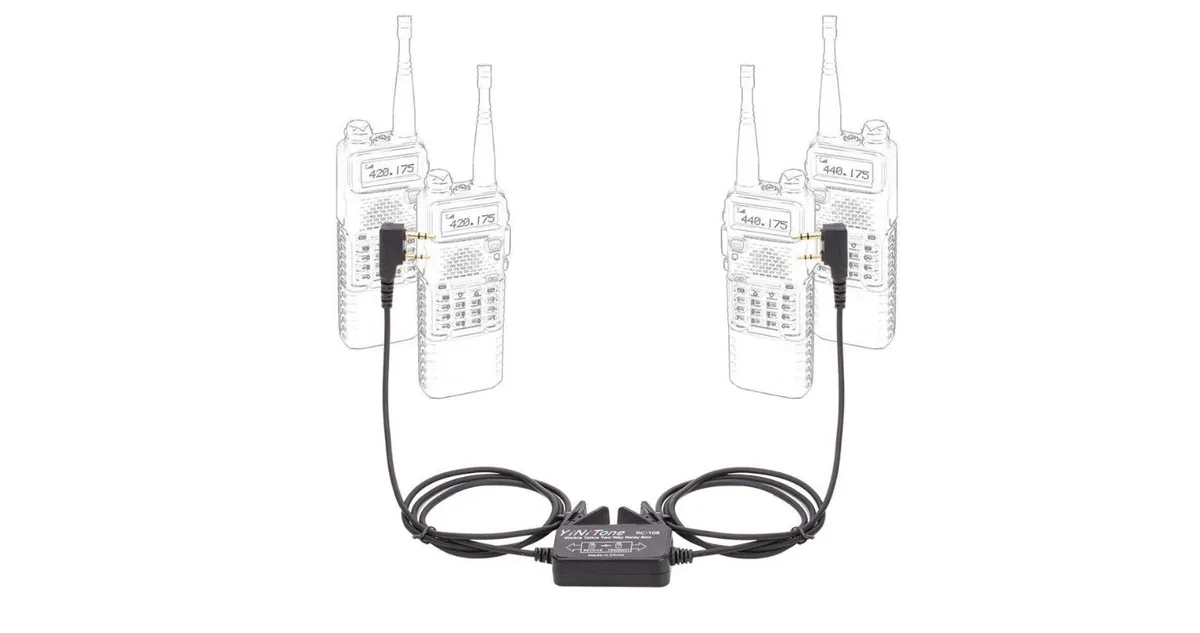

The RC-108 K-Port repeater box links two handheld radios to extend communication range beyond standard limits. It suits operators who need longer-distance contact without installing a fixed base station or powered repeater. The unit connects directly to the external mic and speaker ports of compatible handsets. No external power source is required for operation.

Passive Operation With Long Cables

The box operates passively, drawing no power and adding no fan noise or electrical load to the system. Two supplied cables measure approximately 190 cm in total length, giving flexibility when positioning the paired radios. The K-port connectors accept 2.5 mm and 3.5 mm plugs found on many Kenwood-style accessories. Installation only requires plugging the cables into the handheld units.

Extends Range Above 10 KM

The repeater enables two-way communication at distances above 10 km where terrain and radio power allow. It is designed for radios operating in the 400-470 MHz band with typical 5 W output. The jump is worthwhile when urban or obstructed environments cut direct range to 1-2 km. It does not suit users who need cross-band repeating, digital mode bridging or a powered amplifier for weaker handsets.

Highlights

  • Extends communication range beyond 10 km using two handheld radios
  • Simple setup connects via 2.5 mm and 3.5 mm audio jacks
  • Works with Kenwood K-port and compatible 2-pin radios
  • Passive operation requires no external power supply
  • Includes two cables totalling 190 cm for flexible placement

Specifications

TypeAccessory

Questions about this item

How do I install the RC-108 repeater box with two handheld radios?

Connect each radio's 2.5 mm and 3.5 mm headset jacks to the K-Port cables; no external power supply is required and no radio modification is needed.

What maintenance will the repeater box need over time?

Inspect the 190 cm cables and K-Port connectors periodically for wear or corrosion; the unit itself has no internal batteries or moving parts to service.

What range limit appears first when using this repeater continuously?

The relay extends coverage above 10 km line-of-sight, but dense urban buildings will reduce effective distance to 1-2 km regardless of the repeater.
