M.2 2230 Wi-Fi 6 card with heatsink and two antennas

Aomoproing

Aomoproing Intel AX200 Wi-Fi 6 Desktop Kit Bluetooth 5.1 M.2 2230

SKU CH-BHYW-7SS2P

Adds Wi-Fi 6 and Bluetooth 5.1 to a desktop via an M.2 2230 Key E slot, delivering up to 2400 Mbps on 5 GHz with MU-MIMO and OFDMA support

  • TypeM.2 Wi-FI Adapter
  • Wi-Fi 6 upgrade for desktop with Intel AX200 chipset
  • Dual-band 2.4 and 5 GHz operation up to 2400 Mbps on 5 GHz
  • Bluetooth 5.1 built-in for keyboards, mice and peripherals
  • M.2 2230 E-Key form factor with heatsink for stable operation
  • Windows 10 64-bit only, requires 160 MHz router for top speed

Desktop Wi-Fi 6 Upgrade Kit

This Intel AX200 kit adds Wi-Fi 6 and Bluetooth 5.1 to a desktop through an M.2 2230 E Key slot. It targets builders who want faster wireless speeds and modern peripheral pairing without running Ethernet cables. The package includes two external antennas and a heatsink for sustained operation. It is not for systems that only offer an M.2 Key E slot wired for Intel CNVi.

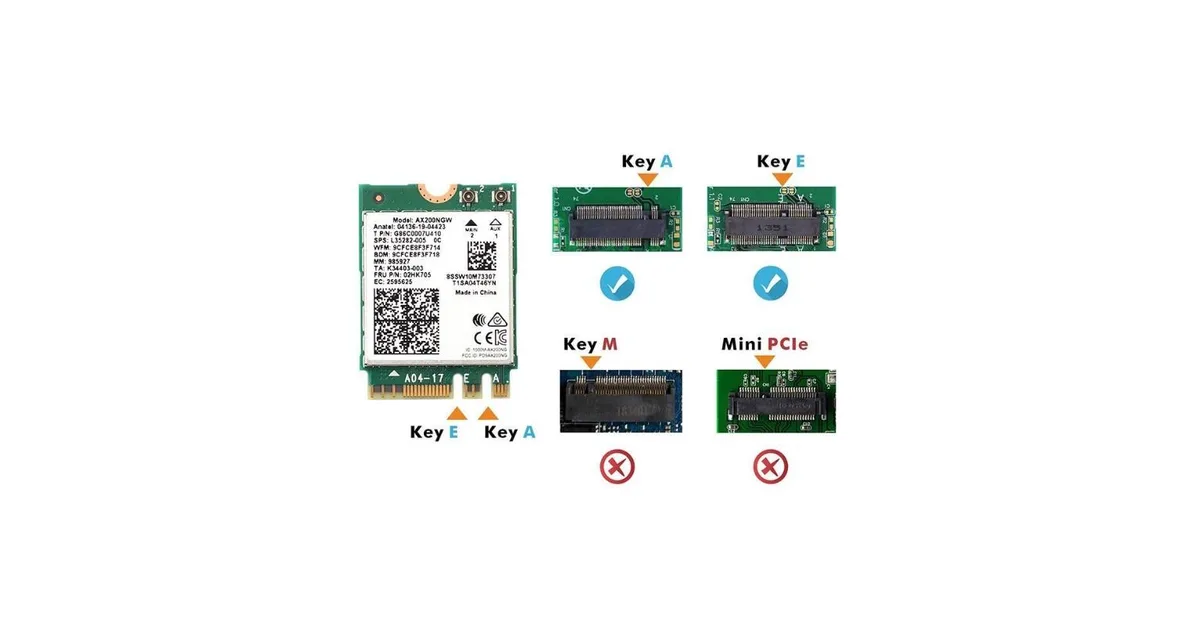

M.2 2230 E Key Interface Limits

The adapter requires a motherboard M.2 2230 Key E slot that is not implemented as Intel CNVi; CNVi wired slots will not work with this card. Wireless throughput reaches the stated rates only when the router supports 802.11ax with a 160 MHz channel. Driver support is limited to Windows 10 64-bit, so other operating systems cannot use the device.

2400 Mbps Peak and Bluetooth 5.1 Headroom

On 5 GHz the link can reach 2400 Mbps with a compatible router, while 2.4 GHz tops out at 574 Mbps. MU-MIMO and OFDMA keep latency low when several devices share the network. Bluetooth 5.1 handles keyboards, mice and audio peripherals with ease. The kit cannot serve buyers who need Linux or macOS drivers or who have only CNVi slots.

Highlights

  • Wi-Fi 6 upgrade for desktop with Intel AX200 chipset
  • Dual-band 2.4 and 5 GHz operation up to 2400 Mbps on 5 GHz
  • Bluetooth 5.1 built-in for keyboards, mice and peripherals
  • M.2 2230 E-Key form factor with heatsink for stable operation
  • Windows 10 64-bit only, requires 160 MHz router for top speed

Specifications

TypeM.2 Wi-FI Adapter

Questions about this item

Which kit should I pick if my motherboard has an M.2 2230 E-key slot but also supports Intel CNVi?

This kit uses an AX200NGW module that fits M.2 2230 E-key slots, but it will not work on boards that rely on integrated CNVi Wi-Fi/BT.

What does the 2400 Mbps figure mean once the card is installed in my PC?

That is the maximum 5 GHz link rate with a Wi-Fi 6 router using 160 MHz channels; the 2.4 GHz band tops out at 574 Mbps.

What interface does the adapter use and what does it limit in practice?

It connects via M.2 2230 E-key and requires Windows 10 64-bit; CNVi-only slots are not supported.
