Four small white PoE splitters with ethernet ports and short power cables

ANVISION AV-PS05 5V PoE Splitter 4-Pack 100Mbps

SKU CH-JVE9-3TSVV

Four splitters convert IEEE 802.3af PoE into 5 V 2.4 A power plus 100 Mbps Ethernet for non-PoE devices

  • Interfaceethernet
  • Powerline Speeds100 megabits_per_second
  • Connection Speeds100 megabits_per_second
  • Weight0.16 kilograms
  • Converts 48 V PoE into 5 V 2.4 A power plus 100 Mbps data for non-PoE cameras
  • Plug-and-play setup needs no configuration to extend networks where outlets are absent

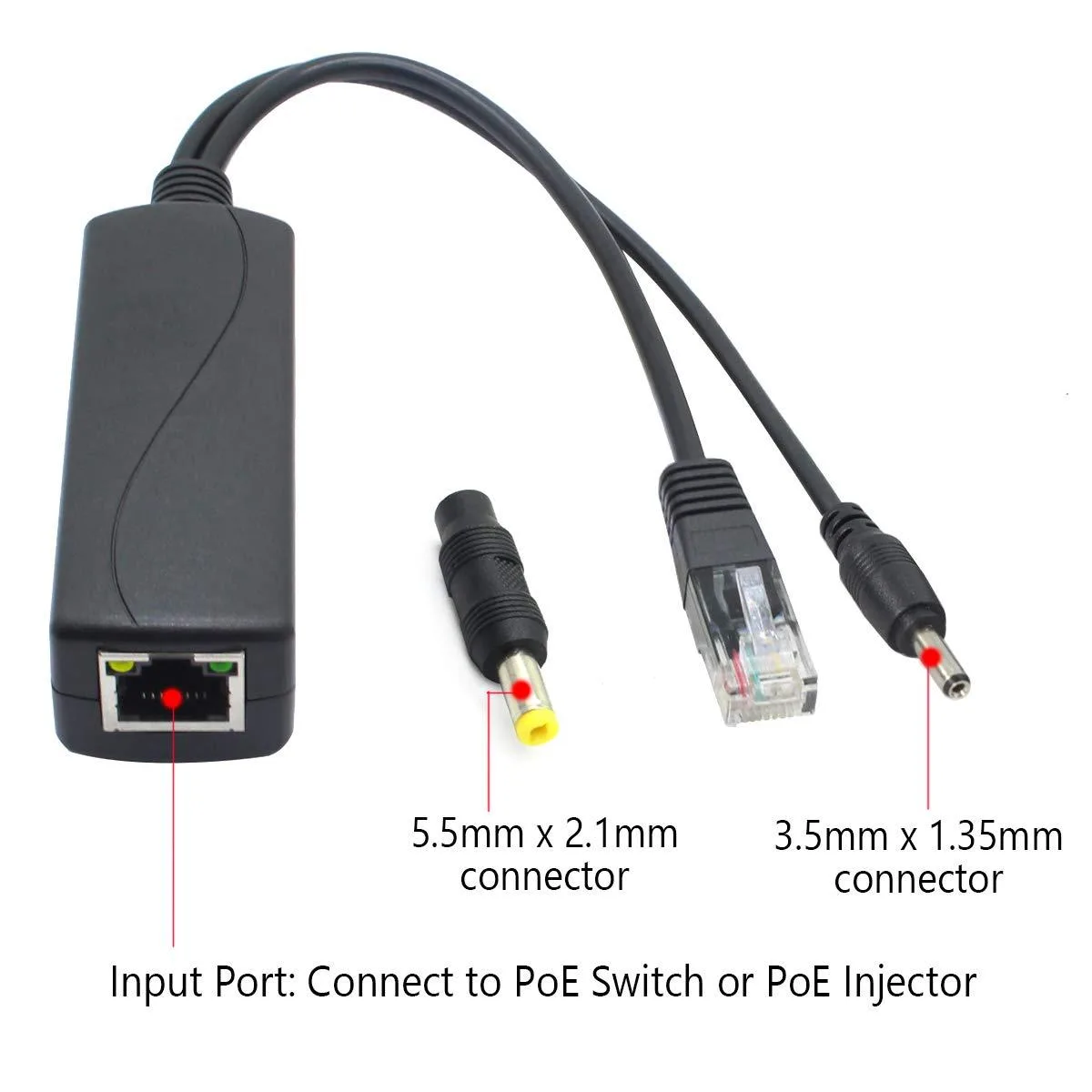

  • Two DC plug sizes — 3.5 × 1.35 mm and 5.5 × 2.1 mm — fit common IP-camera power inputs
  • Four splitters in one pack power multiple devices from a single PoE switch or injector
  • IEEE 802.3af compliant input accepts 44–56 VDC and operates from –10 °C to 45 °C

Four-Pack PoE Splitter for 5V Devices

The ANVISION AV-PS05 four-pack separates a PoE signal into 5V DC power and 10/100Mbps ethernet data. Each unit accepts IEEE 802.3af input from a PoE switch or injector and delivers up to 12 watts. The kit suits installers deploying multiple IP cameras or other 5V non-PoE devices where mains power is unavailable.

Plug-and-Play Setup with Connector Choice

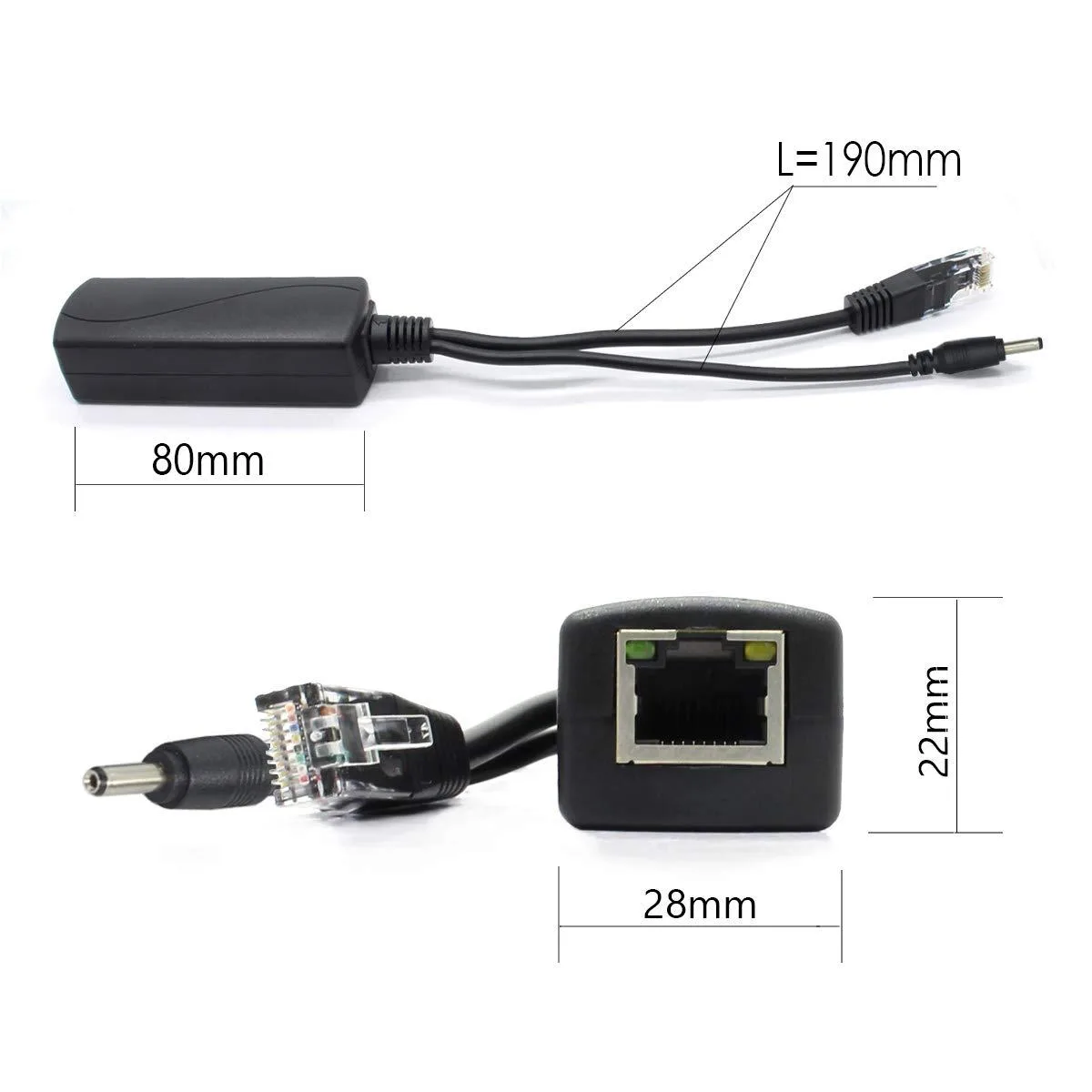

No configuration is required; connect the shielded RJ-45 input and attach the included 3.5mm x 1.35mm or 5.5mm x 2.1mm DC plug to the device. The 19.0cm output cable allows flexible placement. The only common issue is attempting to use the splitter with gigabit non-PoE equipment, which is not supported.

12W Output at 100Mbps Data Rate

Each splitter provides 5V at 2.4A, comfortably powering typical IP cameras and similar 5V gear. The 10/100Mbps ethernet path handles standard-definition and many HD video streams. Headroom ends when a device demands more than 12 watts or requires gigabit ethernet throughput.

Highlights

  • Converts 48 V PoE into 5 V 2.4 A power plus 100 Mbps data for non-PoE cameras
  • Plug-and-play setup needs no configuration to extend networks where outlets are absent
  • Two DC plug sizes — 3.5 × 1.35 mm and 5.5 × 2.1 mm — fit common IP-camera power inputs
  • Four splitters in one pack power multiple devices from a single PoE switch or injector
  • IEEE 802.3af compliant input accepts 44–56 VDC and operates from –10 °C to 45 °C

Specifications

BrandANVISION
ModelAV-PS05
Interfaceethernet
Powerline Speeds100 megabits_per_second
Connection Speeds100 megabits_per_second
Weight0.16 kilograms

Questions about this item

How can I verify the splitter is delivering 5V 2.4A and a 100Mbps link after I connect it?

Check that the attached IP camera or device powers on and shows a stable 10/100Mbps Ethernet connection; the splitter passes data and power without configuration.

What comes in the package and which cables or adapters must I supply myself?

The box contains four 5V PoE splitters each with a 19.0cm output cable ending in 3.5mm x 1.35mm and 5.5mm x 2.1mm DC plugs; you provide the PoE switch or injector and Ethernet cables.

My cameras need 5V DC and 10/100Mbps Ethernet — is the AV-PS05 the correct version for that?

Yes, the AV-PS05 converts IEEE 802.3af 44-56V PoE input to 5V 2.4A 12W DC output and 100Mbps Ethernet, matching non-PoE 5V devices; it does not support gigabit ports.
