Two small white PoE splitters with Ethernet ports and DC cables

ANVISION AV-PS05-1 5V 2.4A PoE Splitter 2-Pack

SKU CH-1PPE-S9KF9

A two-pack of IEEE 802.3af compliant splitters that separate PoE input into 5 V 2.4 A power and 10/100 Mbps ethernet for non-PoE IP cameras

  • Interfaceethernet
  • Powerline Speeds100 megabits_per_second
  • Connection TypeIEEE 802.3
  • Connection Speeds100 megabits_per_second
  • Weight0.16 kilograms
  • Powers 5V devices from PoE without a nearby outlet
  • Delivers up to 2.4A at 5V for cameras and sensors
  • Keeps data at 10/100Mbps over standard Ethernet cabling
  • Works with 44-56VDC PoE sources, IEEE 802.3af compliant
  • Includes two splitters with 3.5mm and 5.5mm DC plugs

ANVISION AV-PS05-1 5V 2.4A PoE Splitter 2-Pack

This two-pack supplies 5V DC power and 10/100Mbps ethernet data from a single PoE cable. It is built for installers who need to run IP cameras or other 5V network devices where no mains outlet exists. Each splitter draws 44-56V DC from a PoE switch or injector and separates it into regulated power and data.

Dual DC plugs and plug-and-play operation

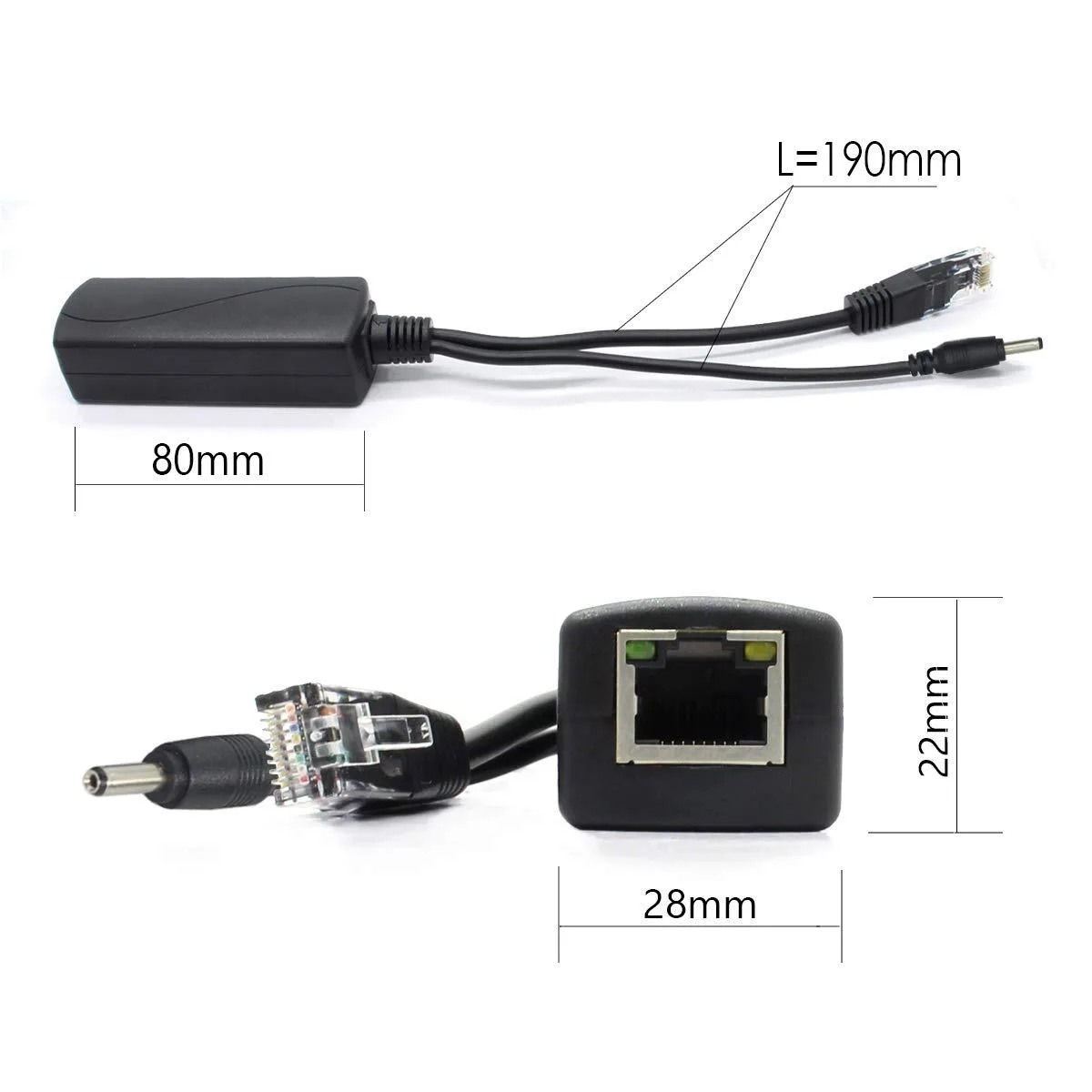

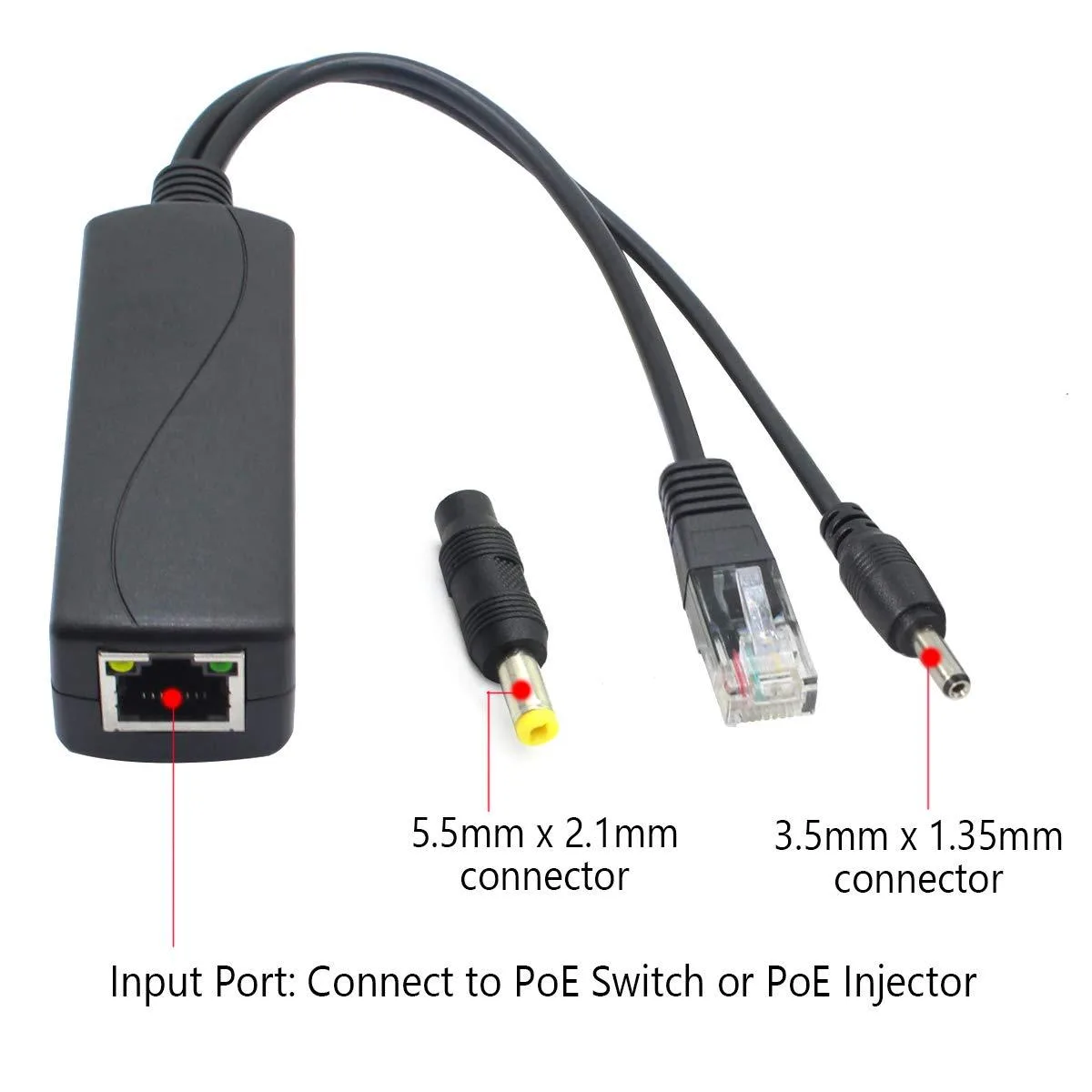

Every unit includes both a 3.5mm x 1.35mm and a 5.5mm x 2.1mm barrel connector on a 19.0cm lead, so you can match common camera power inputs without adapters. No configuration is required; the splitters are IEEE 802.3af compliant and begin passing power and data as soon as they are connected.

12W maximum output and 100Mbps data ceiling

The 2.4A output delivers up to 12 watts, enough for typical 5V IP cameras and similar loads, but cannot support devices that draw more current. The ethernet path is limited to 10/100Mbps, so gigabit non-PoE equipment will not operate at full speed through these splitters.

Highlights

  • Powers 5V devices from PoE without a nearby outlet
  • Delivers up to 2.4A at 5V for cameras and sensors
  • Keeps data at 10/100Mbps over standard Ethernet cabling
  • Works with 44-56VDC PoE sources, IEEE 802.3af compliant
  • Includes two splitters with 3.5mm and 5.5mm DC plugs

Specifications

BrandANVISION
ModelAV-PS05-1
Interfaceethernet
Powerline Speeds100 megabits_per_second
Connection TypeIEEE 802.3
Connection Speeds100 megabits_per_second
Weight0.16 kilograms

Questions about this item

Will the 3.5 mm × 1.35 mm or 5.5 mm × 2.1 mm DC plug wear out and need replacing?

The two included DC plugs are passive connectors with no moving parts; they only need replacement if the cable is physically damaged.

What limits sustained throughput on the Ethernet link?

The splitter passes data at 100 megabits per second, so the 10/100 Mbps Ethernet port is the bottleneck under continuous load.

How much heat does the unit produce when powered all day?

It delivers up to 12 watts at 5 V and operates from −10 °C to 45 °C ambient, so heat output stays within that thermal envelope.
