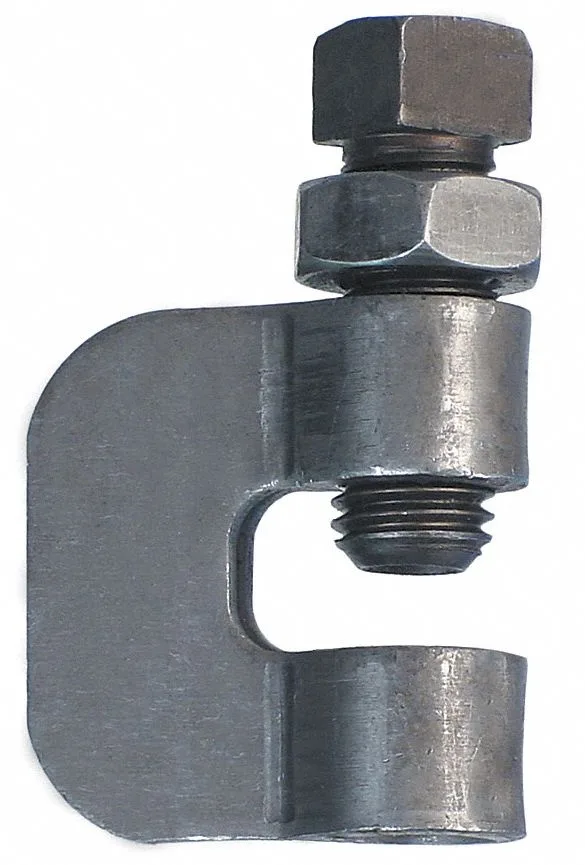

Steel C-clamp beam hanger, zinc-plated finish, with locknut

Anvil

Anvil 500009345 C-Clamp Beam Hanger 1/2 in 380 lb

SKU CH-2J12-EN5MM

Zinc-plated steel C-clamp beam hanger holds 1/2-inch threaded rod with 380 lb capacity

  • ColorTransparent
  • Supports 380 lb load capacity for secure pipe hanging
  • Zinc-plated steel resists corrosion in damp environments
  • Fits 1/2 in threaded rod for standard installations
  • FM Approved and UL Listed meeting safety standards
  • Includes locknut for vibration-resistant beam attachment

C-Clamp Beam Hanger for H-Beam

The Anvil 500009345 is a zinc-plated steel C-clamp designed to hang 1/2 in threaded rod from the bottom flange of an H-beam. It carries a 380 lb load capacity and meets ANSI/MSS SP-69, MSS SP-58, UL and FM standards for pipe-support applications.

Installation with locknut and torque spec

The clamp includes a locknut and mounts directly to the beam bottom. Tighten to the specified 125 in-lb installation torque to secure the rod; under-torquing risks slip while over-torquing can damage threads or the beam flange.

Suited for light-duty rod hangs on H-beams

This hanger fits contractors running 1/2 in rod on H-beams within the 380 lb limit. It is not for larger rod diameters, heavier loads, or beam profiles other than H-beam.

Highlights

  • Supports 380 lb load capacity for secure pipe hanging
  • Zinc-plated steel resists corrosion in damp environments
  • Fits 1/2 in threaded rod for standard installations
  • FM Approved and UL Listed meeting safety standards
  • Includes locknut for vibration-resistant beam attachment

Specifications

ColorTransparent
BrandANVIL

Questions about this item

How do I verify the clamp is torqued correctly after installation?

Torque the clamp to 125 in-lb using a calibrated wrench; the locknut should be fully engaged and the clamp seated flat against the H-beam flange.

What comes with the beam hanger and what must I supply?

The C-clamp includes a locknut; you must provide the 1/2 in threaded rod and any additional hardware required for your piping layout.

Which standard should I reference when selecting this hanger for a fire-protection system?

This model meets FM Approved, UL Listed, ANSI/MSS SP-69 Type 23, MSS SP-58 Type 23, A-A-1192A Type 23 and WW-H-171-E Type 23 for fire-protection applications.
