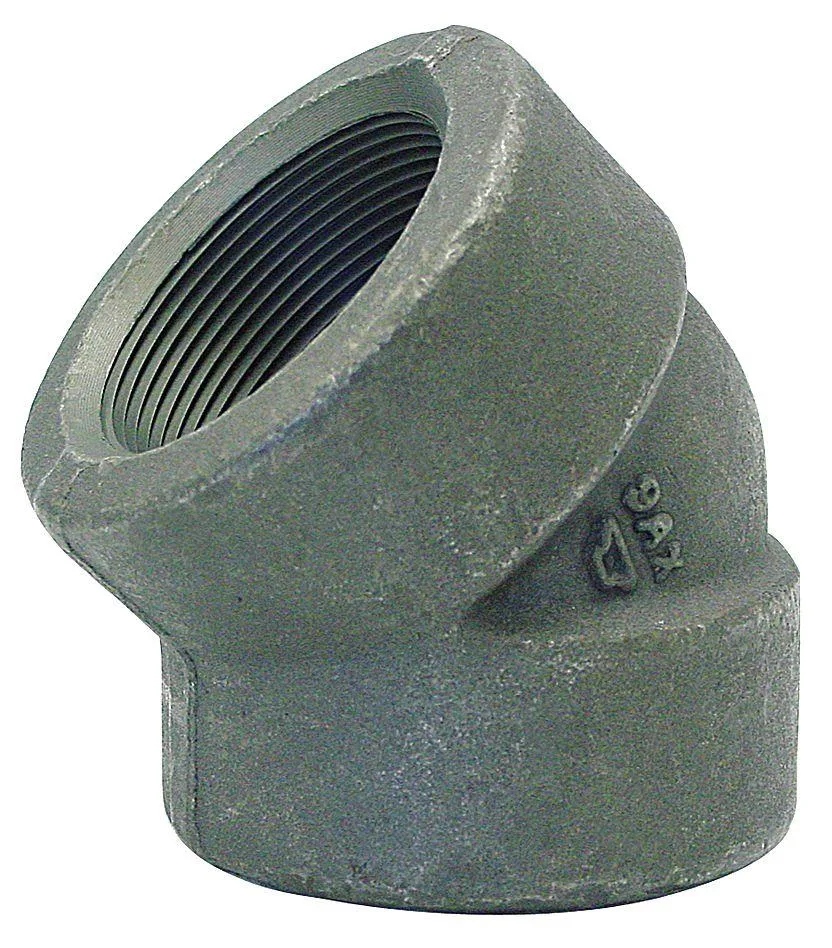

Black forged steel 45 degree elbow coupling with FNPT threads

Anvil

Anvil 361110406 Black Forged Steel 45 Degree Elbow coupling

SKU CH-TTXW-JBSBS

Black forged steel 45-degree elbow with FNPT connections rated for 2000 psi at 150 °F and 300 psi saturated steam at 550 °F

  • Forged steel construction withstands 2000 psi at 150 °F
  • 45-degree angle redirects flow in tight plumbing layouts
  • Class 3000 rating meets ASME B16.11 and ASTM A106 standards
  • FNPT threads seal to B1.20.1 without welding
  • Operates from –20 °F to 550 °F saturated steam 300 psi

3/8-inch 45-degree forged-steel elbow

This Anvil elbow redirects pipe runs by 45 degrees using a 3/8-inch female NPT connection. It is built from black forged steel rated to Class 3000 for high-pressure plumbing and industrial piping systems.

Threaded installation with sealant required

The fitting uses FNPT threads that seal with pipe tape or compound applied to the male threads. Over-tightening can crack the forged body or strip the threads, so hand-tight plus one to two turns with a wrench is standard practice.

Handles 2000 psi at 150 °F

The Class 3000 rating provides ample headroom for hydraulic lines, compressed air and steam services up to 550 °F. It is not suited for pressures above 2000 psi at the lower temperature or for cryogenic service below -20 °F.

Highlights

  • Forged steel construction withstands 2000 psi at 150 °F
  • 45-degree angle redirects flow in tight plumbing layouts
  • Class 3000 rating meets ASME B16.11 and ASTM A106 standards
  • FNPT threads seal to B1.20.1 without welding
  • Operates from –20 °F to 550 °F saturated steam 300 psi

Specifications

BrandAnvil

Questions about this item

How do I confirm the 45 degree elbow is holding pressure after installation?

Pressurise the system up to 2000 psi at 150 degrees F and check for leaks at both FNPT threads; the forged steel body is rated to 300 psi saturated steam at 550 degrees F.

What comes with the 361110406 elbow and what must I supply?

The box contains only the black forged steel 45 degree elbow with two FNPT ports; you must provide 3/8 inch pipe, thread sealant and wrenches.

Which class rating should I select for a 3/8 inch line rated to 2000 psi?

Choose the Class 3000 version shown here; it matches the 2000 psi at 150 degrees F requirement and meets ASME B16.11 and ASTM A106 standards.
