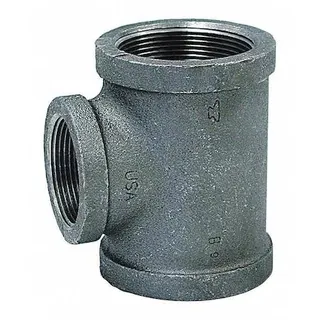

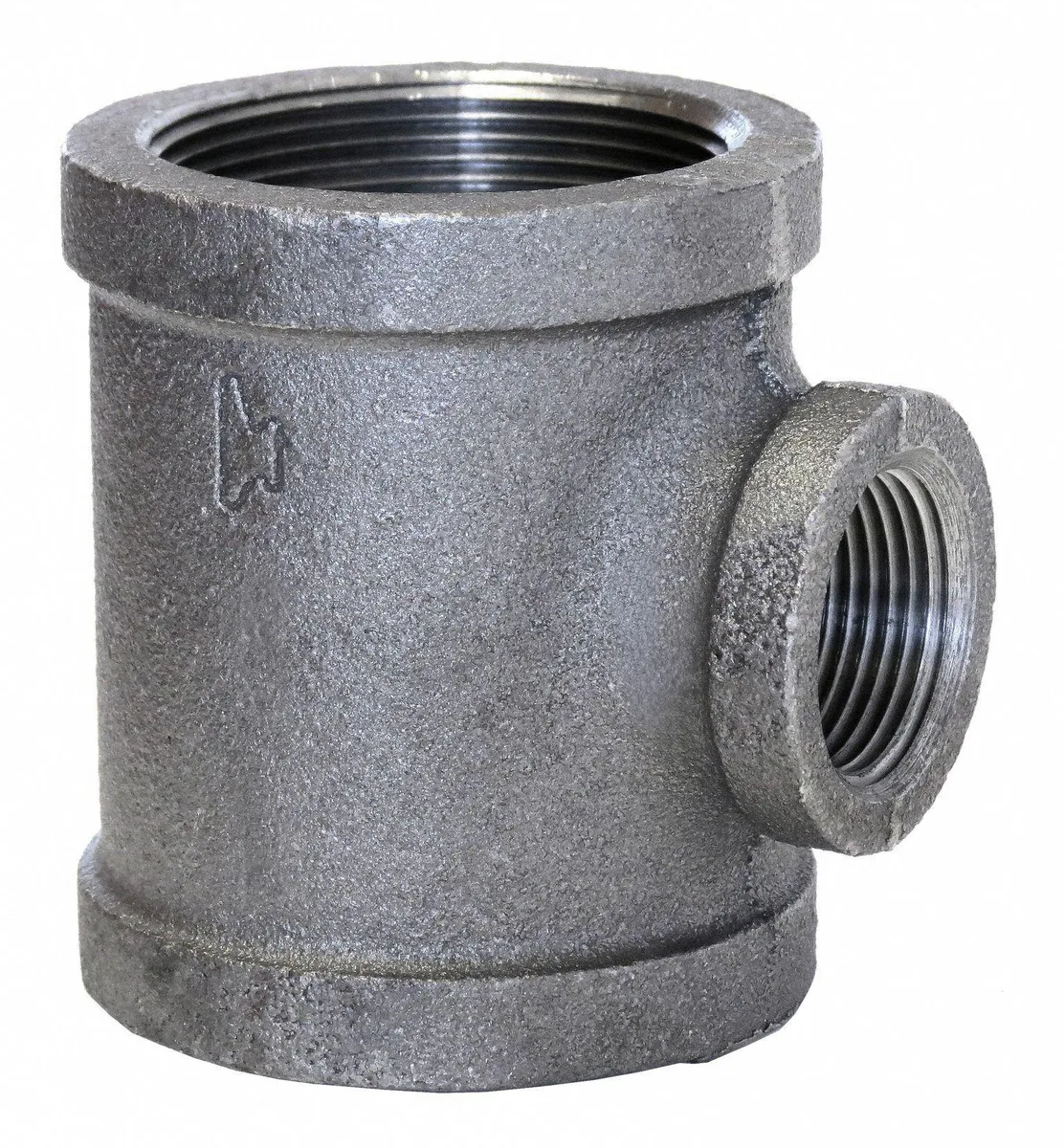

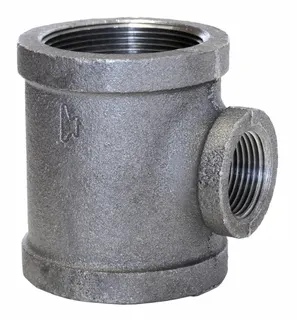

Galvanized malleable iron reducing tee with three FNPT ports

Anvil

Anvil 311050009 2" x 1-1/2" x 1-1/2" FNPT Galvanized Reducing Tee coupling

SKU CH-Y4RD-FDJHK

Galvanized malleable iron reducing tee connects 2 in, 1-1/2 in and 1-1/2 in FNPT branches for Class 150 service up to 300 psi at 150 °F

  • Reducing tee joins three pipe sizes
  • Galvanized malleable iron resists corrosion
  • Class 150 rated for 300 psi water pressure
  • FM approved and UL listed for safety
  • Service range -20 °F to 350 °F

Anvil galvanized reducing tee

The Anvil 311050009 is a Class 150 galvanized malleable iron reducing tee designed for pipe systems requiring a 2 inch run with two 1-1/2 inch branches. It carries FM approval and UL listing while meeting ASME B 16.3 and ASTM A-197 standards for reliable service in water, oil and gas lines.

Verify thread type and pressure rating

Confirm that the existing piping uses FNPT threads so the three female ports seal correctly without adapters. Check that the system operating pressure stays within 300 psi at 150 degrees F for water, oil or gas, and within 150 psi at 350 degrees F for saturated steam, matching the fitting’s rated limits.

Connects three pipes in a T layout

The tee joins a 2 inch main line to two 1-1/2 inch branches using standard FNPT connections, allowing direct assembly with compatible nipples or valves. Its galvanized malleable iron body handles temperatures from -20 to 350 degrees F, freeing the installer from sourcing separate bushings or reducers for this transition.

Highlights

  • Reducing tee joins three pipe sizes
  • Galvanized malleable iron resists corrosion
  • Class 150 rated for 300 psi water pressure
  • FM approved and UL listed for safety
  • Service range -20 °F to 350 °F

Specifications

BrandANVIL

Questions about this item

What comes in the box and what else do I need to install this reducing tee?

The box contains the galvanized malleable iron reducing tee with FNPT threads on all three outlets. You will need to supply pipe thread sealant or tape and the matching pipes or nipples for the 2 inch and 1-1/2 inch connections.

How do I decide between the available versions of this Anvil 311050009 fitting?

This model is offered in a single configuration: a 2 inch by 1-1/2 inch by 1-1/2 inch FNPT reducing tee rated Class 150. There are no alternative capacities or schedules for this part number.

What does the 300 psi pressure rating mean when the tee is in service?

The 300 psi @ 150 Degrees F WOG rating is the maximum non-shock cold working pressure for water, oil or gas at that temperature. For saturated steam service the limit is 150 psi @ 350 Degrees F, and the overall temperature range is -20 Degrees to 350 Degrees F.
