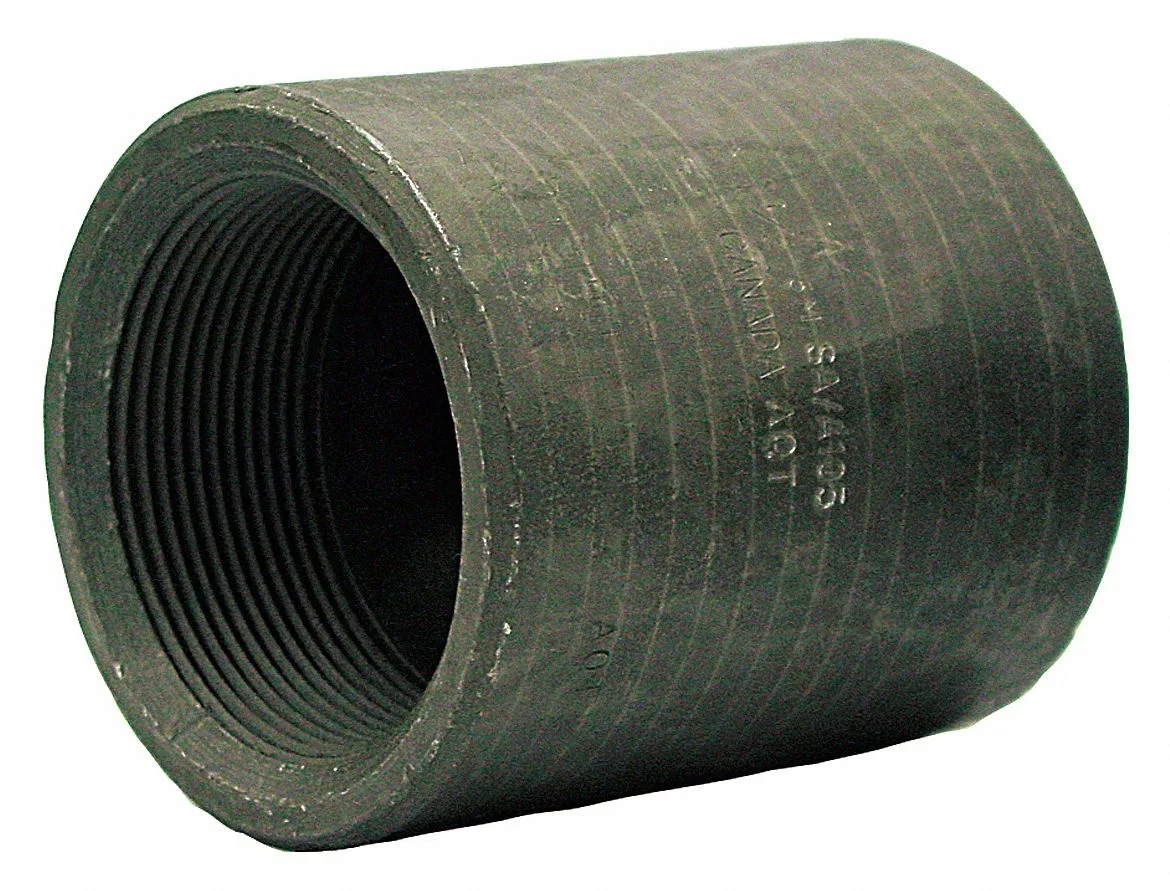

Black forged steel pipe coupling with two threaded openings

Anvil

Anvil 1-1/4" Black Forged Steel Coupling

SKU CH-F7VE-7K8XX

Connects two 1-1/4 in FNPT pipes with Class 3000 forged steel rated to 1500 psi at 150 °F

  • Rated for 1500 psi at 150 °F service pressure
  • Withstands 300 psi saturated steam at 550 °F
  • Operates from -20 °F to 550 °F temperature range
  • Built to ASME B16.11 and ASTM A106 standards
  • Female NPT threads per ASME B1.20.1 for secure seal

Black Forged Steel Coupling 1-1/4

The Anvil coupling joins two sections of pipe with female NPT threads. It is built for plumbing and industrial piping systems that require a strong, leak-resistant joint. The forged steel body meets ASME B16.11 and ASTM A106 standards for pressure service.

Class 3000 Pressure Rating

This fitting carries a Class 3000 designation with a maximum pressure of 1500 psi at 150 degrees F. That rating is the primary check for engineers specifying the joint. If the design pressure exceeds this value, a heavier class fitting must be selected.

Temperature Range -20 to 550 Degrees F

The coupling handles saturated steam up to 300 psi at 550 degrees F and operates continuously down to -20 degrees F. It covers most process steam, hot water and chilled water lines. It is not suited for cryogenic service or superheated steam beyond the listed limit.

Highlights

  • Rated for 1500 psi at 150 °F service pressure
  • Withstands 300 psi saturated steam at 550 °F
  • Operates from -20 °F to 550 °F temperature range
  • Built to ASME B16.11 and ASTM A106 standards
  • Female NPT threads per ASME B1.20.1 for secure seal

Specifications

BrandAnvil

Questions about this item

What does the 1500 psi rating mean once the coupling is installed in a steam line?

The coupling handles 1500 psi at 150 °F water and 300 psi at 550 °F saturated steam, per ASME B 16.11 and ASTM A106 limits.

How does the FNPT thread standard limit the connection in practice?

FNPT threads follow B 1.20.1 taper specs, so they seal with thread sealant and mate only with matching male NPT fittings.

What clearance does the 2 1/4 in outside diameter need to fit or mount?

The 2 1/4 in OD requires at least that much clear space around the pipe centreline for wrench access and insulation clearance.
