Anvil 0500340120 insulation protection shield for 5 to 6 in pipe

Anvil 0500340120 insulation shield

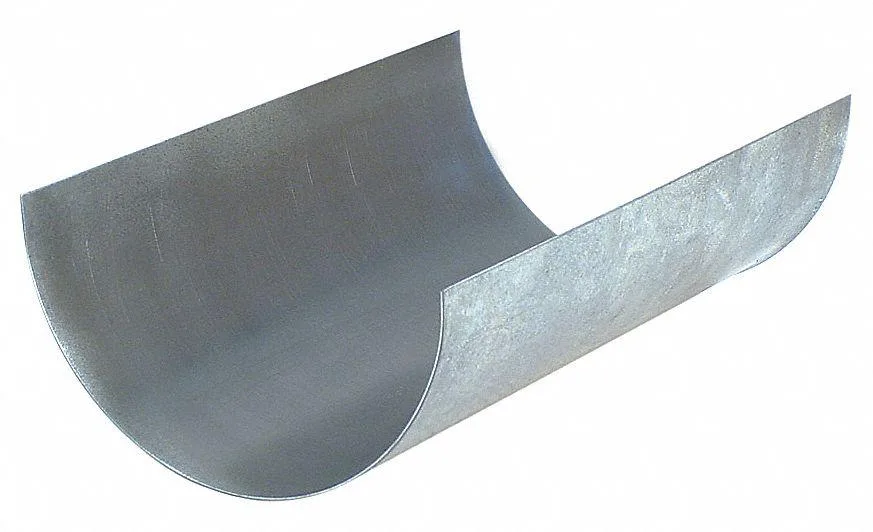

This Anvil 0500340120 insulation protection shield is designed for 5 to 6 inch pipes carrying foam or fiber glass insulation. The pre-galvanized steel shield mounts on a clevis hanger and spans an 18 inch overall length. It accommodates insulation outside diameters of 8.6 inches with a thickness range of 1 to 1 1/2 inches. The assembly operates between -32 and 150 degrees Fahrenheit.

Suits insulated pipe runs on clevis hangers

This shield suits installers protecting foam or fiber glass insulation on 5 to 6 inch piping secured by clevis hangers. It meets ANSI/MSS SP-69 and federal specifications for Type 40 and Type 41 applications. Projects needing shield sizes outside the 5 to 6 inch range or different hanger mounting styles should look at other options. The fixed 18 inch length may not fit all support spacing requirements.

Fits 5 to 6 inch pipe with 8.6 inch insulation OD

The single specification that decides fit is the pipe size range of 5 to 6 inches combined with an insulation outside diameter of 8.6 inches. The shield thickness range of 1 to 1 1/2 inches must match the installed insulation. Verify the clevis hanger mount type and the 18 inch overall length against the support layout before selecting this part.
