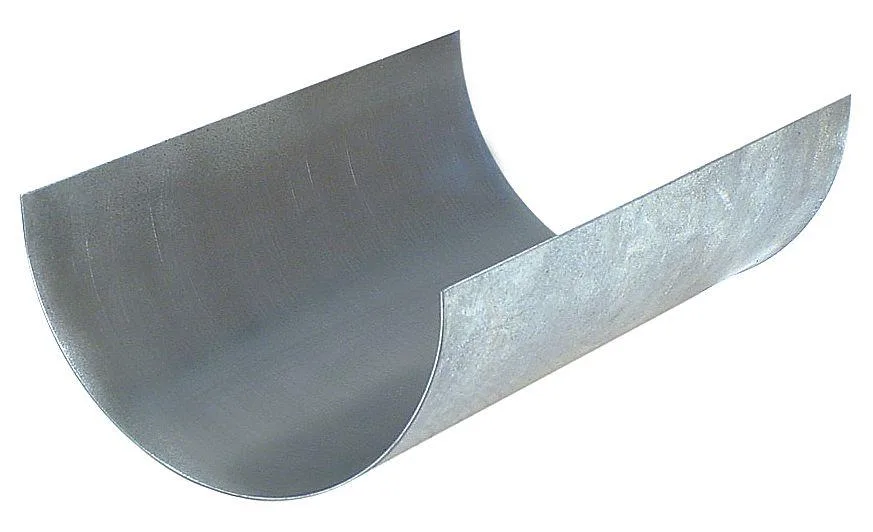

Galvanised carbon-steel insulation shield 18 in long for 5 in pipe

Anvil

Anvil 0500340104 Insulation Protection Shield trap

SKU CH-F12M-DVT0A MPN 0500340104

Insulation protection shield made of 16-gauge galvanised carbon steel, 18 inches long for 5-inch pipe with 1-inch insulation

  • TypeDrain Components
  • Galvanised carbon steel resists corrosion
  • 16-gauge thickness provides structural rigidity
  • 18-inch length covers extended pipe runs
  • Meets A-A-1192A Type 40 and MSS SP-69 standards
  • Fits 5-inch pipe with 1-inch insulation thickness

Insulation Protection Shield for 5-Inch Pipe

The Anvil 0500340104 is a galvanised carbon-steel shield designed to protect pipe insulation at support points. It fits a 5-inch pipe with 1-inch thick insulation and an outside diameter of 7 41/64 inches. The shield is 18 inches long and manufactured from 16-gauge material.

Suitable for Standard Hanger Installations

This shield suits installers who need a Type 40 protection saddle that meets A-A-1192A, WW-H-171-E Type 41, ANSI/MSS SP-69 and MSS SP-5 standards. It is not intended for systems where the insulation thickness, pipe size or outside diameter differ from the stated dimensions.

5-Inch Pipe Size with 1-Inch Insulation

The decisive specification is the combination of a 5-inch pipe size and 1-inch insulation thickness, which fixes the shield's 7 41/64-inch inside diameter. Verify these two measurements against your pipe and insulation before ordering.

Highlights

  • Galvanised carbon steel resists corrosion
  • 16-gauge thickness provides structural rigidity
  • 18-inch length covers extended pipe runs
  • Meets A-A-1192A Type 40 and MSS SP-69 standards
  • Fits 5-inch pipe with 1-inch insulation thickness

Specifications

TypeDrain Components
BrandAnvil
Model0500340104

Questions about this item

How is the 16-gauge galvanized shield secured to a 5-inch pipe with 1-inch insulation, and what step is often missed?

Wrap the 18-inch shield around the 7 41/64-inch insulation OD and fasten the overlapping tabs; the missed step is tightening the bands evenly so the shield stays centred.

What maintenance will the carbon-steel shield need after installation?

Inspect the galvanized coating annually for white rust or mechanical damage; touch up any bare spots with zinc-rich paint to maintain corrosion resistance.

What limit appears first when the shield sees continuous thermal cycling on a hot-water line?

Repeated expansion and contraction can fatigue the 16-gauge steel at the tab bends, leading to cracks before the galvanized layer itself fails.
