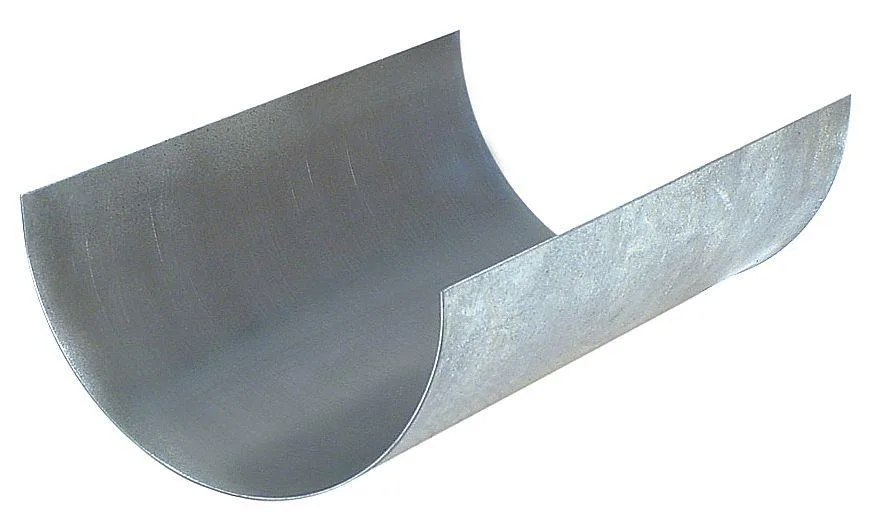

Galvanized steel insulation shield, cylindrical, 12 inches long

Anvil

Anvil 0500340096 Insulation Protection Shield trap

SKU CH-JNGJ-5E5Z8 MPN 0500340096

Galvanised carbon-steel insulation shield fits 2½ to 4 inch pipe with 12 inch length and 16 gauge thickness

  • TypeDrain Components
  • Galvanised carbon steel resists corrosion in pipe installations
  • 16-gauge thickness provides structural strength for 12-inch shield length
  • Fits 2½ to 4-inch pipes with 1½ to 2-inch insulation
  • Meets A-A-1192A, WW-H-171-E, ANSI/MSS SP-69 and MSS SP-5 standards
  • Type 40/41 design ensures reliable insulation protection for drainage systems

Anvil Insulation Protection Shield

The Anvil 0500340096 is a galvanized carbon steel insulation protection shield designed for pipe sizes ranging from 2 1/2 to 4 inches. It accommodates insulation thicknesses of 1 1/2 to 2 inches with an insulation outer diameter of 7 41/64 inches. The component measures 12 inches in length and is constructed from 16 gauge material.

Capacity and headroom for pipe support

This shield supports pipes within the 2 1/2 to 4 inch diameter range while protecting insulation layers up to 2 inches thick. The 16 gauge galvanized steel construction provides structural rigidity for standard load requirements. It runs out when pipe diameters exceed 4 inches or when insulation thickness surpasses the 2 inch maximum.

Standards compliance and interface limits

The shield conforms to A-A-1192A Type 40, WW-H-171-E Type 41, ANSI/MSS SP-69 and MSS SP-5 Type 40 standards. These approvals define the dimensional and material interface for hanger and support systems. The product is restricted from sale in certain states, limiting its regulatory availability.

Highlights

  • Galvanised carbon steel resists corrosion in pipe installations
  • 16-gauge thickness provides structural strength for 12-inch shield length
  • Fits 2½ to 4-inch pipes with 1½ to 2-inch insulation
  • Meets A-A-1192A, WW-H-171-E, ANSI/MSS SP-69 and MSS SP-5 standards
  • Type 40/41 design ensures reliable insulation protection for drainage systems

Specifications

TypeDrain Components
BrandAnvil
Model0500340096

Questions about this item

Will the 12 In length and 7 41/64 In insulation OD fit alongside my existing 2 1/2 to 4 In pipe hangers?

The shield spans 12 In and covers an insulation OD of 7 41/64 In, matching pipe sizes 2 1/2 to 4 In so it aligns with standard hanger spacing for those diameters.

How can I confirm the 16 Gauge galvanized shield is seated correctly after installation?

Verify the shield sits flat on the insulation over the 2 1/2 to 4 In pipe, with the 12 In length centred on the hanger and no gaps at the 1 1/2 to 2 In insulation thickness.

Does the box include mounting hardware or just the 16 Gauge carbon steel shield?

Only the insulation protection shield is supplied; fasteners, hangers and any pipe clamps must be sourced separately.
