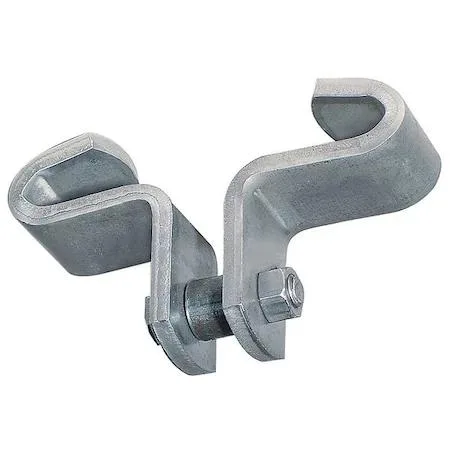

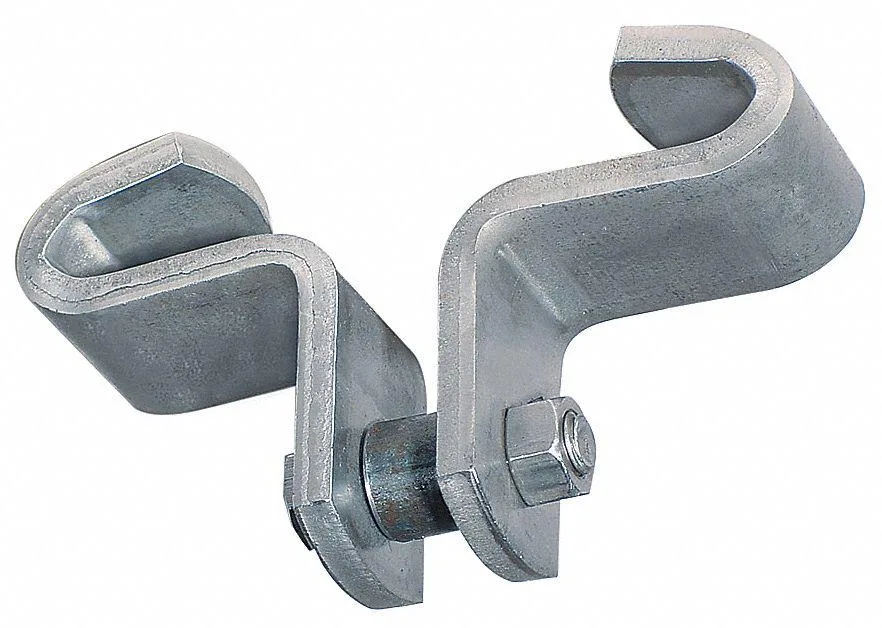

Galvanized steel split-style beam clamp with locknut

Anvil

Anvil 0500315023 Threaded Rod Hanger

SKU CH-P8AV-FTNFV

Split-style beam clamp for 3/8-inch threaded rod, galvanised steel, 1,000 lb capacity, UL listed

  • ColorTransparent
  • Supports 1,000 lb loads for secure overhead installations
  • Galvanized steel resists corrosion in damp environments
  • Split-style clamp fits I-beams up to 6 in wide
  • UL Listed to ANSI/MSS SP-69 and MSS SP-58 standards
  • Includes locknut for vibration-resistant threaded rod attachment

Beam Clamp for I-Beams

The Anvil 0500315023 is a split-style beam clamp designed to hang threaded rod from the bottom centre of an I-beam. It accepts a maximum beam width of 6 in and a throat depth of 11/16 in. The clamp is made from galvanized steel and carries a load capacity of 1,000 lb. It meets ANSI/MSS SP-69, MSS SP-58, A-A-1192A, WW-H-171-E and UL Listed standards.

Build Integration and Clearance

This clamp mounts directly to the beam flange without welding or drilling, freeing the beam surface for other attachments. A locknut is included to secure the 3/8 in threaded rod once the clamp is tightened in place. The clamp length is 6 in and the width is .56 in, so verify the flange thickness and available space before installation. The galvanized finish protects the steel in damp or exposed environments.

Upgrade Path and Limitations

The clamp replaces welded lugs or drilled brackets when a non-permanent, adjustable hanger is required. It is not suited for beams wider than 6 in or for rod sizes other than 3/8 in. Builders needing higher load ratings or different rod diameters must select a different clamp type.

Highlights

  • Supports 1,000 lb loads for secure overhead installations
  • Galvanized steel resists corrosion in damp environments
  • Split-style clamp fits I-beams up to 6 in wide
  • UL Listed to ANSI/MSS SP-69 and MSS SP-58 standards
  • Includes locknut for vibration-resistant threaded rod attachment

Specifications

ColorTransparent
BrandANVIL

Questions about this item

How much weight does the 3/8 in threaded rod hanger hold before the 1,000 lb limit is reached?

The split-style clamp is rated for a 1,000 lb load capacity when installed on an I-beam up to 6 in wide with the included locknut secured.

Does the galvanized steel clamp generate noticeable heat or noise during continuous overhead suspension?

The steel beam clamp has no moving parts and produces no operational noise or heat while supporting threaded rod in plumbing installations.

What beam profile must the structure already have for this Type 21 hanger to mount correctly?

The bottom-center mount requires an I-beam with a maximum width of 6 in and a throat depth of 11/16 in for proper fit.
