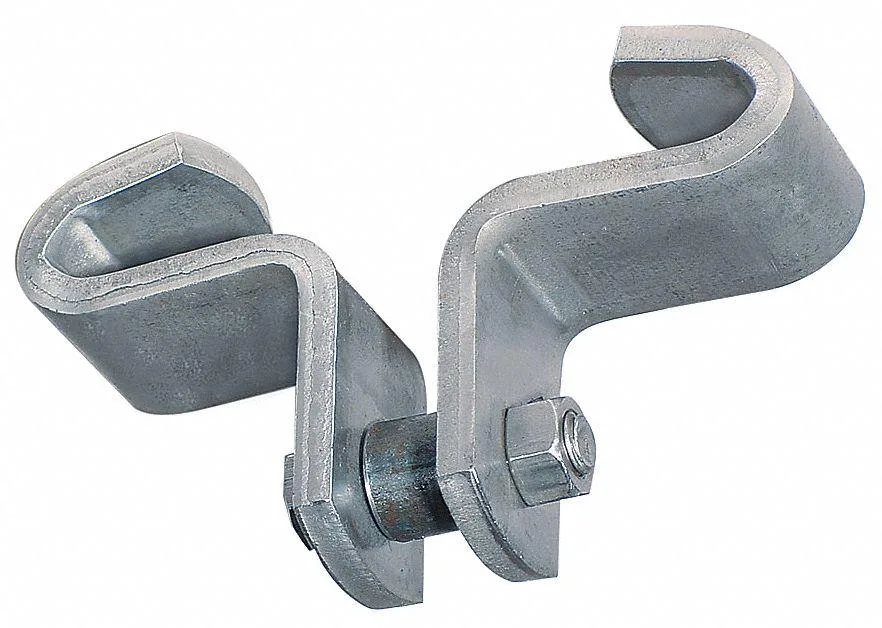

Steel galvanised split-style beam clamp, 5 in long, 0.56 in wide

Anvil

Anvil 0500315015 Threaded Rod Hanger

SKU CH-Y9TG-PB06S

Split-style beam clamp for 3/8 in threaded rod, 1,000 lb capacity, galvanized steel, UL listed

  • ColorTransparent
  • Galvanised steel resists corrosion for long service life
  • Split-style clamp fits I-beams up to 5 in wide
  • Locknut included secures 3/8 in threaded rod without extra parts
  • 1,000 lb load rating meets ANSI/MSS SP-69 Type 21 standard
  • UL listed and complies with A-A-1192A and MSS SP-58

Anvil Threaded Rod Hanger

The Anvil 0500315015 is a steel galvanised beam clamp designed to suspend 3/8 in threaded rod from I-beams. It mounts at the bottom centre of the beam and includes a locknut for secure fastening. The split-style clamp fits beams up to 5 in wide with a throat depth of 11/16 in.

Installers needing UL-listed hardware for 1,000 lb

This clamp suits contractors who require a Type 21 hanger meeting ANSI/MSS SP-69 and MSS SP-58 standards for bottom-centre mounting. It is not for teams needing top-mount or side-mount beam attachments, nor for applications requiring a different rod diameter or a higher load rating than the listed capacity.

3/8 in threaded rod compatibility

The single specification that decides fit is the 3/8 in rod size this clamp accepts. Verify your rod diameter matches this figure before ordering, as the clamp will not secure larger or smaller threaded rod.

Highlights

  • Galvanised steel resists corrosion for long service life
  • Split-style clamp fits I-beams up to 5 in wide
  • Locknut included secures 3/8 in threaded rod without extra parts
  • 1,000 lb load rating meets ANSI/MSS SP-69 Type 21 standard
  • UL listed and complies with A-A-1192A and MSS SP-58

Specifications

ColorTransparent
BrandANVIL

Questions about this item

What threaded rod diameter does this Anvil hanger accept?

It accepts a 3/8 in threaded rod and includes a locknut for secure attachment.

Will this clamp fit an I-beam up to 5 in wide?

Yes, it mounts on the bottom centre of I-beams with a maximum width of 5 in and a throat depth of 11/16 in.

How can I confirm the hanger meets the listed load capacity after installation?

Verify the UL listing and compliance with ANSI/MSS SP-69 Type 21 to confirm the 1,000 lb rating.
