Carbon steel riser clamp for 8 inch pipe, 18 1/2 inch length, 5/8 inch bolts

Anvil

Anvil 0500173638 riser clamp trap 8 in 18 1/2 in L

SKU CH-3CM7-EH22V MPN 0500173638

Carbon-steel riser clamp supports stationary 8-inch steel or cast-iron pipe risers up to 2,500 lb, meeting UL-listed standards

  • TypeDrain Components
  • MaterialHAWA
  • Carbon steel construction resists corrosion and handles heavy loads
  • Supports stationary steel pipe risers, cast iron pipe or conduit up to 8 in
  • 18 1/2 in length with 5/8 in bolt size fits standard installations
  • Meets A-A-1192A, WW-H-171-E, ANSI/MSS SP-69 and MSS SP-58 standards
  • UL and ULC listed for verified safety compliance

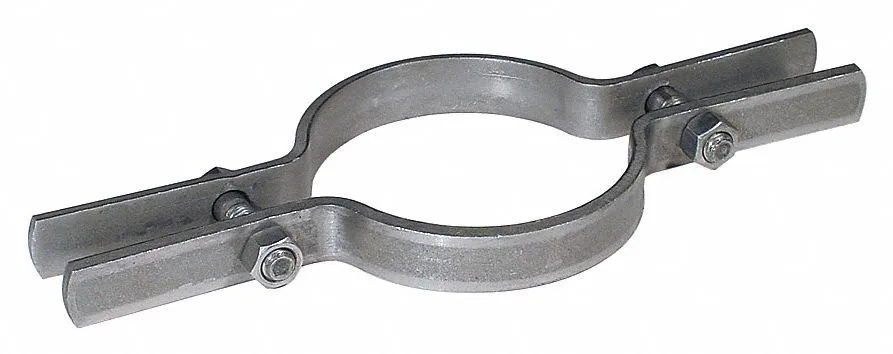

Anvil 8 in riser clamp

The Anvil 0500173638 is a carbon steel riser clamp sized for 8 in pipe and 18 1/2 in overall length. It supports stationary steel pipe risers, cast iron pipe or conduit with a maximum load of 2,500 Lb. The clamp uses 5/8 in bolts and is not intended for use with hanger rods.

Sustained load performance

Built to A-A-1192A Type 8, WW-H-171-E Type 8, ANSI/MSS SP-69 and MSS SP-58 Type 8 standards, the clamp maintains its rated capacity under continuous stationary loading. Carbon steel construction resists deformation over time, and the UL and ULC listings confirm compliance for long-term support applications.

Build quality and mounting

Carbon steel material provides structural rigidity for daily service in plumbing and conduit installations. The 5/8 in bolt size allows secure fastening to the pipe surface, while the 18 1/2 in length accommodates the required pipe diameter. The design excludes hanger rod compatibility, so installers must plan direct mounting.

Highlights

  • Carbon steel construction resists corrosion and handles heavy loads
  • Supports stationary steel pipe risers, cast iron pipe or conduit up to 8 in
  • 18 1/2 in length with 5/8 in bolt size fits standard installations
  • Meets A-A-1192A, WW-H-171-E, ANSI/MSS SP-69 and MSS SP-58 standards
  • UL and ULC listed for verified safety compliance

Specifications

TypeDrain Components
MaterialHAWA
BrandAnvil
Model0500173638

Questions about this item

How much heat or noise does the 8-inch riser clamp generate during continuous operation?

The carbon-steel clamp is a passive support component with no moving parts, so it produces no heat and no noise regardless of how long it remains installed.

What additional hardware must I already have to install this 5/8-inch bolt clamp?

You will need compatible 5/8-inch bolts and nuts, plus the stationary steel pipe, cast-iron pipe or conduit the clamp is designed to support.

Will this Type 8 clamp work with older piping that follows the same MSS SP-58 standard?

Yes, the clamp meets ANSI/MSS SP-69 and MSS SP-58 Type 8 requirements, so it is compatible with existing piping systems built to those standards.
