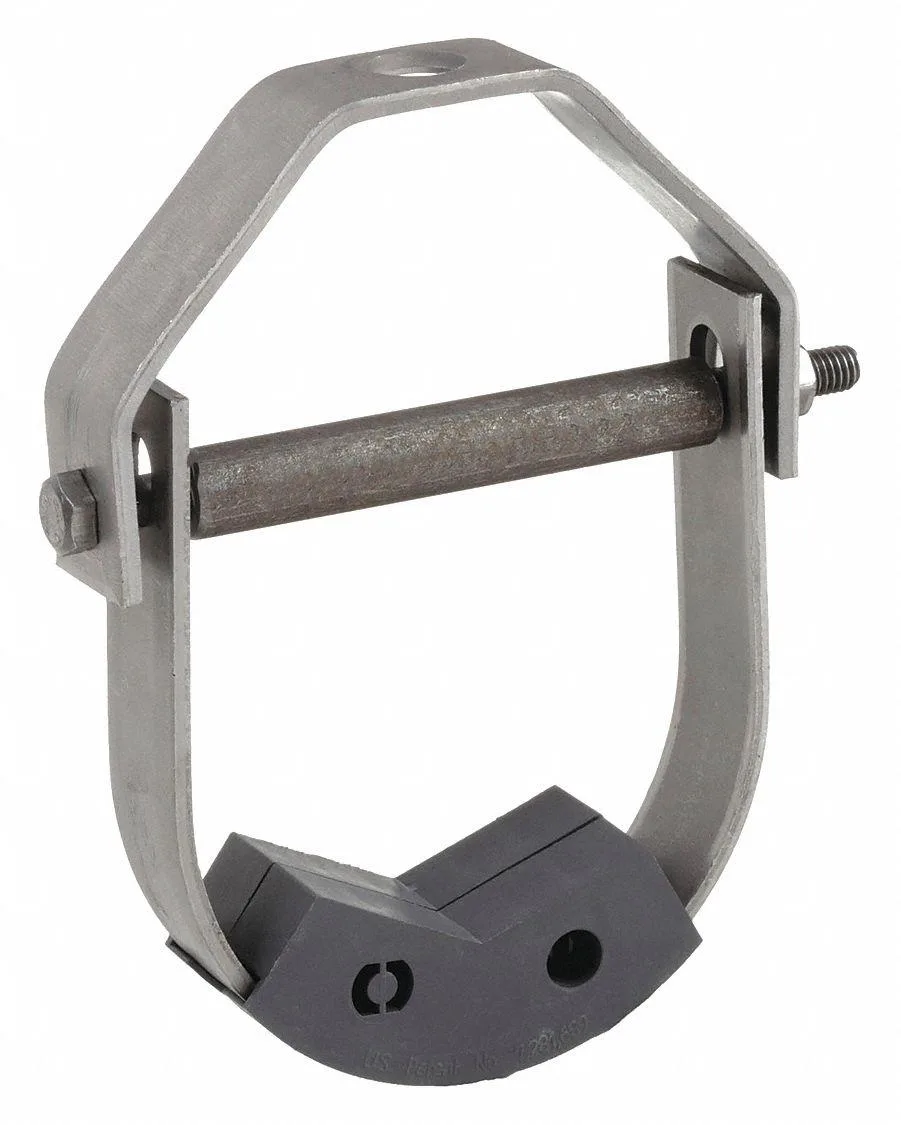

Anvil clevis hanger size 3 carbon steel with insulation saddle system

Anvil

Anvil 0500173323 Clevis Hanger Trap Size 3 550 Lb

SKU CH-HSBH-8F4WJ MPN 0500173323

A carbon-steel clevis hanger with an insulation saddle system supports pipe sizes 1/2 to 2 inches and carries a 550 lb maximum load

  • TypeDrain Components
  • MaterialCarbon Steel
  • Supports pipes up to 550 Lb with malleable iron strength
  • Insulation saddle fits 1/2 to 2 In pipe sizes securely
  • ASTM E84 Class 1 25-60 rating confirms fire performance
  • UL E94 VO approval ensures flame resistance
  • Carbon steel construction delivers lasting durability for plumbing systems

Anvil Clevis Hanger Size 3

The Anvil 0500173323 is a carbon steel clevis hanger built for pipe sizes from 1/2 to 2 inches. It includes an insulation saddle system designed for insulation thickness of 1/2 to 1 inch and insulation OD of 1 to 2 inches. The hanger has an overall length of 6 1/2 inches and suits commercial and residential piping installations.

Thermals Noise and Power

This mechanical support component does not consume power, generate heat or produce noise during operation. Its carbon steel construction provides structural stability without active cooling requirements. The product meets ASTM E84 Class 1 25-60 rating and UL E94 VO standards for fire performance and flammability.

Build Fit and Clearance

The hanger supports a maximum load of 550 Lb and fits pipes ranging from 1/2 to 2 inches. It requires compatible mounting hardware and structural attachment points not included with the unit. Installers must verify that the insulation dimensions fall within the 1/2 to 1 inch thickness and 1 to 2 inch OD range for proper saddle engagement.

Highlights

  • Supports pipes up to 550 Lb with malleable iron strength
  • Insulation saddle fits 1/2 to 2 In pipe sizes securely
  • ASTM E84 Class 1 25-60 rating confirms fire performance
  • UL E94 VO approval ensures flame resistance
  • Carbon steel construction delivers lasting durability for plumbing systems

Specifications

TypeDrain Components
MaterialCarbon Steel
BrandAnvil
Model0500173323

Questions about this item

How do I install the clevis hanger with the insulation saddle system, and what step is often missed?

Attach the hanger to the support structure, place the pipe in the saddle, then tighten the bolt to clamp the insulation saddle around the pipe; the missed step is securing the insulation saddle so it grips the insulation thickness of 1/2 to 1 inch.

What maintenance or replacement will this carbon steel clevis hanger need over time?

Inspect the carbon steel body and bolt for corrosion or loosening; replace the hanger if the malleable iron components show cracking or if the ASTM E84 Class 1 25-60 rating is compromised by damage.

What limit appears first when this hanger carries a continuous 550 Lb load?

The maximum load rating of 550 Lb is the first limit; sustained loading at this level can cause permanent deformation of the malleable iron or bolt stretch beyond the UL E94 VO approval.
