Anvil 0318901402 2 in Class 300 Malleable Iron Cap FNPT

Anvil Class 300 Malleable Iron Cap

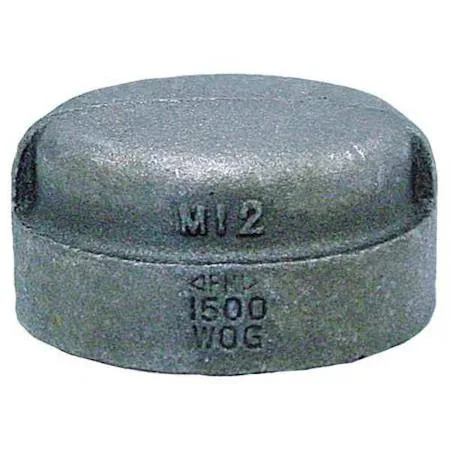

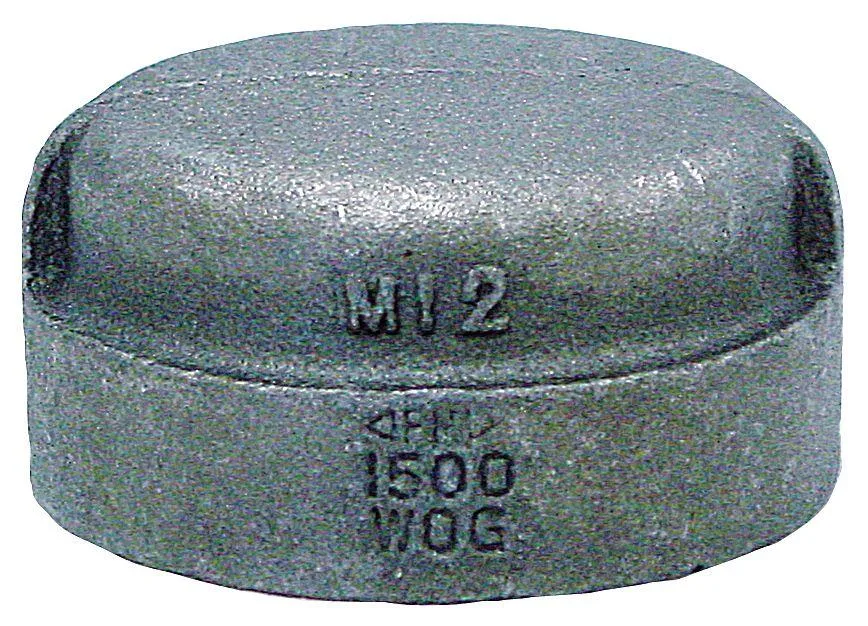

This Anvil 0318901402 cap is a 2-inch pipe fitting made from malleable iron. It carries a Class 300 pressure rating and uses an FNPT threaded connection. The component is designed for drain and trap assemblies in plumbing systems. It meets ASME B 16.3 standards and holds AAR, FM, and UL approvals.

FNPT Threaded Connection for Drain Systems

The cap threads onto a male NPT pipe end to seal a 2-inch drain line. Its malleable iron construction handles a maximum pressure of 1500 psi at 150 degrees Fahrenheit. It also withstands saturated steam pressure of 300 psi at 550 degrees Fahrenheit. No welding or soldering is required for installation.

Temperature Range and Pressure Performance

The fitting operates across a temperature range of -20 degrees to 550 degrees Fahrenheit. It maintains its Class 300 rating throughout this span for steam and water service. The malleable iron body resists cracking under thermal cycling. Approvals confirm compliance with relevant safety standards.
