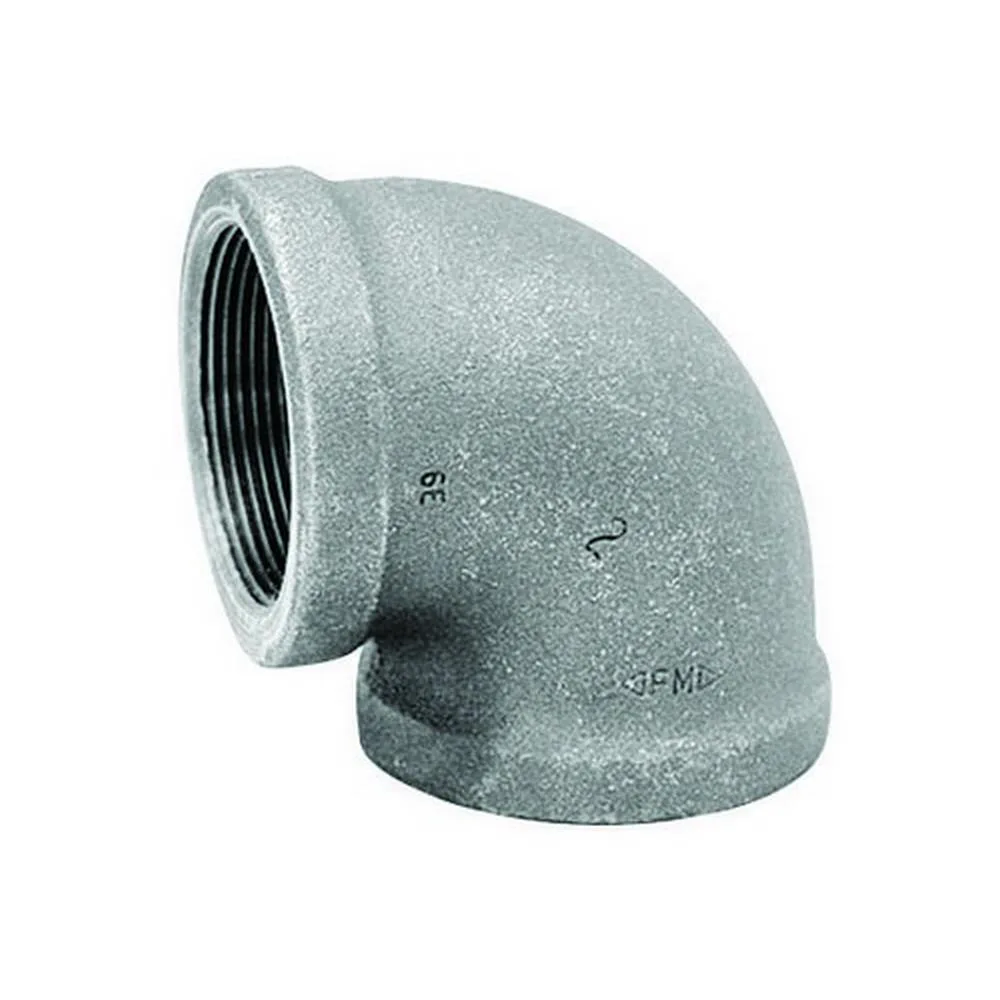

Galvanized malleable iron 90-degree elbow with female NPT threads

Anvil

Anvil 0311001002 3/4" FNPT Galvanized 90 Degree Elbow trap

SKU CH-VTE7-TVK1G MPN 0311001002

A galvanized malleable-iron 90-degree elbow with 3/4" FNPT ends, rated Class 150 for Schedule 40 pipe at 300 psi maximum operating pressure

  • TypeDrain Components
  • Galvanized coating resists corrosion for long service life
  • 90-degree elbow redirects flow in tight piping runs
  • 3/4-inch FNPT threads connect directly to Schedule 40 pipe
  • Class 150 rating handles 300 psi at 150 °F
  • Malleable iron construction provides strength for demanding installations

Anvil 3/4" Galvanized Elbow Trap

The Anvil 0311001002 is a malleable iron fitting with a galvanized finish for corrosion resistance. It connects two sections of 3/4 inch female NPT pipe at a 90 degree angle. The component is rated for Schedule 40 piping systems in plumbing and industrial applications.

Class 150 Rating and 300 psi Limit

This elbow handles working pressures up to 300 psi at temperatures reaching 150 degrees Fahrenheit. The Class 150 designation suits standard water, air and oil lines within those bounds. It is not intended for high-pressure steam or services exceeding the stated pressure and temperature ceiling.

Silver Galvanized Surface

The zinc coating provides a silver appearance and protects the iron substrate from rust in damp environments. No gaskets, sealant or additional hardware are included with the fitting. Installers must supply thread tape or pipe compound compatible with the service media.

Highlights

  • Galvanized coating resists corrosion for long service life
  • 90-degree elbow redirects flow in tight piping runs
  • 3/4-inch FNPT threads connect directly to Schedule 40 pipe
  • Class 150 rating handles 300 psi at 150 °F
  • Malleable iron construction provides strength for demanding installations

Specifications

TypeDrain Components
BrandAnvil
Model0311001002

Questions about this item

Will the 3/4" FNPT threads on this Anvil 0311001002 elbow match the Schedule 40 galvanized pipe I already have installed?

Yes, the elbow is made for Schedule 40 pipe and uses 3/4" FNPT threads on both ends, so it will thread directly onto existing Schedule 40 galvanized pipe of the same size.

How can I confirm the 90-degree elbow is seated correctly after I thread it onto the pipe?

After tightening, the two female ports should sit at a precise 90-degree angle to each other with no visible gap at the threads; a pressure test up to the 300 psi rating at 150 °F will verify a leak-free seal.

Does the Anvil 0311001002 come with any sealant, gaskets or pipe sections, or do I need to buy those separately?

The box contains only the single malleable iron galvanized Class 150 elbow; thread sealant, tape, gaskets and any pipe lengths must be purchased separately.
