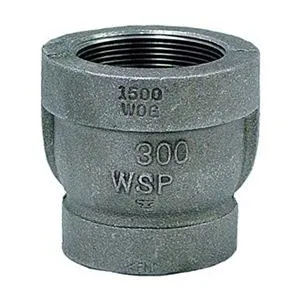

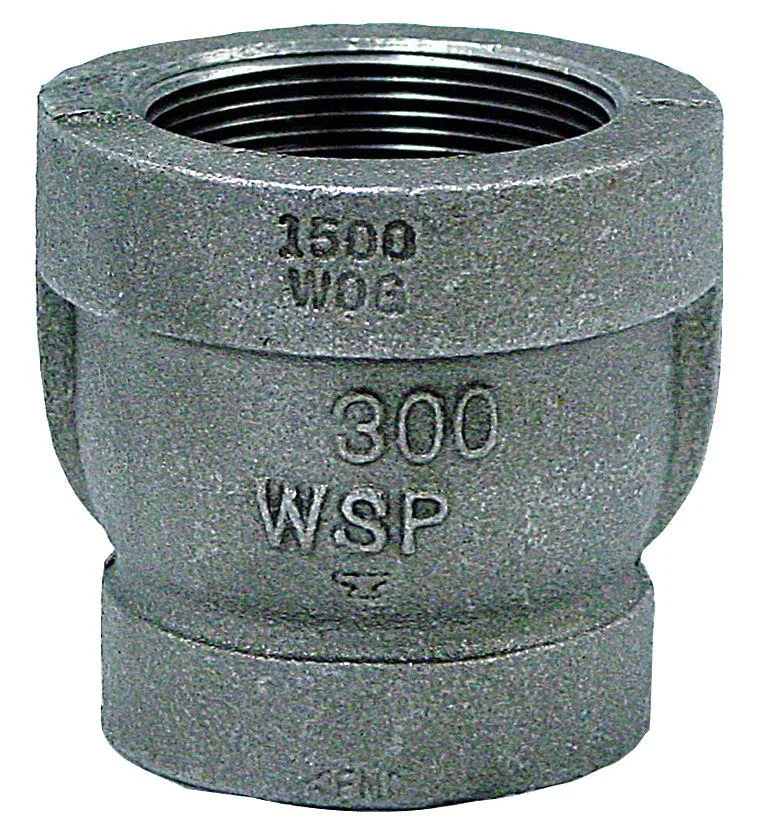

Anvil 0310542204 3/4 x 1/4 Reducer Coupling

Anvil 3/4 x 1/4 Reducer Coupling

This malleable iron reducer coupling joins a 3/4 inch FNPT pipe to a 1/4 inch FNPT pipe in drainage and trap installations. It is built to Class 300 specifications and carries AAR, FM and UL approvals along with ASME B 16.3 compliance. The fitting suits plumbing professionals and maintenance crews who need a durable, code-compliant transition between dissimilar pipe sizes. It operates reliably across a temperature range of -20 to 550 degrees Fahrenheit.

Malleable Iron Build and FNPT Threads

The Class 300 malleable iron body withstands 2000 psi at 150 degrees Fahrenheit and 300 psi saturated steam pressure at 550 degrees Fahrenheit. Female National Pipe Taper threads on both ends create a tight, leak-resistant seal when assembled with compatible pipe nipples or fittings. The robust material resists cracking and deformation under thermal cycling and mechanical stress. No additional sealing compounds are mandated by the listed standards.

Upgrade from Lower-Class or Unapproved Fittings

This coupling replaces Class 150 or unlisted reducers where higher pressure ratings or specific certifications are required by code or insurer. The jump is worth it when system pressure approaches 2000 psi, when steam service at 300 psi is present, or when AAR, FM or UL listing is specified for the project. Installations that remain within lower pressure and temperature limits may not need this rating.
