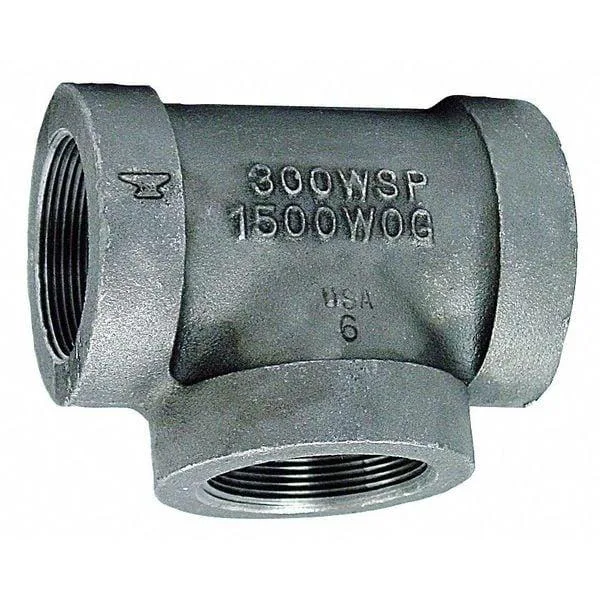

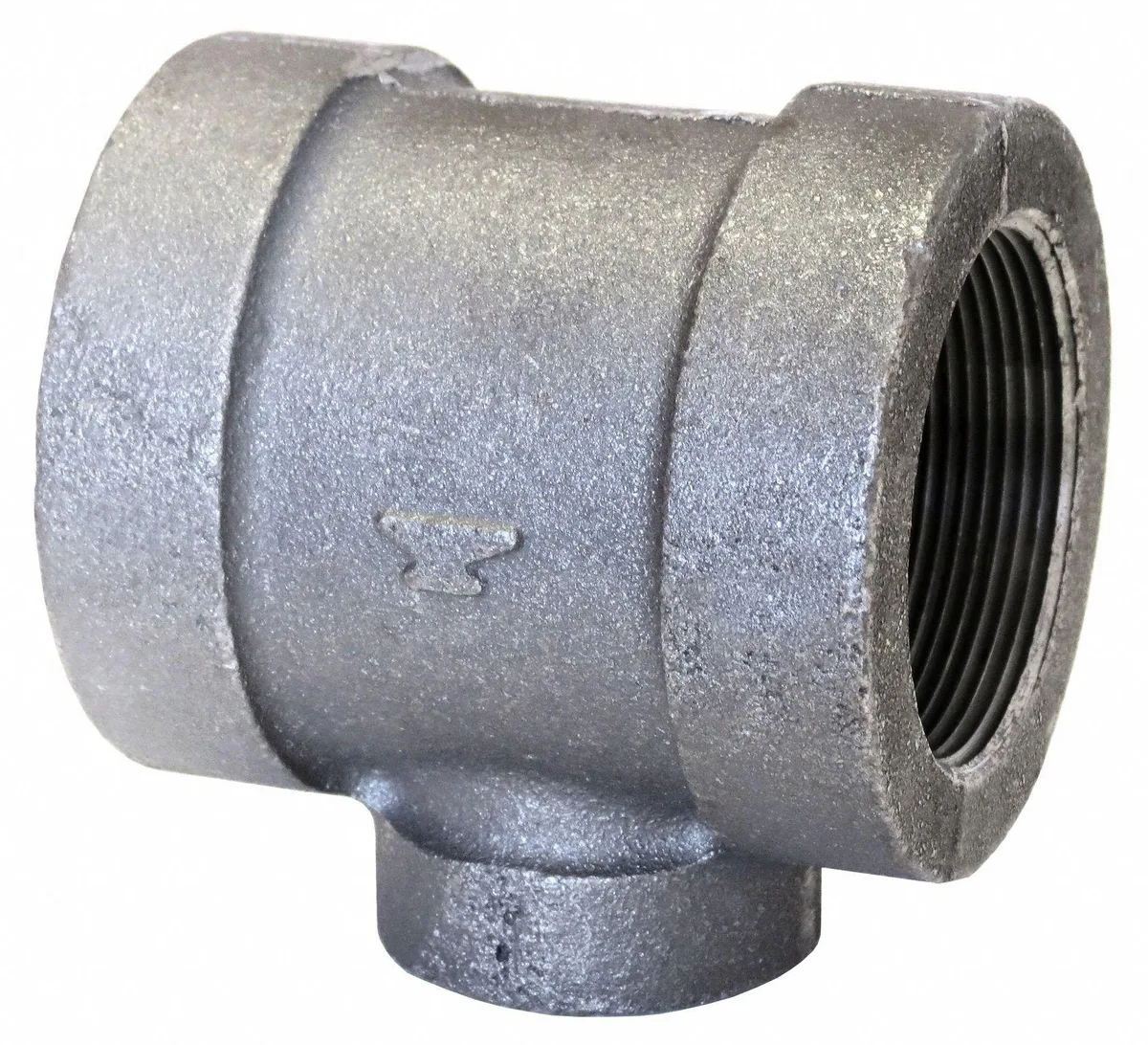

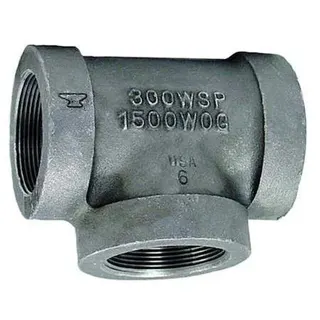

Malleable iron reducing tee, three FNPT outlets, matte dark finish

Anvil

Anvil 0310525407 Malleable Iron Reducing Tee Class 300 trap

SKU CH-WT63-V3WYW MPN 0310525407

Malleable iron reducing tee connects 2 in, 2 in and 1 1/4 in FNPT pipes, rated 1500 psi at 150 °F and 300 psi saturated steam at 550 °F, meeting ASME B16.3 with UL, FM and AAR approvals

  • TypeDrain Components
  • MaterialHAWA
  • Malleable iron construction handles 1500 psi at 150 °F
  • Class 300 rating supports 300 psi saturated steam at 550 °F
  • Operates from -20 °F to 550 °F for wide temperature range
  • FNPT threaded connections enable quick installation without welding
  • Meets ASME B16.3 with AAR, FM and UL approvals

Anvil Malleable Iron Reducing Tee Class 300

This Anvil 0310525407 reducing tee connects three pipe sections in a T configuration with a 2 in x 2 in x 1 1/4 in FNPT layout. It is built from malleable iron rated to Class 300 for demanding plumbing and industrial piping systems. The fitting meets ASME B 16.3 and carries AAR, FM and UL approvals.

Standards and pressure ratings define the use case

AAR and FM approvals plus UL listing confirm suitability for regulated piping installations. The design handles saturated steam at 300 psi and 550 Degrees F and a maximum pressure of 1500 psi at 150 Degrees F. The operating temperature range spans -20 to 550 Degrees F.

Capacity and headroom for high-pressure steam

The Class 300 malleable iron body comfortably handles saturated steam service at 300 psi and 550 Degrees F as well as cold-water pressure up to 1500 psi. It is not suited for applications that exceed these pressure or temperature limits or that require a different pipe size or connection type.

Highlights

  • Malleable iron construction handles 1500 psi at 150 °F
  • Class 300 rating supports 300 psi saturated steam at 550 °F
  • Operates from -20 °F to 550 °F for wide temperature range
  • FNPT threaded connections enable quick installation without welding
  • Meets ASME B16.3 with AAR, FM and UL approvals

Specifications

TypeDrain Components
MaterialHAWA
BrandAnvil
Model0310525407

Questions about this item

Will the malleable iron body or FNPT threads need periodic replacement under normal service?

The malleable iron construction and FNPT threads are rated for the full temperature range of -20 to 550 °F and meet ASME B16.3, so no scheduled replacement is required.

What pressure limit is reached first during sustained high-temperature operation?

At 550 °F saturated steam the fitting is limited to 300 psi, which is lower than the 1500 psi rating at 150 °F.

How much heat does the tee radiate when carrying steam at 550 °F all day?

The fitting itself generates no heat; it simply conducts the fluid temperature, so surface temperature will approach 550 °F during continuous steam service.
