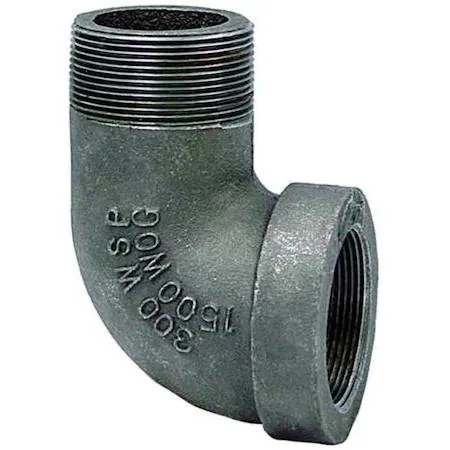

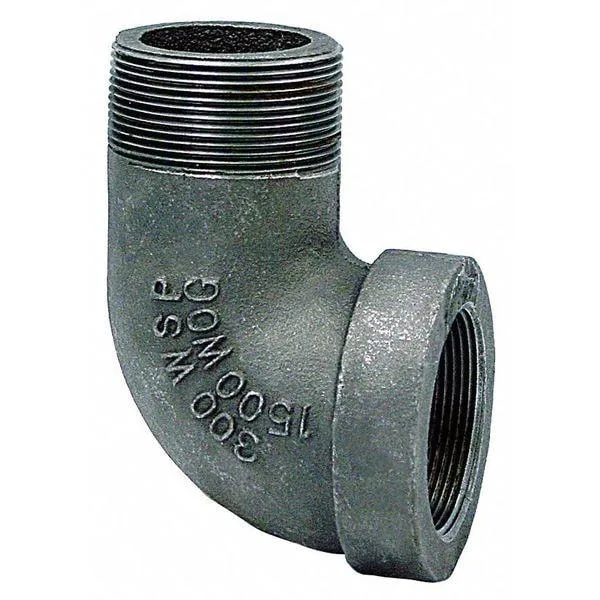

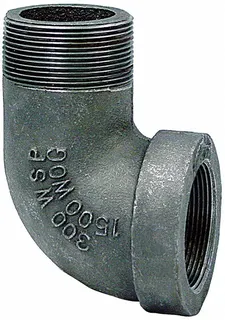

Two-inch malleable iron 90-degree street elbow with threaded ends

Anvil

Anvil 0310508809 2" Malleable Iron 90° Street Elbow

SKU CH-7FPN-VY5TT MPN 0310508809

A 2-inch malleable iron street elbow with 90-degree FNPT by MNPT threads, rated for 1500 psi at 150 degrees F and 300 psi saturated steam at 550 degrees F, meeting ASME B16.3 with AAR.

  • TypeDrain Components
  • 90° street elbow redirects flow in tight plumbing runs
  • Malleable iron body rated to 1500 psi at 150 °F for high-pressure service
  • FNPT x MNPT threads connect directly without extra couplings
  • UL listed, FM approved and ASME B16.3 compliant for code acceptance
  • Operates from -20 °F to 550 °F covering steam and chilled water systems

2-inch Malleable Iron Street Elbow

This 2-inch malleable iron street elbow provides a 90-degree change of direction in piping systems. It is designed for use in plumbing and industrial installations where a male-to-female threaded connection is required. The fitting meets ASME B16.3 standards and carries AAR, FM and UL approvals for code-compliant work.

Class 300 rated FNPT by MNPT connection

The fitting features a female NPT inlet and a male NPT outlet, allowing direct assembly to threaded pipe or other fittings without an extra nipple. Malleable iron construction handles a maximum pressure of 1500 psi at 150 degrees Fahrenheit and saturated steam pressure of 300 psi at 550 degrees Fahrenheit. Operating temperature range spans -20 to 550 degrees Fahrenheit.

Verify thread standard

Confirm that your system uses NPT threads and requires a Class 300 fitting rated for the design pressure and temperature. The 2-inch pipe size must match the existing piping exactly. This elbow is not suitable for applications exceeding the listed pressure or temperature limits.

Highlights

  • 90° street elbow redirects flow in tight plumbing runs
  • Malleable iron body rated to 1500 psi at 150 °F for high-pressure service
  • FNPT x MNPT threads connect directly without extra couplings
  • UL listed, FM approved and ASME B16.3 compliant for code acceptance
  • Operates from -20 °F to 550 °F covering steam and chilled water systems

Specifications

TypeDrain Components
BrandAnvil
Model0310508809

Questions about this item

What pressure does the Class 300 malleable iron rating cap at for saturated steam?

The fitting is rated for 300 psi saturated steam pressure at 550 degrees Fahrenheit.

What thread combination does the 2 inch street elbow use for connection?

It connects with FNPT on one end and MNPT on the other, both sized at 2 inches.

How should the 90 degree elbow be installed to avoid damaging the malleable iron threads?

Apply thread sealant to the male threads, hand-tighten, then use a wrench for one to two additional turns without over-tightening.
