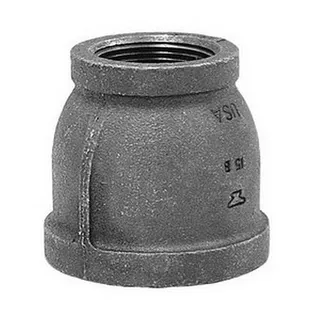

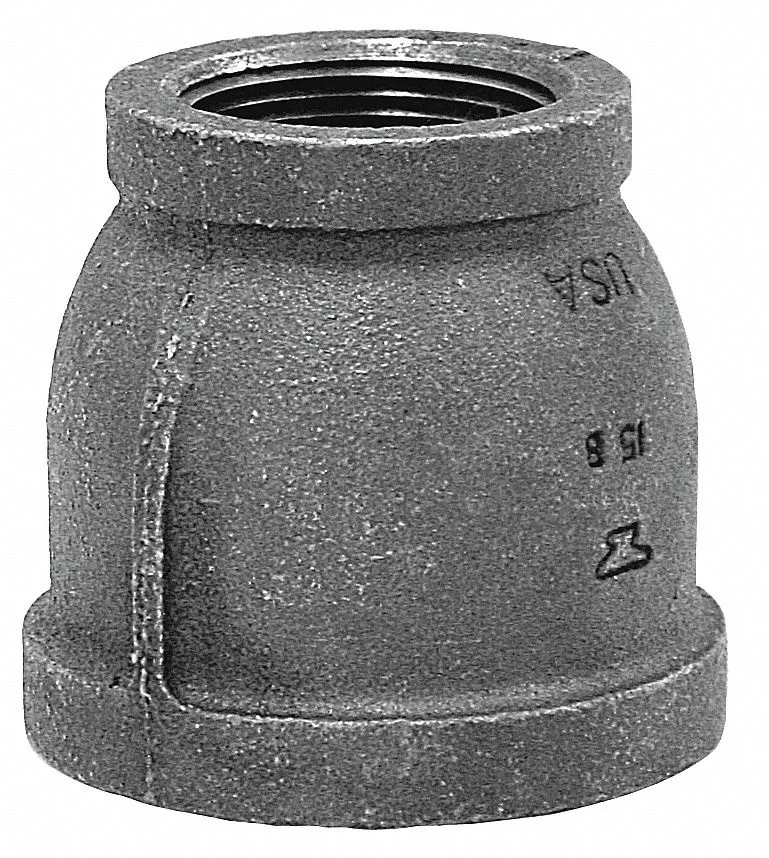

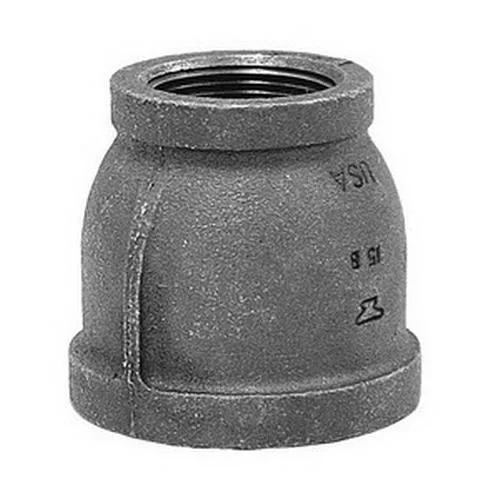

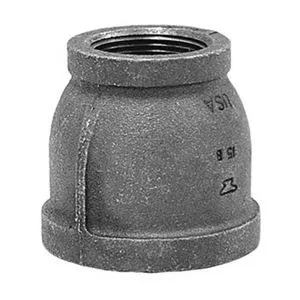

Malleable iron reducer coupling, 1-1/2 by 1 inch FNPT, dark metal finish

Anvil

Anvil 0310088406 1-1/2" x 1" Malleable Iron Reducer Coupling trap

SKU CH-KWKW-35M9T MPN 0310088406

Malleable iron reducer coupling connects 1-1/2 inch to 1 inch FNPT threads, rated 300 psi at 150 degrees F and 150 psi saturated steam at 350 degrees F

  • TypeDrain Components
  • Connects 1-1/2" to 1" pipe with FNPT threads
  • Malleable iron body rated for 300 psi at 150 °F
  • Handles saturated steam up to 150 psi at 350 °F
  • Operates from -20 °F to 350 °F continuous
  • Meets ASME B16.3 and UL/FM approvals

Malleable Iron Reducer Coupling

This Anvil reducer coupling joins 1-1/2 inch and 1 inch FNPT pipe ends in drainage systems. The Class 150 malleable iron body handles saturated steam up to 150 psi at 350 Degrees F and water pressure up to 300 psi at 150 Degrees F. It meets ASME B 16.3 and carries UL and FM approvals for code-compliant installations.

Suitable Installations and Limits

The fitting suits hot and cold water, steam and compressed air lines within the rated pressure and temperature range of -20 to 350 Degrees F. Installers needing larger step-down sizes, different thread types or higher pressure classes must select alternative fittings. It is not intended for applications exceeding the stated pressure or temperature limits.

Critical Sizing and Rating

The connection is defined by the 1-1/2 in x 1 in FNPT sizing and the Class 150 pressure rating of 300 psi at 150 Degrees F. Verify that both pipe ends match these dimensions and that the system design stays within the maximum saturated steam pressure of 150 psi at 350 Degrees F.

Highlights

  • Connects 1-1/2" to 1" pipe with FNPT threads
  • Malleable iron body rated for 300 psi at 150 °F
  • Handles saturated steam up to 150 psi at 350 °F
  • Operates from -20 °F to 350 °F continuous
  • Meets ASME B16.3 and UL/FM approvals

Specifications

TypeDrain Components
BrandAnvil
Model0310088406

Questions about this item

What size pipe threads does the 1-1/2" x 1" malleable iron reducer coupling accept?

The coupling has FNPT threads for 1-1/2 inch and 1 inch pipe sizes, meeting ASME B 16.3 dimensions.

Which sealing method is recommended when installing this Class 150 malleable iron fitting?

Apply PTFE tape or pipe dope to the male threads before tightening; over-tightening can crack the iron body.

How often should the coupling be inspected if it carries saturated steam at 150 psi?

Inspect joints annually for leaks or corrosion; the malleable iron is rated to 350 °F and 150 psi saturated steam.
